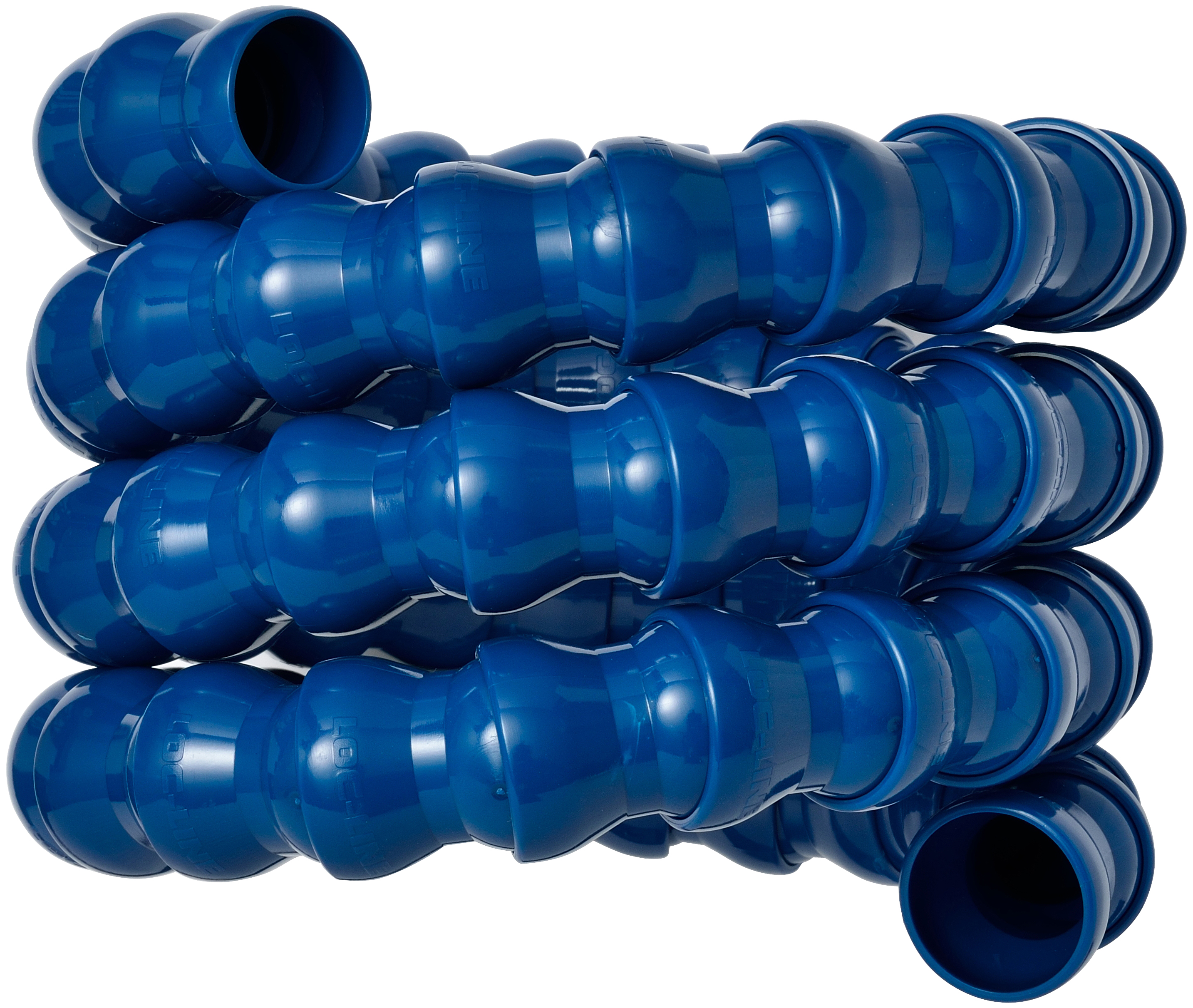

LOC-LINE 69539 3/4" - 5 Foot Coil for 3/4" System

Description

LOC-LINE 69539 3/4" - 5 Foot Coil

Material Properties: Acetal

  • Chemical Compatibility:
  • Yes:  Acetone, Alcohol, Ethyl, Greases, Oils, Commercial Dish Detergents, Gasoline, Lacquer Solvents, Sodium Hydroxide
  • No:  Chlorine, Acids, Ammonium Hydroxide, Bases Strong, Hypochlorite Ion Solutions, Sodium Hypochlorite
  • Melting Point:  329F
  • Maximum Operating Temperature:  170F (Repeated exposure to this temperature will cause fatigue)
  • Recommended Maximum Line Pressure & Flow Rates:
  • 1/4" System:  50 psi - 250 gph or (110 psi - 500 gph W/ Element Clamps)
  • 1/2" System:  30 psi - 475 gph or (60 psi - 950 gph W/ Element Clamps)
  • 3/4 System:  20 psi 1,140 gph  or  (40 PSI 2,280 gph W/ Element Clamps)
  • Acetal Copolymer in accordance with the rules in 21CFR 177.2470 meets the requirements of this regulation for food contact.
  • All colorants are used at the recommended let-down ratio to meet 21CRF 178.3297.
  • Loc-Line is not sanctioned for use with alcoholic or fatty foods at any temperature.
  • This material meets NSF International Standards 14, 51 and 61 for contact with potable water
  • Please note that all applications have variables and conditions that will affect the maximum working pressures. Testing suitability for your application is always recommended.
  • Lockwood Products Inc. does not warrant any particular application for it's products.
Product form

LOC-LINE 69539 3/4" - 5 Foot Coil Material Properties: Acetal Chemical Compatibility: Yes:  Acetone, Alcohol, Ethyl, Greases, Oils, Commercial Dish... Read more

SKU: 1007365
Barcode: 662633695390

Vendor Part #: 69539

3 in stock

$52.64

  • Fast & reliable fulfillment
  • Easy to contact customer support
  • Easy returns on defective items

Description

LOC-LINE 69539 3/4" - 5 Foot Coil

Material Properties: Acetal

  • Chemical Compatibility:
  • Yes:  Acetone, Alcohol, Ethyl, Greases, Oils, Commercial Dish Detergents, Gasoline, Lacquer Solvents, Sodium Hydroxide
  • No:  Chlorine, Acids, Ammonium Hydroxide, Bases Strong, Hypochlorite Ion Solutions, Sodium Hypochlorite
  • Melting Point:  329F
  • Maximum Operating Temperature:  170F (Repeated exposure to this temperature will cause fatigue)
  • Recommended Maximum Line Pressure & Flow Rates:
  • 1/4" System:  50 psi - 250 gph or (110 psi - 500 gph W/ Element Clamps)
  • 1/2" System:  30 psi - 475 gph or (60 psi - 950 gph W/ Element Clamps)
  • 3/4 System:  20 psi 1,140 gph  or  (40 PSI 2,280 gph W/ Element Clamps)
  • Acetal Copolymer in accordance with the rules in 21CFR 177.2470 meets the requirements of this regulation for food contact.
  • All colorants are used at the recommended let-down ratio to meet 21CRF 178.3297.
  • Loc-Line is not sanctioned for use with alcoholic or fatty foods at any temperature.
  • This material meets NSF International Standards 14, 51 and 61 for contact with potable water
  • Please note that all applications have variables and conditions that will affect the maximum working pressures. Testing suitability for your application is always recommended.
  • Lockwood Products Inc. does not warrant any particular application for it's products.
