Expanded long travel round nose plungers are ideal for high-speed, long-life applications. They are easily inserted, adjusted and removed with a standard wrench from plunger end. The slotted plunger body on this long travel plunger allows for blind hole installation.
Typical Uses
Positioning
Indexing
Ejecting
With Thread Lock
Latching
Detents
Contacts
Lifters
Insulators
Special Features
Impact resistance
Choice of spring forces
10mm to 24mm
Choice of with or without locking elements
Vlier’s precisely engineered mechanical components include our socket set swivel pad clamps, which provide maximum support and rigidity. They’re ideal for use in limited spaces and securely hold parts with off-angle surfaces without any surface marring or damage.
Our socket set swivel pad clamps are offered in either steel with black oxide finish or stainless steel. Both models offer an optional Delrin® pad, which eliminates surface damage when clamping together soft materials and helps reduce distortion.
Typical Uses
Vlier swivel pads clamp parts with uneven, round or angled surfaced areas in applications like cutting, grinding or machining for manufacturing. This provides evenly distributed clamping pressure that prevents damage to the surface area or to the part itself.
Special Features
Flat-tipped design
Pad swivels 7.5° off centerline in all directions
Large, flat pad face ensures tight clamping
Pad designed to pass through tapped hole
Conical seat distributes uniform pressure in clamping
Heat-treated steel alloy for long life
Steel model features black oxide finish
Stainless steel model offers added protection against rust and corrosion
Delrin® or steel pad
Vlier Steel/Stainless or Steel/Stainless with Delrin® Toggle Pads
Vlier Steel/Stainless or Steel Stainless with Delrin Pad Toggle Pads solidly clamp parts with uneven or off-angle surfaces. Self-aligning and self leveling with a 15° angle of movement from center for pad seating against work piece surface with applied force. Eliminates clamp slippage. Delrin pads avoid damage to soft metals, polished surfaces or other finishes. Stainless steel models offer extra protection against rust and corrosion.

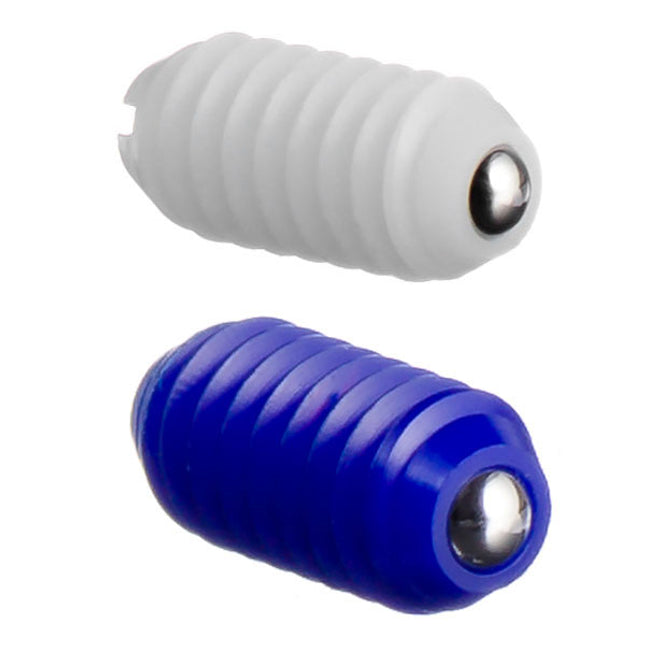

Delrin® ball plungers with stainless steel or nylon plastic ball are ideal for applications where products or components are made mostly or entirely of plastic.
Typical Uses
Lightweight applications
Special Features
Steel or stainless steel body with nylon ball
Electrical isolation
Highly durable & non-marring
Steel – zinc plate with black, gold or clear chromate
Stainless steel spring standard
Compact & lightweight
Withstands side loading
Controlled end forces

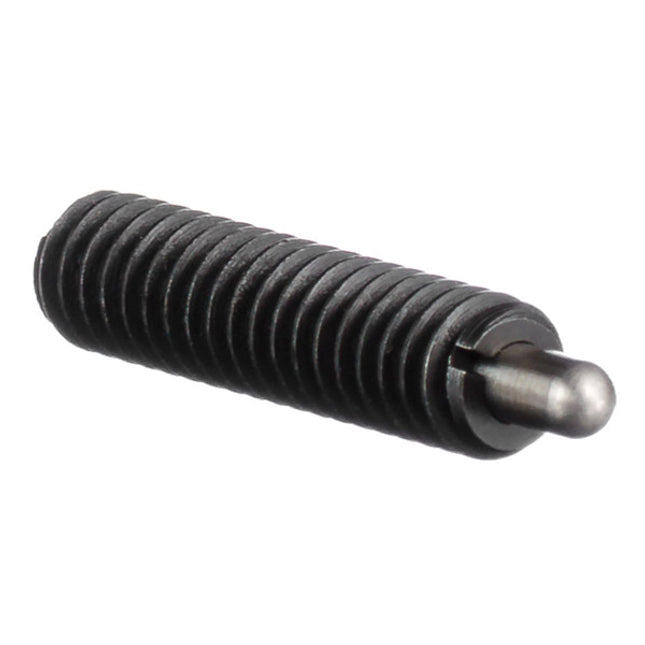

Standard spring plungers offer long travel, large bearing surfaces and numerous material and design options including an optional locking element.
Typical Uses
Positioning
Indexing
Ejecting
With Thread Lock
Latching
Detents
Contacts
Lifters
Insulators

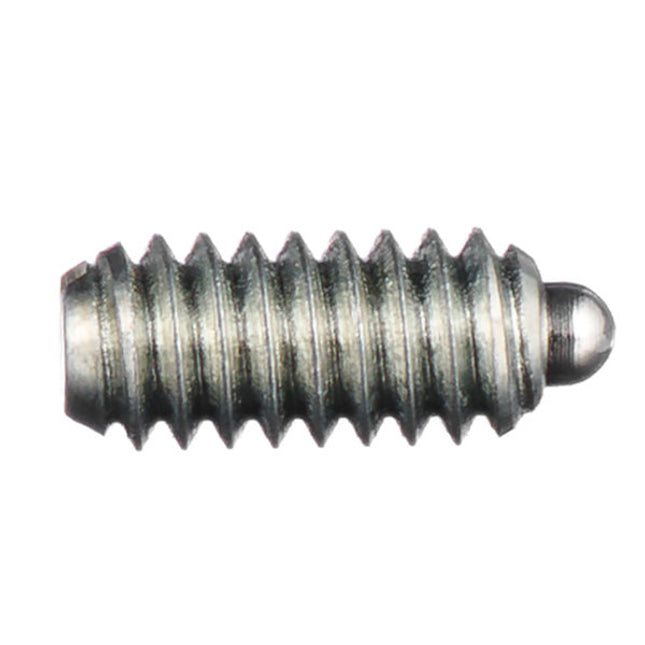

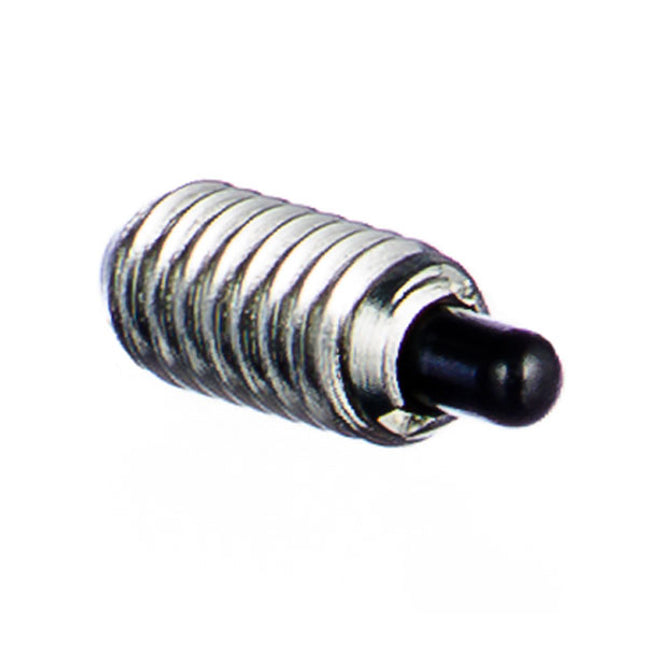

Extended travel stubby plungers offer maximum travel. These compact spring plungers provide the same travel as our standard plunger while using the same body size as our stubby plunger.
Typical Uses
Limited space
Indexing
Electrical contacts
Part positioning
With Thread Lock
Detents
Special Features
Case hardened plunger
Wear & corrosion resistance
Compact size
Allows some side loading
Extended travel
Screwdriver installation

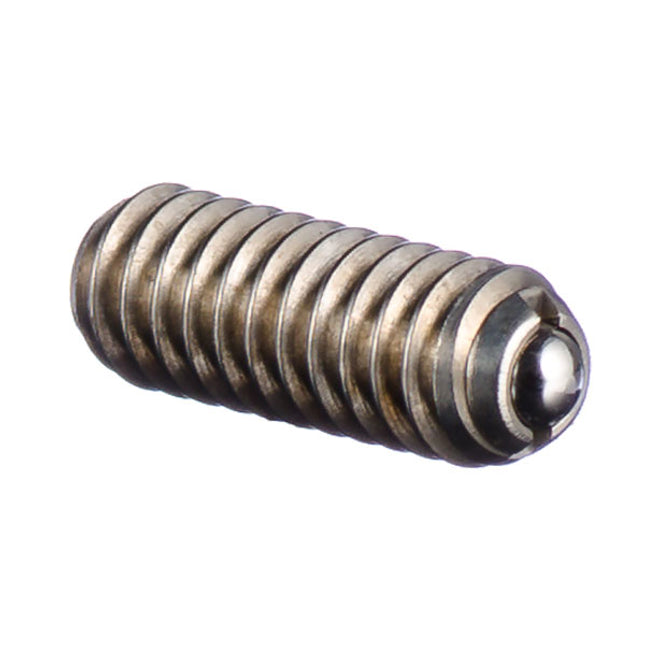

The enhanced design of our Posi-HexTM ball plunger allows for easy installation, removal or change-outs using only a hex wrench. Designed to withstand maximum installation torque, Posi-HexTM works great when using our thread locking element.
The stainless steel construction offers maximum protection against corrosion and is ideal for food, medical and special environments. With eight different sizes in both steel and stainless steel, Vlier has the right part for the job.
Typical Uses
Indexing
Locating
Detents
Positioning
Electrical contacts
Adjustable set screw
Special Features
Easy installation with a hex wrench
Will withstand high torque
Controlled end forces
Ideal for food, medical & special environments

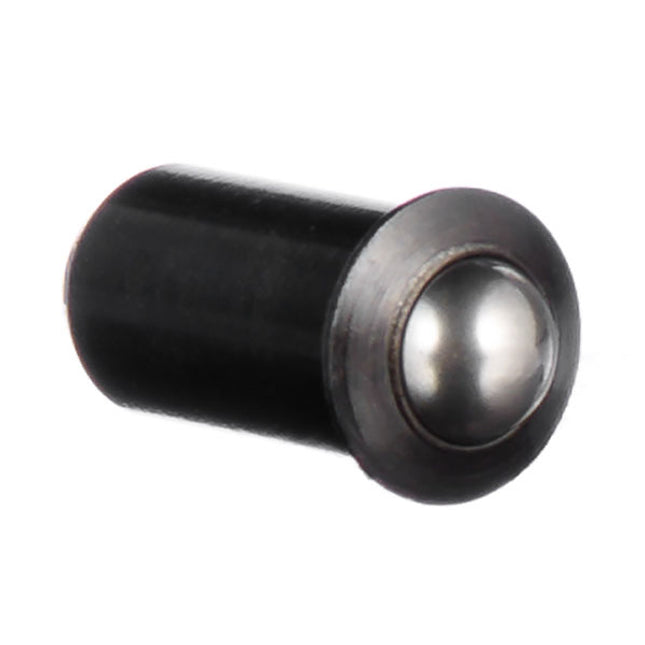

Push-fit ball plungers are designed for easy installation into wood, soft plastic or aluminum. Ideal where a threaded spring plunger is impractical or when threaded adjustments are not required.
The stainless steel variety offers the added benefit of maximum protection against rust and corrosion.
Typical Uses
Securing
Indexing
Locating
Positioning
Electrical insulator
Electrical contact
Special Features
Easy installation
No thread adjustment
Stainless steel resists corrosion
Stainless steel withstands high temperatures
These commercial grade pins are readily available and are offered in the most popular sizes at an economical cost. Your choice of either “T” handle, or button handle, these designs are perfect for manufacturing, medical, vehicle, marine, and many other applications.
Typical Uses
Positive With Thread Lock
Alignment
Locating
Fastening
Special Features
T-Handle design
Handles are black aluminum with brass push button
Shank body is 300 stainless steel
Low cost and available

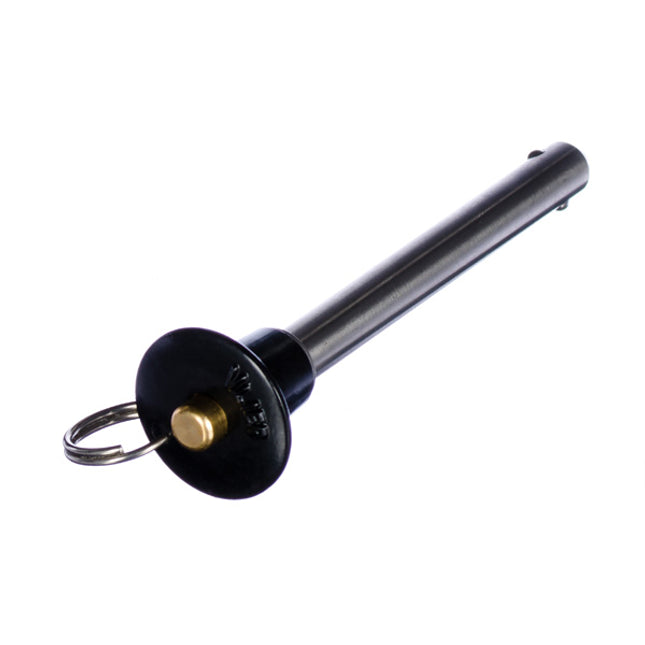

These commercial-grade pins are readily available and are offered in the most popular sizes at an economical cost. These designs are perfect for manufacturing, medical, vehicle, marine and many other applications.
Typical Uses
Material handling equipment
Trailers and rigging equipment
Food & medical applications
Scaffolding and stage equipment
Special Features
Button Handle design
Handles are black aluminum with brass push button
Shank body is 300 stainless steel
Low cost and available
The enhanced design of our Posi-HexTM ball plunger allows for easy installation, removal or change-outs using only a hex wrench. Designed to withstand maximum installation torque, Posi-HexTM works great when using our thread locking element.
The stainless steel construction offers maximum protection against corrosion and is ideal for food, medical and special environments. With eight different sizes in both steel and stainless steel, Vlier has the right part for the job.
Typical Uses
Indexing
Locating
Detents
Positioning
Electrical contacts
Adjustable set screw
Special Features
Easy installation with a hex wrench
Will withstand high torque
Controlled end forces
Ideal for food, medical & special environments

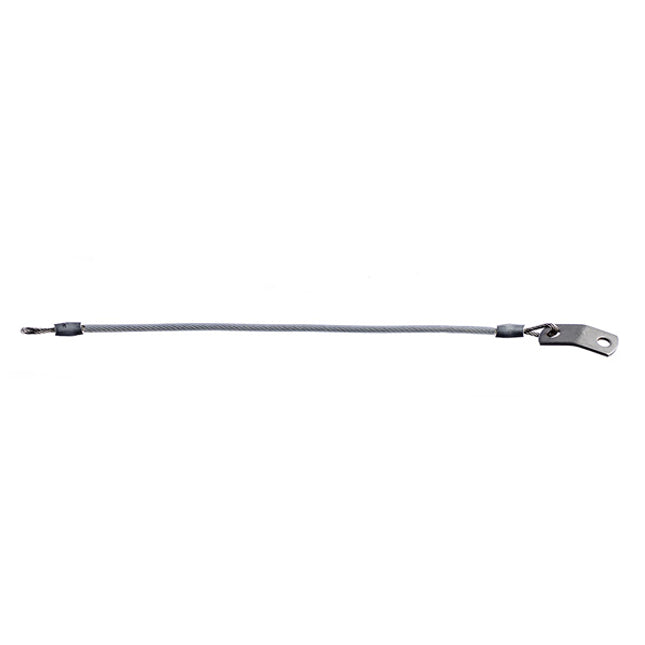

Galvanized or Stainless steel wire (not for lifting) with clear nylon coating and stainless tab and sleeve. Six lengths and four styles to choose from.

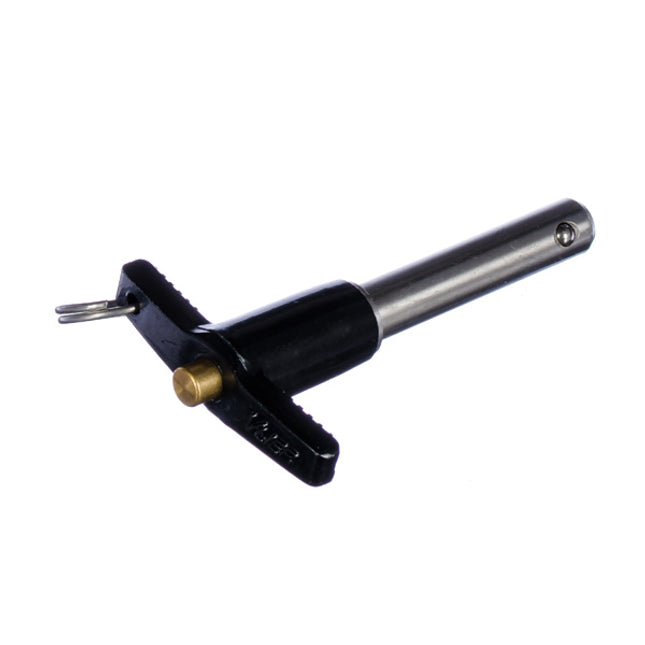

These commercial grade pins are readily available and are offered in the most popular sizes at an economical cost. Your choice of either “T” handle, or button handle, these designs are perfect for manufacturing, medical, vehicle, marine, and many other applications.
Typical Uses
Positive With Thread Lock
Alignment
Locating
Fastening
Special Features
T-Handle design
Handles are black aluminum with brass push button
Shank body is 300 stainless steel
Low cost and available
Standard spring plungers offer long travel, large bearing surfaces and numerous material and design options including an optional locking element.
Typical Uses
Positioning
Indexing
Ejecting
With Thread Lock
Latching
Detents
Contacts
Lifters
Insulators

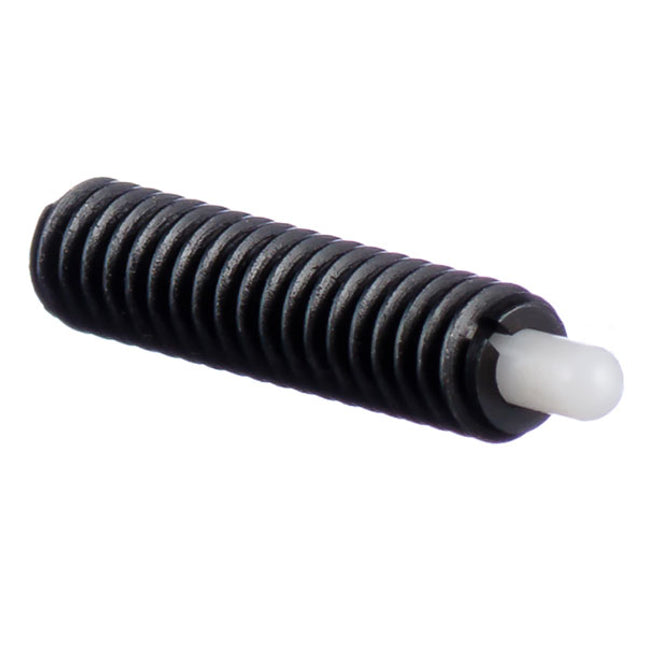

Delrin® Nose standard spring plungers are ideal for use with aluminum, brass or any soft, easily marred material.
Typical Uses
Positioning
Indexing
Ejecting
With Thread Lock
Latching
Detents
Contacts
Lifters
Insulators
Special Features
Insulating Delrin® Nose
Reinforced for minimum deformation under force
High dielectric strength
Wear resistance
Self-lubricating surface
The enhanced design of our Posi-HexTM ball plunger allows for easy installation, removal or change-outs using only a hex wrench. Designed to withstand maximum installation torque, Posi-HexTM works great when using our thread locking element.
The stainless steel construction offers maximum protection against corrosion and is ideal for food, medical and special environments. With eight different sizes in both steel and stainless steel, Vlier has the right part for the job.
Typical Uses
Indexing
Locating
Detents
Positioning
Electrical contacts
Adjustable set screw
Special Features
Easy installation with a hex wrench
Will withstand high torque
Controlled end forces
Ideal for food, medical & special environments

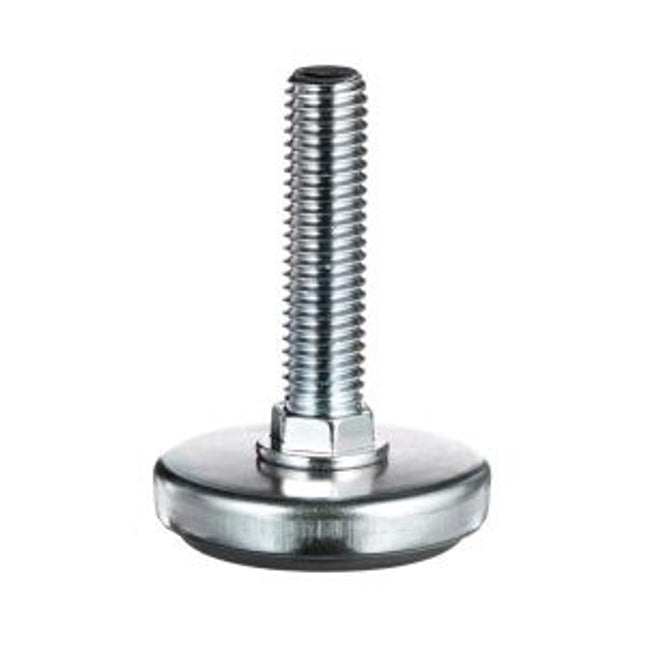

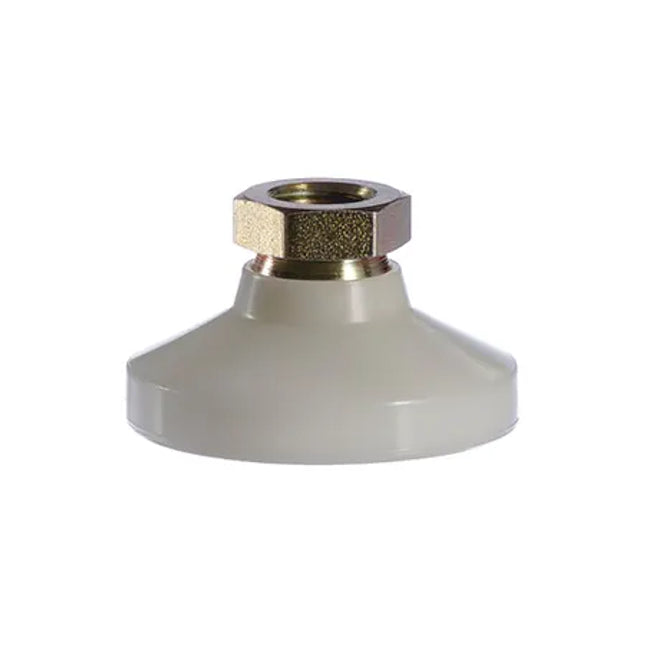

Vlier’s level star series leveling devices are designed for light- and medium-duty applications with options for either a nylon or rubber pad. The rotating stud is ideal for high-volume OED applications, and the zinc-plated, low carbon steel cover shell and stud resist corrosion and provide durability.
The integral hex nut aids load adjustment, and the leveler is available with two pad options. The corrosion-resistant nylon pad allows easy sliding and protects floor and surface finishes. The nylon pad option allows easy sliding and resists water corrosion. The rubber pad option helps prevent skidding. Both pad options protect floor and surface finishes.
Special Features
Non-swivel stud
Zinc-plated, low carbon steel cover shell and stud
Integral hex nut
Nylon or rubber pad

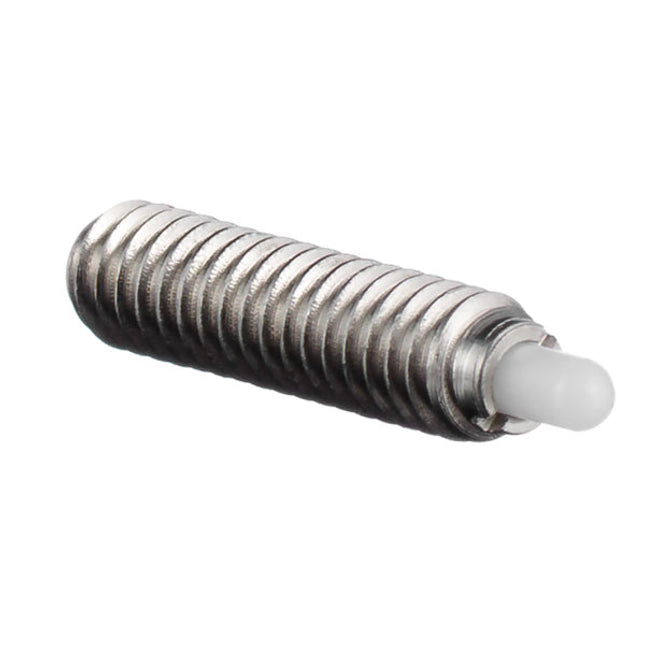

Delrin® Nose standard spring plungers are ideal for use with brass, aluminum, or any soft, easily marred material. The stainless steel design resists corrosion.
Typical Uses
Positioning
Indexing
Ejecting
With Thread Lock
Latching
Detents
Contacts
Lifters
Insulators
Special Features
Insulating Delrin® Nose
Reinforced for minimum deformation under force
High dielectric strength
Wear resistance
Stainless steel resists corrosion
Self-lubricating surface
With Thread Lock T-handle retractable plungers in stainless steel are easily gripped, making them easy to withdraw or engage the plunger. The stainless steel design resists rust and corrosion.
Typical Uses
Positioning
Fastening
Securing
With Thread Lock
Latching
Quick disconnect
Special Uses
Food and medical applications
Special environments
Special Features
T-Handle design
Hand-retractable locking plunger
Withstands side loading
Tapered end for easy alignment
Stainless steel construction
With Thread Lock T-handle retractable plungers in steel can be easily grasped on account of their design, allowing for easy withdrawal and engagement.
Typical Uses
Positioning
Fastening
Securing
With Thread Lock
Latching
Quick disconnect
Special Features
T-Handle design
Hand-retractable non-locking plunger
Withstands side loading
Tapered end for easy alignment
Steel construction
With Thread Lock T-handle retractable plungers in steel can be easily grasped on account of their design, allowing for easy withdrawal and engagement.
Typical Uses
Positioning
Fastening
Securing
With Thread Lock
Latching
Quick disconnect
Special Features
T-Handle design
Hand-retractable non-locking plunger
Withstands side loading
Tapered end for easy alignment
Steel construction
Knurled knob plungers provide a retractable plunger that can be easily withdrawn and reengaged and large hardened bearing surfaces for greater side loading. Their slight end taper makes for easy alignment.
Steel variants are finished in zinc gold chromate.
Typical Uses
Positioning
Fastening
Securing
With Thread Lock
Latching
Quick disconnect
Special Features
Knurled knob design
Hand-retractable locking plunger on locking models
Hand-retractable plunger on non-locking models
Large hardened bearing surface
Non-locking or locking design
Withstands side loading
Unified ANSI and metric threads
Tapered end for easy alignment
Steel and stainless steel models
