CNC Tool Tower for 40 taper tool holders
Individual units are 3′ tall
3 shelves – 24 toolholders per shelf
Nylon inserts protect each tool holder
Sturdy 16 gauge steel construction
Tool Tower should be bolted to the floor for additional security
Casters should never be used on a stacked CNC Tower as this could be extremely dangerous

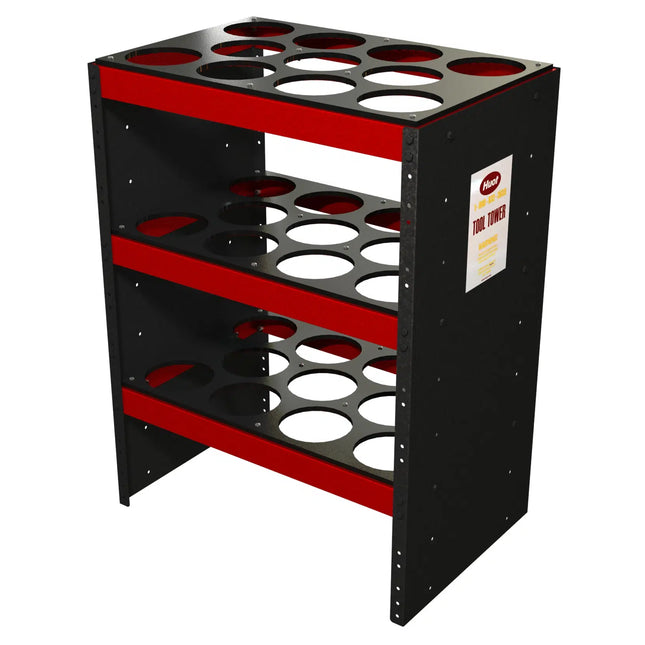

ToolTower for 100MM Quick Change Collets HDPE Pads - 33 Capacity
Individual units are 3′ tall
Comes with 3 shelves
Capacity of 11 100MM Quick Change Collets per shelf; 33 total per ToolTower
Each metal shelf includes a 3/8″ thick HDPE pad that is milled out to hold the collet
Sturdy 16 gauge steel construction with durable epoxy finish
For 100MM Quick Change Collets
Huot ToolTower can be stacked up to 2 high using ToolTower Stacking Kit (SKU 14860)
Tool Tower should be bolted to the floor for additional security
Casters should never be used on a stacked CNC ToolTower as this could be extremely dangerous

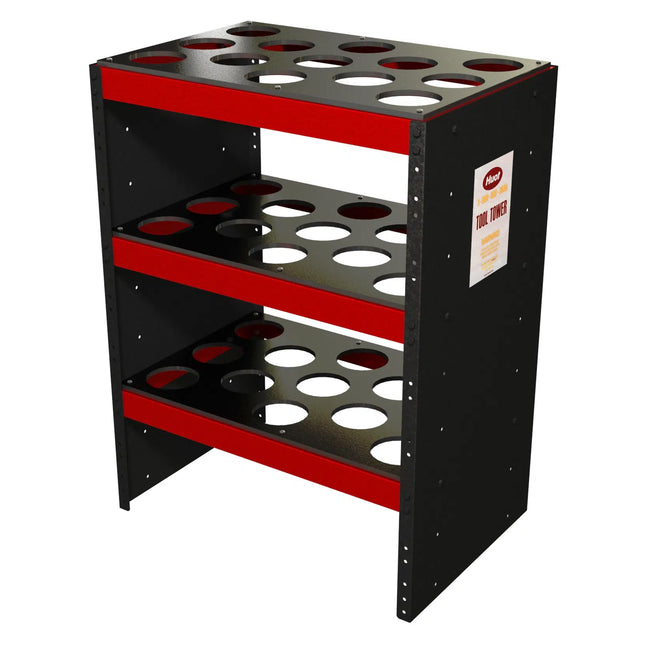

ToolTower for 80MM Quick Change Collets HDPE Pads - 39 Capacity
Individual units are 3′ tall
Comes with 3 shelves
Capacity of 13 80MM Quick Change Collets per shelf; 39 total per ToolTower
Each metal shelf includes a 3/8″ thick HDPE pad that is milled out to hold the collet
Sturdy 16 gauge steel construction with durable epoxy finish
For 80MM Quick Change Collets
Huot ToolTower can be stacked up to 2 high using ToolTower Stacking Kit (SKU 14860)
Tool Tower should be bolted to the floor for additional security
Casters should never be used on a stacked CNC ToolTower as this could be extremely dangerous

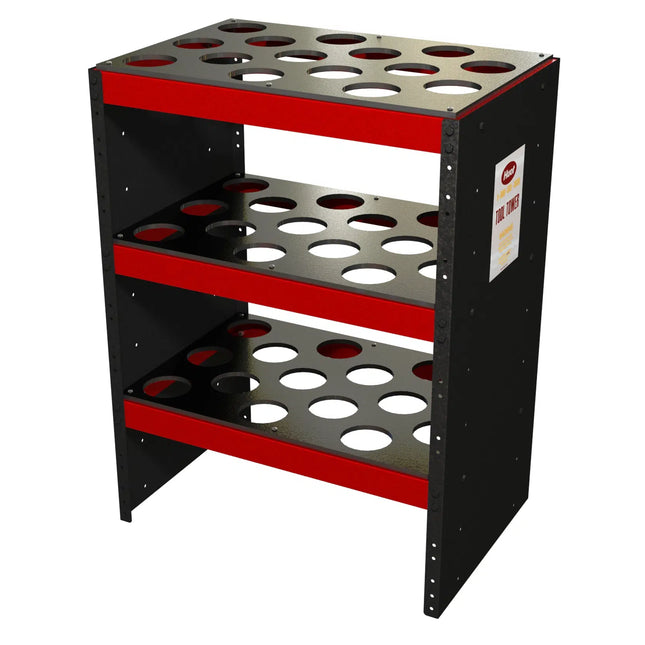

ToolTower for 65MM Quick Change Collets HDPE Pads - 45 Capacity
Individual units are 3′ tall
Comes with 3 shelves
Capacity of 15 65MM Quick Change Collets per shelf; 45 total per ToolTower
Each metal shelf includes a 3/8″ thick HDPE pad that is milled out to hold the collet
Sturdy 16 gauge steel construction with durable epoxy finish
For 65MM Quick Change Collets
Huot ToolTower can be stacked up to 2 high using ToolTower Stacking Kit (SKU 14860)
Tool Tower should be bolted to the floor for additional security
Casters should never be used on a stacked CNC ToolTower as this could be extremely dangerous

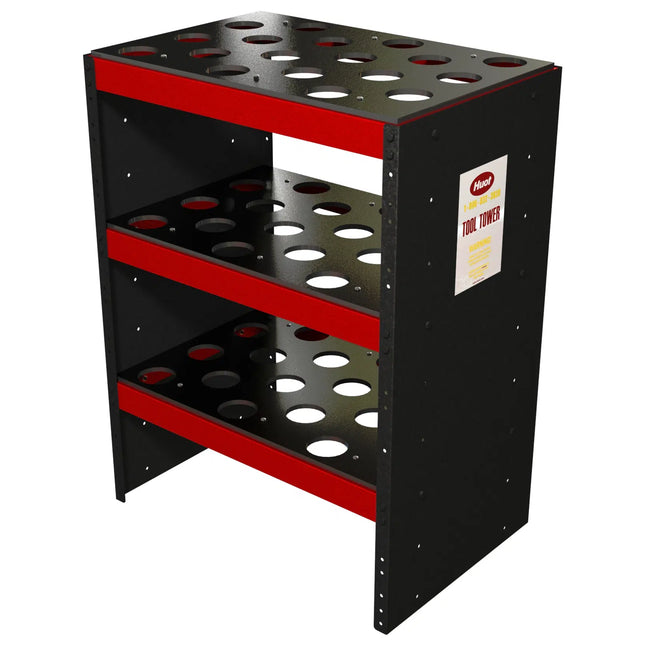

ToolTower for 42MM Quick Change Collets HDP Pads - 54 Capacity
Individual units are 3′ tall
Comes with 3 shelves
Capacity of 18 42MM Quick Change Collets per shelf; 54 total per ToolTower
Each metal shelf includes a 3/8″ thick HDPE pad that is milled out to hold the collet
Sturdy 16 gauge steel construction with durable epoxy finish
For 42MM Quick Change Collets
Huot ToolTower can be stacked up to 2 high using ToolTower Stacking Kit (SKU 14860)
Tool Tower should be bolted to the floor for additional security
Casters should never be used on a stacked CNC ToolTower as this could be extremely dangerous
End Storage Tray

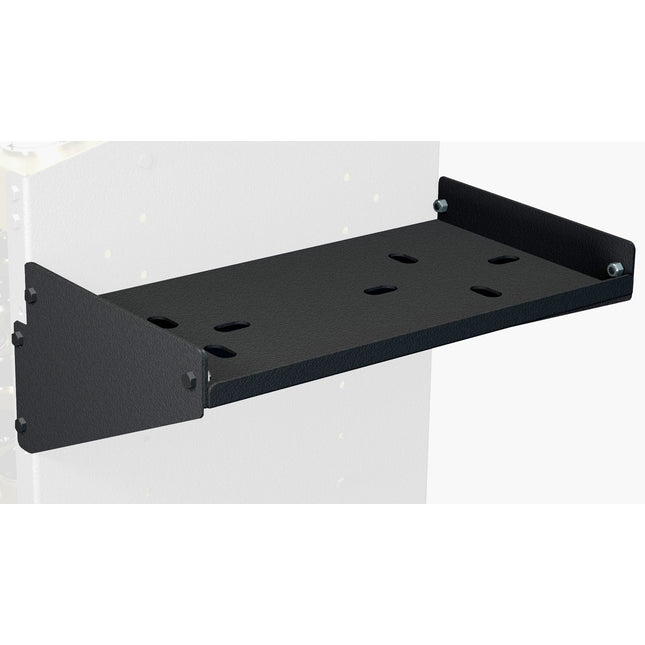

Accessory Staging Tray
Increases storage capacity
Can be use on either the Super ToolTower or as an addtional tray for use with a Super ToolScoot
Includes: 1 tray and 2 supports and the mounting hardware
(Collet rack not included)

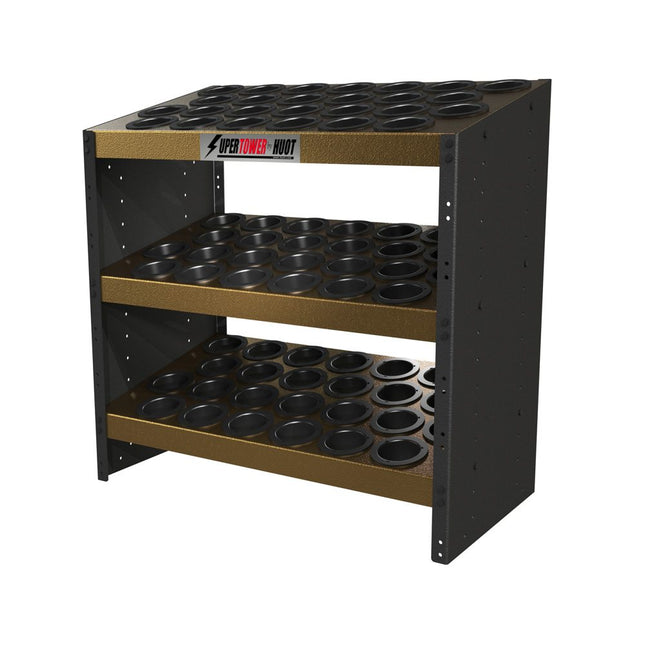

Super Tower for HSK 100A, 26 holes per shelf, 78 total capacity
Constructed of prime 12 gauge steel for rugged heavy duty use
Almost twice the storage capacity for less
Heavier duty than others in its class
Finished in beautiful, strong gold vein powder coating, baked on for lasting durability
Phosphate pretreatment undercoating for additional toughness
Angled shelving for easier, quicker tool access
Optional 4th shelf
Tower is stackable two high to expand your storage area
Casters should never be used on a stacked CNC Tower as this could be extremely dangerous

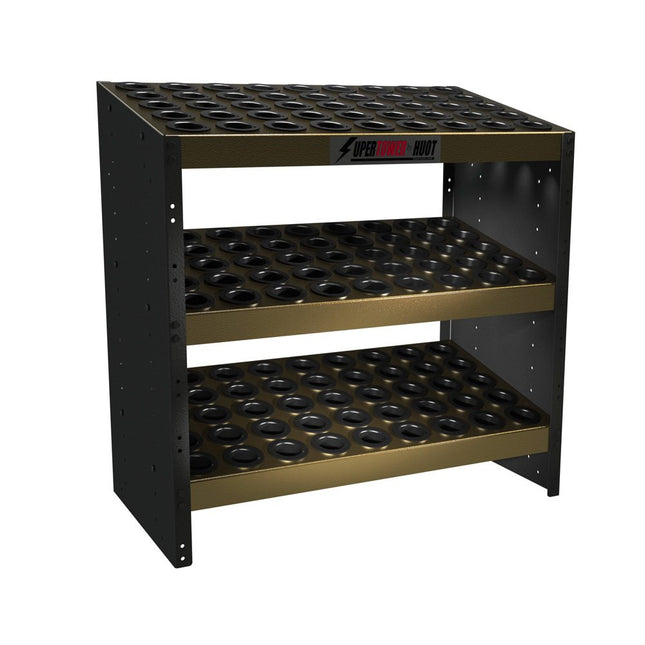

Super Tower for HSK 63A, 45 holes per shelf, 135 total capacity
Constructed of prime 12 gauge steel for rugged heavy duty use
Almost twice the storage capacity for less
Heavier duty than others in its class
Finished in beautiful, strong gold vein powder coating, baked on for lasting durability
Phosphate pretreatment undercoating for additional toughness
Angled shelving for easier, quicker tool access
Optional 4th shelf
In addition to HSK63A, accommodates HSK80B & HSK80D toolholders
Tower is stackable two high to expand your storage area
Casters should never be used on a stacked CNC Tower as this could be extremely dangerous

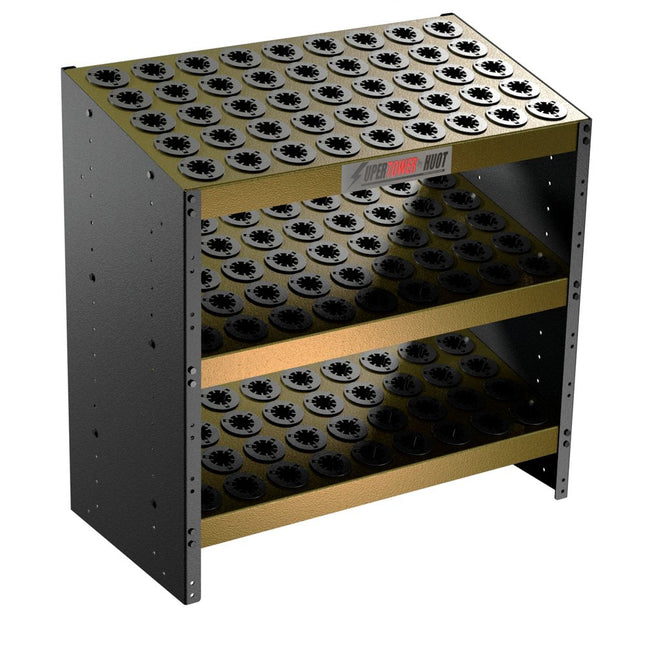

SuperTower for 30 taper, 45 holes per shelf, 135 total capacity
Constructed of prime 12 gauge steel for rugged heavy duty use
Almost twice the storage capacity for less
Heavier duty than others in its class
Finished in beautiful, strong gold vein powder coating, baked on for lasting durability
Phosphate pretreatment undercoating for additional toughness
Angled shelving for easier, quicker tool access
Optional 4th shelf
Tower is stackable two high to expand your storage area
Casters should never be used on a stacked CNC Tower as this could be extremely dangerous

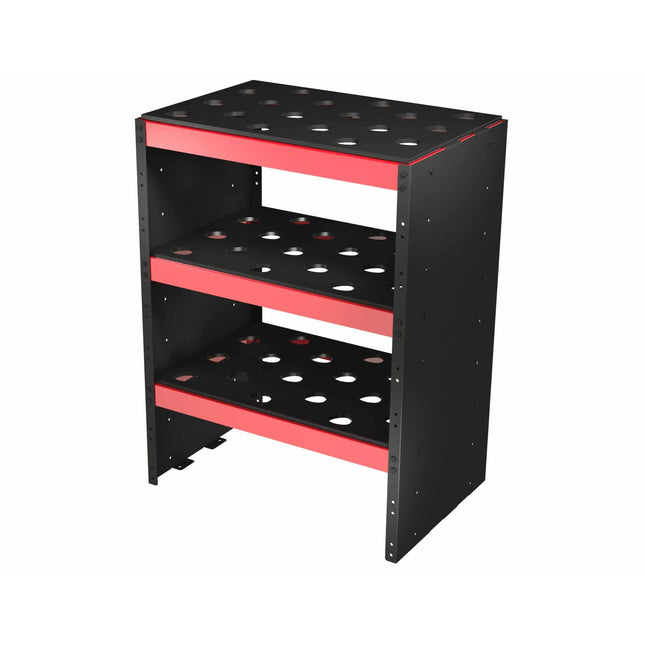

Huot CNC Tool Tower for CAPTO C8 Toolholders
Individual units are 3′ tall
Comes with 3 shelves
Capacity of 18 – CAPTO C8 tools per shelf, 54 total
Each metal shelf includes a 3/8″ thick polycarbonate layer, milled out to the unique shape and size of the C8 shank.
Sturdy 16 gauge steel construction, durable epoxy finish
For COROMANT CAPTO C8
Capto is a Registered Trademark Sandvik Corp.
Tool Tower should be bolted to the floor for additional security
Casters should never be used on a stacked CNC Tower as this could be extremely dangerous

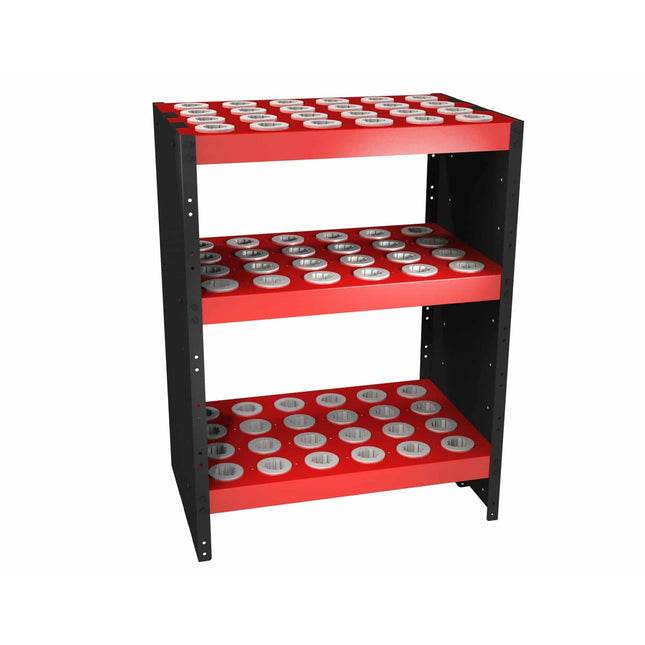

For COROMANT CAPTO® C6 Tooling
Individual units are 3′ tall
Comes with 3 shelves
Capacity of 24 CAPTO® C6 tools per shelf, 72 total
Sturdy 16 gauge steel construction, durable epoxy finish
Tool Tower should be bolted to the floor for additional security
Casters should never be used on a stacked CNC Tower as this could be extremely dangerous

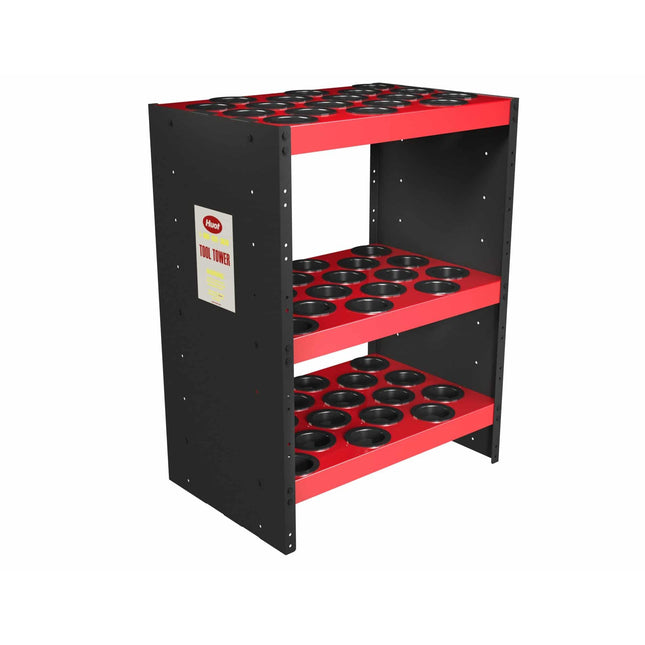

CNC Tool Tower for 100A HSK
Individual units are 3′ tall
Three Shelves – Each shelf holds 18 tools
Nylon inserts protect each tool holder
Sturdy 16 gauge steel construction
Tool Tower should be bolted to the floor for additional security
Casters should never be used on a stacked CNC Tower as this could be extremely dangerous

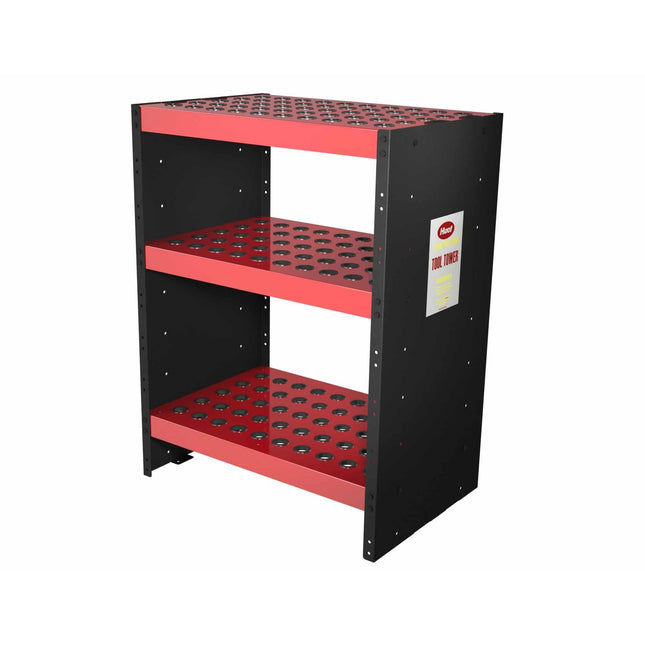

For #4 Morse taper and R8 collets
Individual units are 3′ tall
Three Shelves – Each shelf holds 50 tools – For a whopping 150 tools!
Nylon inserts protect each tool holder
Sturdy 16 gauge steel construction
Finished in Black and Red powder coating finish
Tool Tower should be bolted to the floor for additional security
Casters should never be used on a stacked CNC Tower as this could be extremely dangerous

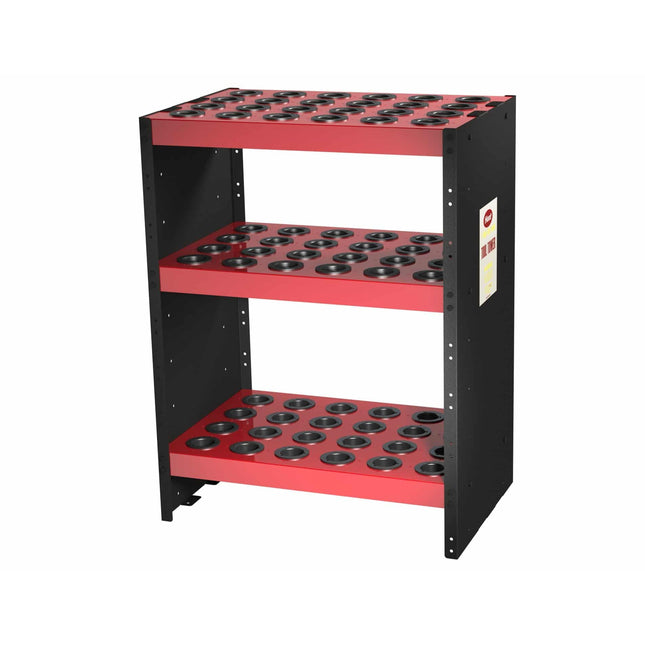

CNC Tool Tower for 63A HSK
Individual units are 3′ tall
Optional stacking kit is sold separately
Nylon inserts protect each tool holder
Sturdy 16 gauge steel construction
Tool Tower should be bolted to the floor for additional security
Casters should never be used on a stacked CNC Tower as this could be extremely dangerous

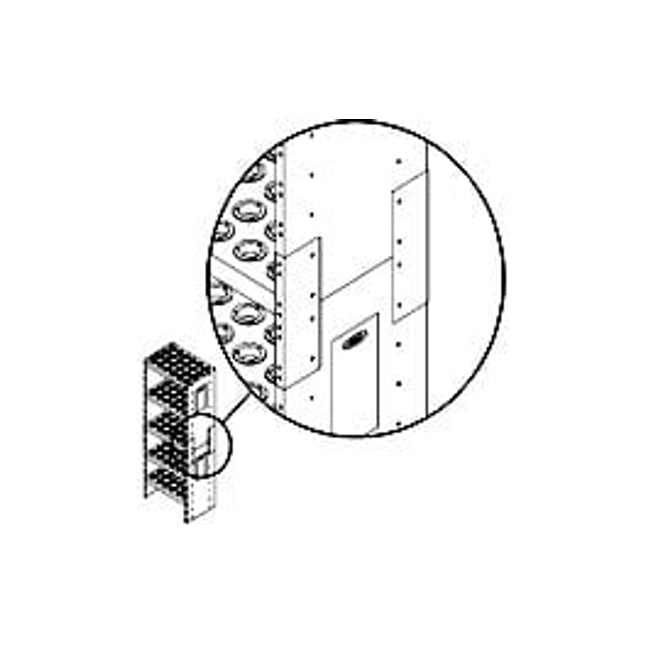

Two Huot SuperTowers ONLY may be stacked together using this stacking kit.
Also, casters should never be used on a stacked CNC Tower as this could be extremely dangerous.

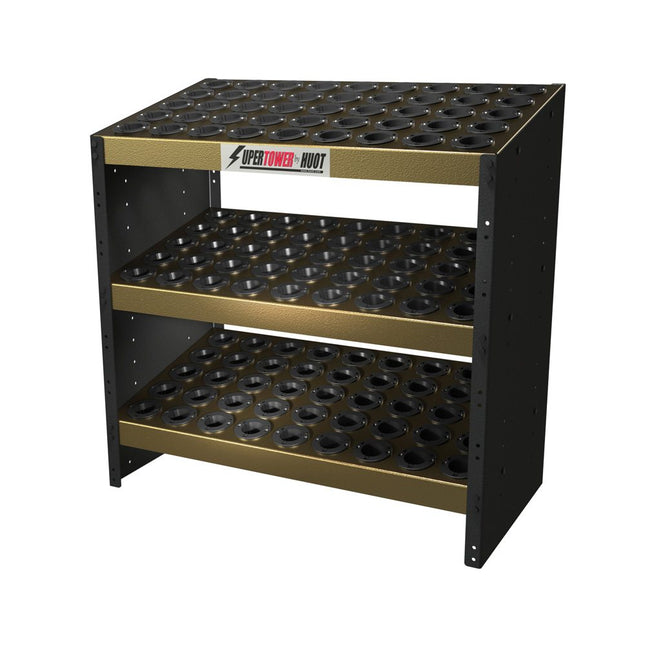

SuperTower for 40 taper, 45 holes per shelf, 135 total capacity
Constructed of prime 12 gauge steel for rugged heavy duty use
Almost twice the storage capacity for less
Heavier duty than others in its class
Finished in beautiful, strong gold vein powder coating, baked on for lasting durability
Phosphate pretreatment undercoating for additional toughness
Angled shelving for easier, quicker tool access
Optional 4th shelf
Tower is stackable two high to expand your storage area
Casters should never be used on a stacked CNC Tower as this could be extremely dangerous
We recommend bolting your SuperTower to a secure wall for added safety

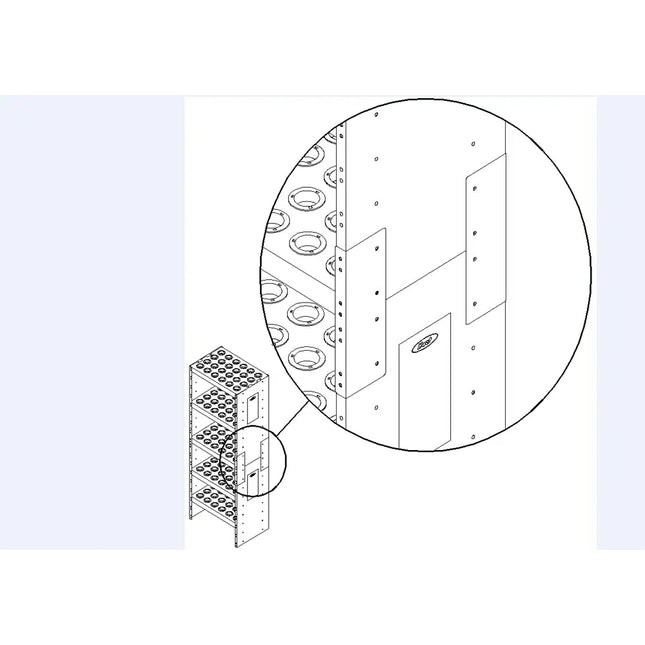

Optional stacking kit for 2 tool towers
Kit contains – 4 brackets plus hardware
Tool Tower should be bolted to the floor for additional security. Also, casters should never be used on a stacked CNC Tower as this could be extremely dangerous.

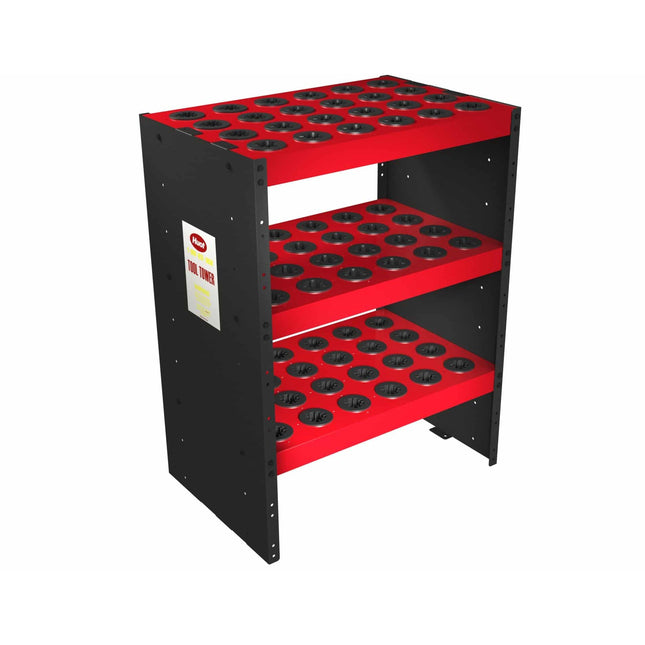

For COROMANT CAPTO C5 Tooling
Individual units are 3′ tall
Comes with 3 shelves
Capacity of 24 CAPTO C5 tools per shelf, 72 total
For COROMANT CAPTO Tooling; C5
Sturdy 16 gauge steel construction, durable epoxy finish
Tool Tower should be bolted to the floor for additional security
Casters should never be used on a stacked CNC Tower as this could be extremely dangerous

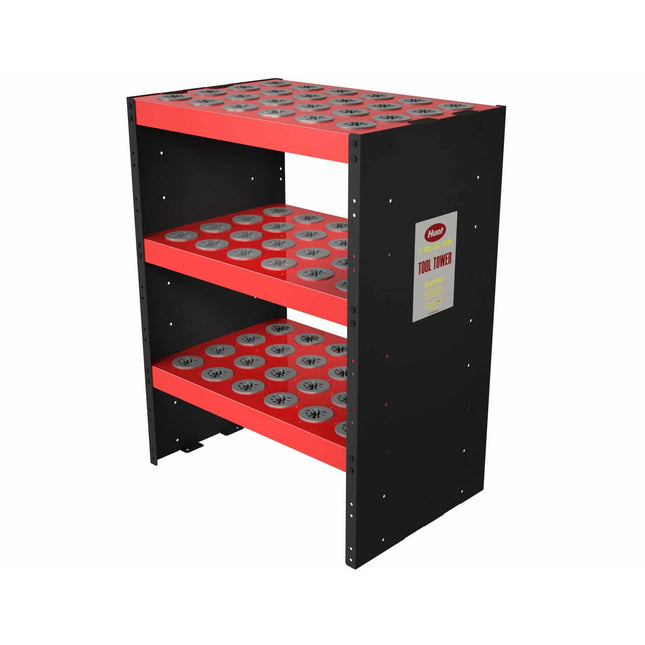

For COROMANT CAPTO C4 Tooling
Individual units are 3′ tall
For COROMANT CAPTO® Tooling; C4
Comes with 3 shelves
Capacity of 24 CAPTO C4 tools per shelf, 72 total
Sturdy 16 gauge steel construction, durable epoxy finish
Tool Tower should be bolted to the floor for additional security
Casters should never be used on a stacked CNC Tower as this could be extremely dangerous
• 12 gauge cold roll steel construction• 5/16″ hardware provided for assembly• Shelf tub depth is 4″ on 3 sides with front notched to 2-5/8″• Open design, stored products are easily visible• Top shelf offers easy crane access• Adjustable shelf heights. 12 possible locations.• Shelves mount at a -13° angle• Compact design fits in machining cell• Universal design accommodates multiple types of tooling• Ideal for hard/soft jaws, vises, fixtures, lathe chucks, tooling heads
• Designed for machine shops• Solid steel frame and shelves, no sagging wood or mesh bottoms• Ergonomic height allows for easy lifting of components• Just what you need to achieve your 5S and/or Lean 6 Sigma initiatives• Tabs on legs allow for bolting to shop floor for additional stability & safety• Overall dimensions are 39.25″ Wide X 20″ Deep X 59.5″ Tall• Precision engineering makes for fast assembly• Proudly made in the USA
Tooling shown for illustration purpose only

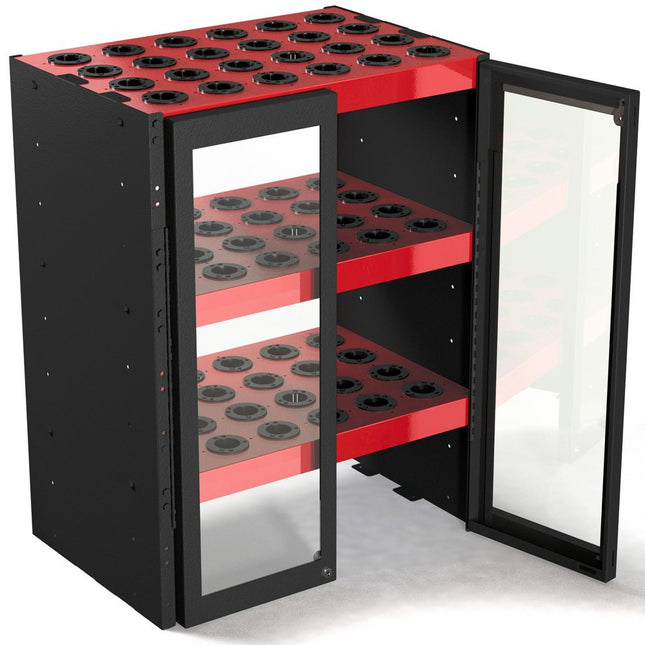

Door Set for Huot ToolTower or TriScoot
Our doors are built from heavy 16 gauge steel for strength with a durable polycarbonate window for visibility. A large barrel piano style hinge makes installation a snap. They provide security as well as protect your valuable toolholders from flying chips and other airborne contaminants.
Each door has a built in cam-style lock that mates with the other door providing a positive connection at both the top and bottom. The polycarbonate window offers protection yet allows the user to locate the proper tool at a glance. Order one set of doors per side.
This set of doors can be used on either the Huot ToolTower or the TriScoot

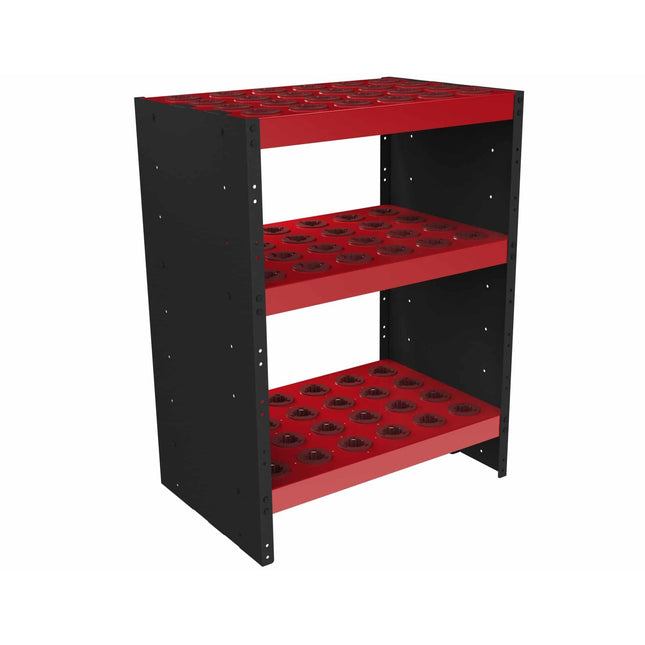

VDI Tool Tower
Quality and organization at an affordable price. Custom nylon inserts designed to hold your 40mm style VDI toolholders by their special D-shaped shank.
Tower has three shelves with a tool capacity of 24 tools per shelf.
Tool Tower should be bolted to the floor for additional security
Casters should never be used on a stacked CNC Tower as this could be extremely dangerous
Please note: This is for VDI40 tools, not the more common V-Flange tools!

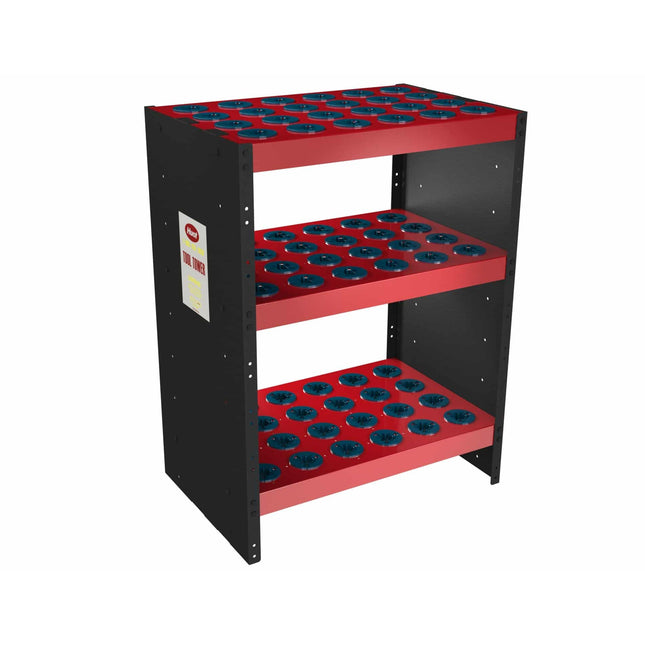

VDI Tool Tower
Quality and organization at an affordable price. Custom nylon inserts designed to hold your 30mm style VDI toolholders by their special D-shaped shank.
Tower has three shelves with a tool capacity of 24 tools per shelf.
Tool Tower should be bolted to the floor for additional security
Casters should never be used on a stacked CNC Tower as this could be extremely dangerous
Please note: This is for VDI30 tools, not the more common V-Flange tools!
