Generically referred to as Type D (flanged) or Type E (flush) insert nuts, E-Z Hex™ (Hex Drive) inserts provide sturdy machine threads in soft woods. These hex drives are an ideal solution for any application where assembly or disassembly could lead to thread erosion or stripping.E-Z Hex™ inserts feature broad external threads that provide exceptional holding power in materials like pine, composition board, MDF, and plywood. We offer E-Z Hex™ with internal thread sizes ranging from #8 to 3/8-16, plus M6 and M8. Die-cast from a durable zinc alloy, E-Z Hex™ inserts install quickly with an Allen wrench or optional drive tool.E-Z LOK hex drive threaded inserts are available with internal thread sizes from #8 to 3/8, as well as M6 and M8. Most sizes are available in a variety of lengths to meet the needs of your unique application.Features:Inexpensive solution for reinforcing threads in soft woodsInstall with Allen wrench or optional drive toolInch or metric threads availableFlush and flanged designs availableMultiple lengths availableApplications:Ready to Assemble FurnitureDrawer PullsDisplay CasesCratingMaterials such as pine, plywood, composition board, and MDF...anywhere a threaded fastener is installed in soft wood
Specifications:
E-Z Lok P/N:
801420-10
For Use in:
Soft Wood
Specific Material Use:
N/A
Sub-Category:
N/A
Style:
Hex Drive
Material:
Zinc
System of Measurement:
Inch
Internal Thread:
1/4-20
External Thread:
N/A
Installed Length:
0.39
Drill Size:
23/64
Tap Size:
N/A
Minimum Full Thread Depth:
N/A
Installation Tool P/N:
9000
E-Z LOK Drive Tools speed the installation of solid threaded inserts for metal, Knife Thread Inserts for hard wood and Hex Drive Thread Inserts for soft wood. A standard hex shaft allows for the use of power drills or drill presses in higher volume installations. Both styles quickly drive in the inserts without time consuming thread engagement.Features:Quickly install E-Z LOK slotted inserts, without engaging the internal threadUse with Solid Threaded Inserts, Knife Thread Inserts, and Hex Drive InsertsFits standard power drills and drill pressesQuickly install inserts without engaging internal threadsApplications:Quickly installing Solid Threaded Inserts, Knife Thread Inserts, and Hex Drive Inserts

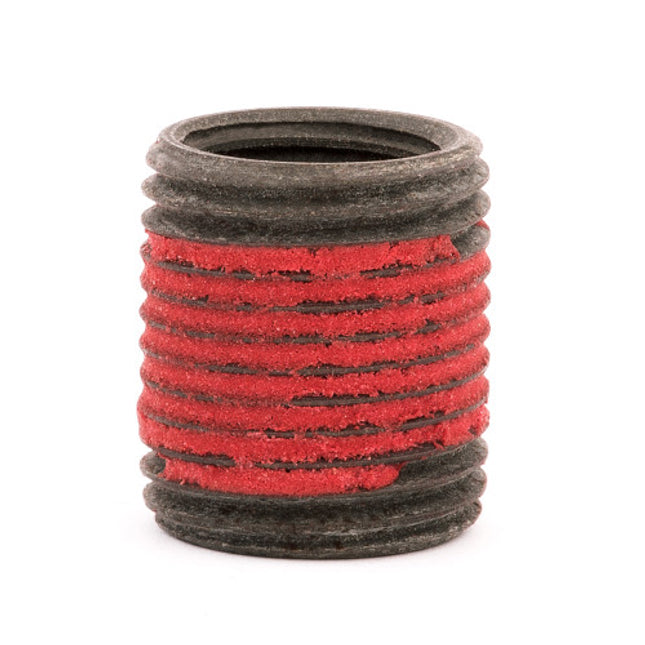

Specifications:
E-Z Lok P/N:
329-1212
For Use in:
Metal
Specific Material Use:
N/A
Sub-Category:
Automotive
Style:
Solid Wall
Material:
Steel - Carbon
System of Measurement:
Metric
Internal Thread:
M12-1.25
External Thread:
N/A
Installed Length:
18
Drill Size:
37/64
Tap Size:
5/8-18
Minimum Full Thread Depth:
N/A
Installation Tool P/N:
N/A
Assortment kits let you keep a range of sizes on hand.
Features
Ideal for soft metals, like aluminum, cast iron, and magnesium
All inserts install using standard drills and taps.
All install using standard drills and taps.
Kit Contains: (10x) 450-10, (10x) 450-8, (5x) 450-16, (8x) 450-12
Applications:
Soft metals: aluminum, cast iron, magnesium, etc.
Installation:
Unlike E-Z Coil™ inserts, which require a special tap and installation tool, E-Z LOK™ (Solid Wall) threaded inserts for metal are installed using standard tools, and installation is as easy as 1-2-3.
Simply drill the appropriately sized hole with a standard drill
Tap the hole with a standard tap
Turn in the E-Z LOK™ (Solid Wall) insert like an ordinary fastener with a screwdriver, bolt and jam nut, or an E-Z LOK™ drive tool.
E-Z LOK™ (Solid Wall) threaded inserts are self-locking and open immediately upon installation. The pre-applied LOCTITE™ on the external threads sets immediately allowing for the newly installed insert to be fastener ready.E-Z LOK solid wall threaded inserts are typically installed with the slots up. The slots accommodate a screwdriver or E-Z LOK drive tool. When using a bolt and jam nuts for installation, the slotted end of the insert can be either up or down.Important Note: Hole size requirements may vary depending on a number of factors, including material and tools. We recommend you test your particular application before ordering. Contact us for free samples.
Generically referred to as Type D (flanged) or Type E (flush) insert nuts, E-Z Hex™ (Hex Drive) inserts provide sturdy machine threads in soft woods. These hex drives are an ideal solution for any application where assembly or disassembly could lead to thread erosion or stripping.E-Z Hex™ inserts feature broad external threads that provide exceptional holding power in materials like pine, composition board, MDF, and plywood. We offer E-Z Hex™ with internal thread sizes ranging from #8 to 3/8-16, plus M6 and M8. Die-cast from a durable zinc alloy, E-Z Hex™ inserts install quickly with an Allen wrench or optional drive tool.E-Z LOK hex drive threaded inserts are available with internal thread sizes from #8 to 3/8, as well as M6 and M8. Most sizes are available in a variety of lengths to meet the needs of your unique application.Features:
Standard kit includes inserts, drill and drive-tool.
Easy to use solution for putting strong, machine threads in soft wood, like pine, MDF, and composition board.
Inexpensive solution for reinforcing threads in soft woods
Kit contains ten flush 10-32 inserts, a 9/32 drill, and an installation tool.
Ideal for knock-down furniture, display cases, drawer pulls, or anywhere a threaded fastener will be used in soft wood, like pine, MDF, or composition board.
Applications:Ready to Assemble FurnitureDrawer PullsDisplay CasesCratingMaterials such as pine, plywood, composition board, and MDF...anywhere a threaded fastener is installed in soft wood
Generically referred to as Type D (flanged) or Type E (flush) insert nuts, E-Z Hex™ (Hex Drive) inserts provide sturdy machine threads in soft woods. These hex drives are an ideal solution for any application where assembly or disassembly could lead to thread erosion or stripping.E-Z Hex™ inserts feature broad external threads that provide exceptional holding power in materials like pine, composition board, MDF, and plywood. We offer E-Z Hex™ with internal thread sizes ranging from #8 to 3/8-16, plus M6 and M8. Die-cast from a durable zinc alloy, E-Z Hex™ inserts install quickly with an Allen wrench or optional drive tool.E-Z LOK hex drive threaded inserts are available with internal thread sizes from #8 to 3/8, as well as M6 and M8. Most sizes are available in a variety of lengths to meet the needs of your unique application.Features:
Standard kit includes inserts, drill and drive-tool.
Easy to use solution for putting strong, machine threads in soft wood, like pine, MDF, and composition board.
Inexpensive solution for reinforcing threads in soft woods
Kit contains ten flush 10-24 inserts, a 9/32 drill, and an installation tool.
Ideal for knock-down furniture, display cases, drawer pulls, or anywhere a threaded fastener will be used in soft wood, like pine, MDF, or composition board.
Applications:Ready to Assemble FurnitureDrawer PullsDisplay CasesCratingMaterials such as pine, plywood, composition board, and MDF...anywhere a threaded fastener is installed in soft wood
Specifications:E-Z Lok P/N: EZ-801024-13 For Use in: N/A Specific Material Use: N/ASub-Category: E-Z HexStyle: E-Z HexMaterial: N/ASystem of Measurement: N/AInternal Thread: 10-24External Thread: 13mmInstalled Length: N/ADrill Size: N/ATap Size: N/AMinimum Full Thread Depth: N/A
E-Z Knife™ inserts are designed for use in hard woods, like oak, cherry, and maple. E-Z Knife™ inserts are ideal for use wherever assembly or disassembly could lead to thread erosion or stripping. Also, E-Z Knife™ inserts for wood use a proprietary external “knife” thread to slice into the wood, which provides superior holding power.E-Z Knife™ inserts are most often machined out of brass when internal thread sizes range from #4 to 3/8 or M3 to M8. For additional corrosion resistance, stainless steel knife thread inserts are used with 8-32, 10-24, and 1/4-20 internal threads.Features:
Standard kit includes threaded inserts, drill and drive-tool.
Easy to use solution for putting strong, machine threads in wood
Everything needed for installation in a convenient kit
Ideal for cabinetry, furniture, display cases, anywhere a threaded fastener will be used in wood.
Kit Contains: (5x) 400-M8-CR, (1x) A1260, (1x) DT-M8
Applications:Cabinetry & FurniturePartitionsDisplay CasesBeer Tap HandlesShipping ContainersAnywhere a fastener will be used in woodInstallation:E-Z Knife threaded inserts are typically installed with the slots up. The slots accommodate a screwdriver or E-Z LOK drive tool. For harder woods, screwdriver installation isn't practical. Installation can be accomplished with the drive tool or using a bolt and jam nuts. When using the bolt/jam nuts installation technique, the slotted end of the insert can be either up or down.
Generically referred to as Type D (flanged) or Type E (flush) insert nuts, E-Z Hex™ (Hex Drive) inserts provide sturdy machine threads in soft woods. These hex drives are an ideal solution for any application where assembly or disassembly could lead to thread erosion or stripping.E-Z Hex™ inserts feature broad external threads that provide exceptional holding power in materials like pine, composition board, MDF, and plywood. We offer E-Z Hex™ with internal thread sizes ranging from #8 to 3/8-16, plus M6 and M8. Die-cast from a durable zinc alloy, E-Z Hex™ inserts install quickly with an Allen wrench or optional drive tool.E-Z LOK hex drive threaded inserts are available with internal thread sizes from #8 to 3/8, as well as M6 and M8. Most sizes are available in a variety of lengths to meet the needs of your unique application.Features:Inexpensive solution for reinforcing threads in soft woodsInstall with Allen wrench or optional drive toolInch or metric threads availableFlush and flanged designs availableMultiple lengths availableApplications:Ready to Assemble FurnitureDrawer PullsDisplay CasesCratingMaterials such as pine, plywood, composition board, and MDF...anywhere a threaded fastener is installed in soft wood
Specifications:
E-Z Lok P/N:
801024-13
For Use in:
Soft Wood
Specific Material Use:
N/A
Sub-Category:
N/A
Style:
Hex Drive
Material:
Zinc
System of Measurement:
Inch
Internal Thread:
10-24
External Thread:
N/A
Installed Length:
0.51
Drill Size:
9/32
Tap Size:
N/A
Minimum Full Thread Depth:
N/A
Installation Tool P/N:
8600
E-Z LOK Drive Tools speed the installation of solid threaded inserts for metal, Knife Thread Inserts for hard wood and Hex Drive Thread Inserts for soft wood. A standard hex shaft allows for the use of power drills or drill presses in higher volume installations. Both styles quickly drive in the inserts without time consuming thread engagement.Features:Quickly install E-Z LOK slotted inserts, without engaging the internal threadUse with Solid Threaded Inserts, Knife Thread Inserts, and Hex Drive InsertsFits standard power drills and drill pressesQuickly install inserts without engaging internal threadsApplications:Quickly installing Solid Threaded Inserts, Knife Thread Inserts, and Hex Drive Inserts
Specifications:
E-Z Lok P/N:
653-8
For Use in:
Metal
Specific Material Use:
N/A
Sub-Category:
Standard Wall
Style:
Solid Wall
Material:
Steel - Stainless
System of Measurement:
Metric
Internal Thread:
M8-1.25
External Thread:
N/A
Installed Length:
12
Drill Size:
27/64
Tap Size:
1/2-13
Minimum Full Thread Depth:
N/A
Installation Tool P/N:
500-4
E-Z LOK Drive Tools speed the installation of solid threaded inserts for metal, Knife Thread Inserts for hard wood and Hex Drive Thread Inserts for soft wood. A standard hex shaft allows for the use of power drills or drill presses in higher volume installations. Both styles quickly drive in the inserts without time consuming thread engagement.Features:Quickly install E-Z LOK slotted inserts, without engaging the internal threadUse with Solid Threaded Inserts, Knife Thread Inserts, and Hex Drive InsertsFits standard power drills and drill pressesQuickly install inserts without engaging internal threadsApplications:Quickly installing Solid Threaded Inserts, Knife Thread Inserts, and Hex Drive Inserts
Specifications:
E-Z Lok P/N:
650-16
For Use in:
Metal
Specific Material Use:
N/A
Sub-Category:
Standard Wall
Style:
Solid Wall
Material:
Steel - Carbon
System of Measurement:
Metric
Internal Thread:
M16-2.0
External Thread:
N/A
Installed Length:
20
Drill Size:
7/8
Tap Size:
1-8
Minimum Full Thread Depth:
N/A
Installation Tool P/N:
500-8
E-Z LOK Drive Tools speed the installation of solid threaded inserts for metal, Knife Thread Inserts for hard wood and Hex Drive Thread Inserts for soft wood. A standard hex shaft allows for the use of power drills or drill presses in higher volume installations. Both styles quickly drive in the inserts without time consuming thread engagement.Features:Quickly install E-Z LOK slotted inserts, without engaging the internal threadUse with Solid Threaded Inserts, Knife Thread Inserts, and Hex Drive InsertsFits standard power drills and drill pressesQuickly install inserts without engaging internal threadsApplications:Quickly installing Solid Threaded Inserts, Knife Thread Inserts, and Hex Drive Inserts
Specifications:

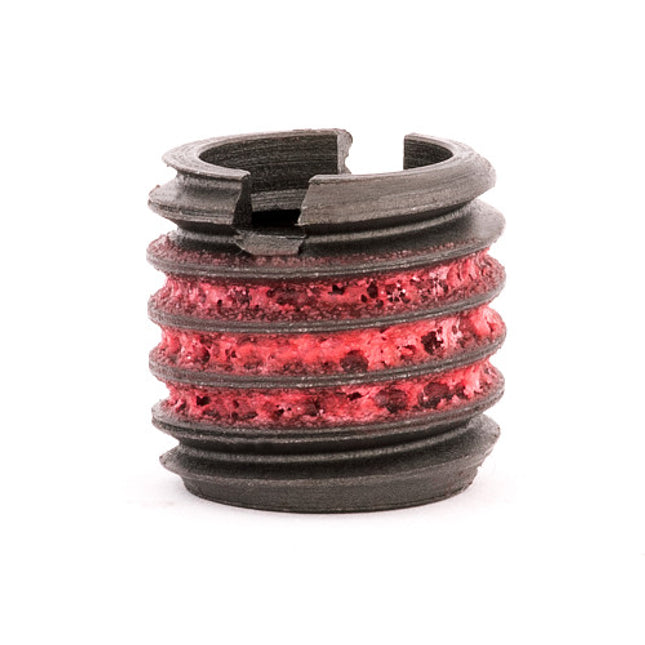

E-Z Lok P/N:
650-10
For Use in:
Metal
Specific Material Use:
N/A
Sub-Category:
Standard Wall
Style:
Solid Wall
Material:
Steel - Carbon
System of Measurement:
Metric
Internal Thread:
M10-1.5
External Thread:
N/A
Installed Length:
13
Drill Size:
31/64
Tap Size:
9/16-12
Minimum Full Thread Depth:
N/A
Installation Tool P/N:
500-5
E-Z LOK Drive Tools speed the installation of solid threaded inserts for metal, Knife Thread Inserts for hard wood and Hex Drive Thread Inserts for soft wood. A standard hex shaft allows for the use of power drills or drill presses in higher volume installations. Both styles quickly drive in the inserts without time consuming thread engagement.Features:Quickly install E-Z LOK slotted inserts, without engaging the internal threadUse with Solid Threaded Inserts, Knife Thread Inserts, and Hex Drive InsertsFits standard power drills and drill pressesQuickly install inserts without engaging internal threadsApplications:Quickly installing Solid Threaded Inserts, Knife Thread Inserts, and Hex Drive Inserts
Specifications:

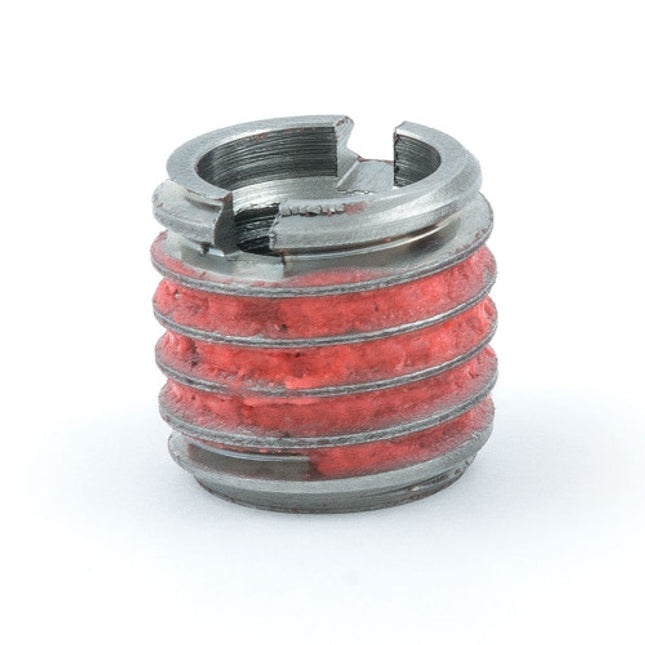

E-Z Lok P/N:
453-6
For Use in:
Metal
Specific Material Use:
N/A
Sub-Category:
Standard Wall
Style:
Solid Wall
Material:
Steel - Stainless
System of Measurement:
Metric
Internal Thread:
M6-1.0
External Thread:
M10-1.5
Installed Length:
10
Drill Size:
8.6
Tap Size:
M10-1.5
Minimum Full Thread Depth:
12
Installation Tool P/N:
500-3
E-Z Knife™ inserts are designed for use in hard woods, like oak, cherry, and maple. E-Z Knife™ inserts are ideal for use wherever assembly or disassembly could lead to thread erosion or stripping. Also, E-Z Knife™ inserts for wood use a proprietary external “knife” thread to slice into the wood, which provides superior holding power.E-Z Knife™ inserts are most often machined out of brass when internal thread sizes range from #4 to 3/8 or M3 to M8. For additional corrosion resistance, stainless steel knife thread inserts are used with 8-32, 10-24, and 1/4-20 internal threads.Features:Superior hard wood holding powerSizing variety, inch (coarse/fine) & metricBrass or stainless steel optionsEasily installs with a screwdriver, bolt/jam nut, or optional drive toolApplications:Cabinetry & FurniturePartitionsDisplay CasesBeer Tap HandlesShipping ContainersAnywhere a fastener will be used in woodInstallation:E-Z Knife threaded inserts are typically installed with the slots up. The slots accommodate a screwdriver or E-Z LOK drive tool. For harder woods, screwdriver installation isn't practical. Installation can be accomplished with the drive tool or using a bolt and jam nuts. When using the bolt/jam nuts installation technique, the slotted end of the insert can be either up or down.
Specifications:
E-Z Lok P/N:
400-008-CR
For Use in:
Hard Wood
Specific Material Use:
N/A
Sub-Category:
N/A
Style:
Knife Thread
Material:
Steel - Stainless
System of Measurement:
Inch
Internal Thread:
8-32
External Thread:
N/A
Installed Length:
0.38
Drill Size:
17/64
Tap Size:
N/A
Minimum Full Thread Depth:
N/A
Installation Tool P/N:
500-1
E-Z Knife™ inserts are designed for use in hard woods, like oak, cherry, and maple. E-Z Knife™ inserts are ideal for use wherever assembly or disassembly could lead to thread erosion or stripping. Also, E-Z Knife™ inserts for wood use a proprietary external “knife” thread to slice into the wood, which provides superior holding power.E-Z Knife™ inserts are most often machined out of brass when internal thread sizes range from #4 to 3/8 or M3 to M8. For additional corrosion resistance, stainless steel knife thread inserts are used with 8-32, 10-24, and 1/4-20 internal threads.Features:Superior hard wood holding powerSizing variety, inch (coarse/fine) & metricBrass or stainless steel optionsEasily installs with a screwdriver, bolt/jam nut, or optional drive toolApplications:Cabinetry & FurniturePartitionsDisplay CasesBeer Tap HandlesShipping ContainersAnywhere a fastener will be used in woodInstallation:E-Z Knife threaded inserts are typically installed with the slots up. The slots accommodate a screwdriver or E-Z LOK drive tool. For harder woods, screwdriver installation isn't practical. Installation can be accomplished with the drive tool or using a bolt and jam nuts. When using the bolt/jam nuts installation technique, the slotted end of the insert can be either up or down.
Specifications:
E-Z Lok P/N:
400-006
For Use in:
Hard Wood
Specific Material Use:
N/A
Sub-Category:
N/A
Style:
Knife Thread
Material:
Brass
System of Measurement:
Inch
Internal Thread:
6-32
External Thread:
N/A
Installed Length:
0.38
Drill Size:
17/64
Tap Size:
N/A
Minimum Full Thread Depth:
N/A
Installation Tool P/N:
500-006
E-Z LOK Drive Tools speed the installation of solid threaded inserts for metal, Knife Thread Inserts for hard wood and Hex Drive Thread Inserts for soft wood. A standard hex shaft allows for the use of power drills or drill presses in higher volume installations. Both styles quickly drive in the inserts without time consuming thread engagement.Features:Quickly install E-Z LOK slotted inserts, without engaging the internal threadUse with Solid Threaded Inserts, Knife Thread Inserts, and Hex Drive InsertsFits standard power drills and drill pressesQuickly install inserts without engaging internal threadsApplications:Quickly installing Solid Threaded Inserts, Knife Thread Inserts, and Hex Drive Inserts
Specifications:
E-Z Lok P/N:
329-1406
For Use in:
Metal
Specific Material Use:
N/A
Sub-Category:
Automotive
Style:
Solid Wall
Material:
Steel - Carbon
System of Measurement:
Metric
Internal Thread:
M14-1.25
External Thread:
N/A
Installed Length:
8
Drill Size:
11/16
Tap Size:
3/4-16
Minimum Full Thread Depth:
N/A
Installation Tool P/N:
N/A
E-Z LOK Drive Tools speed the installation of solid threaded inserts for metal, Knife Thread Inserts for hard wood and Hex Drive Thread Inserts for soft wood. A standard hex shaft allows for the use of power drills or drill presses in higher volume installations. Both styles quickly drive in the inserts without time consuming thread engagement.Features:Quickly install E-Z LOK slotted inserts, without engaging the internal threadUse with Solid Threaded Inserts, Knife Thread Inserts, and Hex Drive InsertsFits standard power drills and drill pressesQuickly install inserts without engaging internal threadsApplications:Quickly installing Solid Threaded Inserts, Knife Thread Inserts, and Hex Drive Inserts
Specifications:

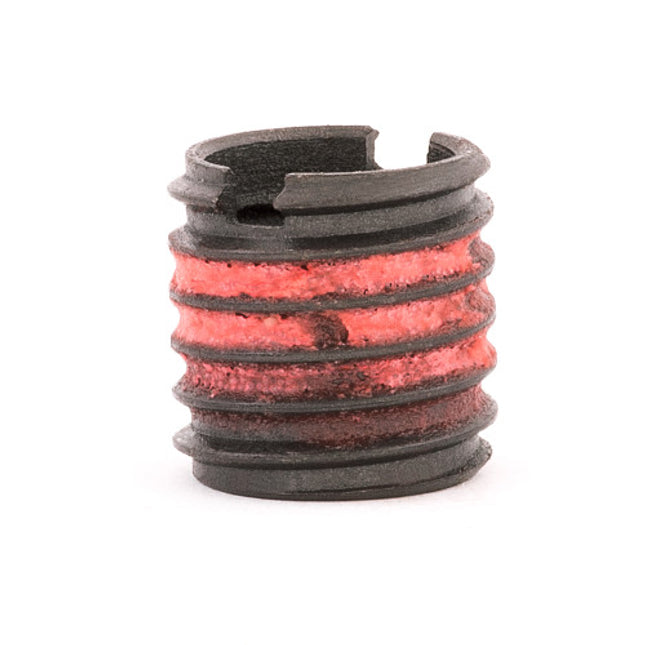

E-Z Lok P/N:
319-624
For Use in:
Metal
Specific Material Use:
N/A
Sub-Category:
Thin Wall
Style:
Solid Wall
Material:
Steel - Carbon
System of Measurement:
Inch
Internal Thread:
3/8-24
External Thread:
1/2-13
Installed Length:
0.5
Drill Size:
29/64
Tap Size:
1/2-13
Minimum Full Thread Depth:
0.56
Installation Tool P/N:
500-5
E-Z LOK Drive Tools speed the installation of solid threaded inserts for metal, Knife Thread Inserts for hard wood and Hex Drive Thread Inserts for soft wood. A standard hex shaft allows for the use of power drills or drill presses in higher volume installations. Both styles quickly drive in the inserts without time consuming thread engagement.Features:Quickly install E-Z LOK slotted inserts, without engaging the internal threadUse with Solid Threaded Inserts, Knife Thread Inserts, and Hex Drive InsertsFits standard power drills and drill pressesQuickly install inserts without engaging internal threadsApplications:Quickly installing Solid Threaded Inserts, Knife Thread Inserts, and Hex Drive Inserts
Specifications:
E-Z Lok P/N:
303-428
For Use in:
Metal
Specific Material Use:
N/A
Sub-Category:
Standard Wall
Style:
Solid Wall
Material:
Steel - Stainless
System of Measurement:
Inch
Internal Thread:
1/4-28
External Thread:
7/16-14
Installed Length:
0.44
Drill Size:
U
Tap Size:
7/16-14
Minimum Full Thread Depth:
0.5
Installation Tool P/N:
500-3
E-Z Coil™ inserts – also known as wire or helical threaded inserts – quickly repair or reinforce tapped holes in soft metals. Made from 18-8 stainless steel wire, E-Z Coil™ inserts provide strong internal threads that are corrosion resistant and withstand temperatures to 800°F.
E-Z Coil™ inserts are made of 18-8 stainless steel wire. The wire is formed into a diamond pattern and then wound into a spring. Before being installed, the insert diameter is larger than the tapped hole. The insert diameter is reduced during installation, allowing the insert to thread into the hole. Once properly installed, the radial pressure of the released insert holds the insert firmly in place.
Features
Quickly repair damaged threads in soft metal
Protect tapped holes from stripping and wear
Made from corrosion resistant 18-8 stainless steel
Applications:
Soft metals: aluminum, cast iron, magnesium, etc.
Specifications
E-Z Lok P/N:
20120
For Use in:
Metal
Specific Material Use:
N/A
Sub-Category:
Standard Coil
Style:
Coil
Material:
Steel - Stainless
System of Measurement:
Inch
Internal Thread:
3-48
External Thread:
N/A
Installed Length:
0.2
Drill Size:
#36
Tap Size:
3-48 STI
Minimum Full Thread Depth:
0.18
Installation Tool P/N:
M1002
E-Z LOK’s E-Z Sonic™ ultrasonic threaded inserts are designed for post-molding installation in thermoplastic materials. Machined out of high quality brass and available with both inch and metric threads, our ultrasonic inserts are durable enough for the toughest environments and versatile enough to meet the needs of any application.
Features
Tapered and straight designs
Install ultrasonically or with heat driver
Superior torque and pull-out resistance
Inch or metric threads
Tapered design in single and double vane
Straight design in flush or flanged configuration
Applications:
Post-molding installation in thermoplastic materials
Installation:
Important Note: Hole size requirements may vary depending on a number of factors, including material and tools. We recommend you test your particular application before ordering. Contact us for free samples.
Specifications
E-Z Lok P/N:
TH-M60-SV
For Use in:
Thermoplastic
Specific Material Use:
N/A
Sub-Category:
N/A
Style:
Ultrasonic
Material:
Brass
System of Measurement:
Metric
Internal Thread:
M6-1.0
External Thread:
N/A
Installed Length:
8
Drill Size:
See Dimensional Dwg
Tap Size:
N/A
Minimum Full Thread Depth:
N/A
Installation Tool P/N:
N/A
E-Z LOK’s E-Z Sonic™ ultrasonic threaded inserts are designed for post-molding installation in thermoplastic materials. Machined out of high quality brass and available with both inch and metric threads, our ultrasonic inserts are durable enough for the toughest environments and versatile enough to meet the needs of any application.
Features
Tapered and straight designs
Install ultrasonically or with heat driver
Superior torque and pull-out resistance
Inch or metric threads
Tapered design in single and double vane
Straight design in flush or flanged configuration
Applications:
Post-molding installation in thermoplastic materials
Installation:
Important Note: Hole size requirements may vary depending on a number of factors, including material and tools. We recommend you test your particular application before ordering. Contact us for free samples.
Specifications

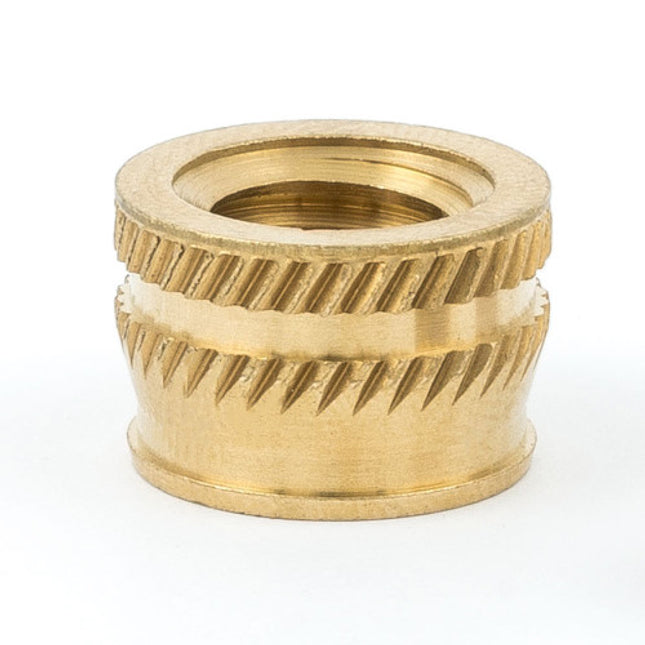

E-Z Lok P/N:
TH-M50-SV
For Use in:
Thermoplastic
Specific Material Use:
N/A
Sub-Category:
N/A
Style:
Ultrasonic
Material:
Brass
System of Measurement:
Metric
Internal Thread:
M5-0.8
External Thread:
N/A
Installed Length:
7
Drill Size:
See Dimensional Dwg
Tap Size:
N/A
Minimum Full Thread Depth:
N/A
Installation Tool P/N:
N/A
E-Z LOK’s E-Z Sonic™ ultrasonic threaded inserts are designed for post-molding installation in thermoplastic materials. Machined out of high quality brass and available with both inch and metric threads, our ultrasonic inserts are durable enough for the toughest environments and versatile enough to meet the needs of any application.
Features
Tapered and straight designs
Install ultrasonically or with heat driver
Superior torque and pull-out resistance
Inch or metric threads
Tapered design in single and double vane
Straight design in flush or flanged configuration
Applications:
Post-molding installation in thermoplastic materials
Installation:
Important Note: Hole size requirements may vary depending on a number of factors, including material and tools. We recommend you test your particular application before ordering. Contact us for free samples.
Specifications
E-Z Lok P/N:
TH-M40-SV
For Use in:
Thermoplastic
Specific Material Use:
N/A
Sub-Category:
N/A
Style:
Ultrasonic
Material:
Brass
System of Measurement:
Metric
Internal Thread:
M4-0.7
External Thread:
N/A
Installed Length:
5
Drill Size:
See Dimensional Dwg
Tap Size:
N/A
Minimum Full Thread Depth:
N/A
Installation Tool P/N:
N/A
E-Z LOK’s E-Z Sonic™ ultrasonic threaded inserts are designed for post-molding installation in thermoplastic materials. Machined out of high quality brass and available with both inch and metric threads, our ultrasonic inserts are durable enough for the toughest environments and versatile enough to meet the needs of any application.
Features
Tapered and straight designs
Install ultrasonically or with heat driver
Superior torque and pull-out resistance
Inch or metric threads
Tapered design in single and double vane
Straight design in flush or flanged configuration
Applications:
Post-molding installation in thermoplastic materials
Installation:
Important Note: Hole size requirements may vary depending on a number of factors, including material and tools. We recommend you test your particular application before ordering. Contact us for free samples.
E-Z LOK’s E-Z Sonic™ ultrasonic threaded inserts are designed for post-molding installation in thermoplastic materials. Machined out of high quality brass and available with both inch and metric threads, our ultrasonic inserts are durable enough for the toughest environments and versatile enough to meet the needs of any application.
Features
Tapered and straight designs
Install ultrasonically or with heat driver
Superior torque and pull-out resistance
Inch or metric threads
Tapered design in single and double vane
Straight design in flush or flanged configuration
Applications:
Post-molding installation in thermoplastic materials
Installation:
Important Note: Hole size requirements may vary depending on a number of factors, including material and tools. We recommend you test your particular application before ordering. Contact us for free samples.
Specifications
E-Z Lok P/N:
TH-M30-SV
For Use in:
Thermoplastic
Specific Material Use:
N/A
Sub-Category:
N/A
Style:
Ultrasonic
Material:
Brass
System of Measurement:
Metric
Internal Thread:
M3-0.5
External Thread:
N/A
Installed Length:
4
Drill Size:
See Dimensional Dwg
Tap Size:
N/A
Minimum Full Thread Depth:
N/A
Installation Tool P/N:
N/A
E-Z Lok P/N:
TH-M30-SV
For Use in:
Thermoplastic
Specific Material Use:
N/A
Sub-Category:
N/A
Style:
Ultrasonic
Material:
Brass
System of Measurement:
Metric
Internal Thread:
M3-0.5
External Thread:
N/A
Installed Length:
4
Drill Size:
See Dimensional Dwg
Tap Size:
N/A
Minimum Full Thread Depth:
N/A
Installation Tool P/N:
N/A
E-Z LOK’s E-Z Sonic™ ultrasonic threaded inserts are designed for post-molding installation in thermoplastic materials. Machined out of high quality brass and available with both inch and metric threads, our ultrasonic inserts are durable enough for the toughest environments and versatile enough to meet the needs of any application.
Features
Tapered and straight designs
Install ultrasonically or with heat driver
Superior torque and pull-out resistance
Inch or metric threads
Tapered design in single and double vane
Straight design in flush or flanged configuration
Applications:
Post-molding installation in thermoplastic materials
Installation:
Important Note: Hole size requirements may vary depending on a number of factors, including material and tools. We recommend you test your particular application before ordering. Contact us for free samples.
Specifications
E-Z Lok P/N:
TH-M25-SV
For Use in:
Thermoplastic
Specific Material Use:
N/A
Sub-Category:
N/A
Style:
Ultrasonic
Material:
Brass
System of Measurement:
Metric
Internal Thread:
M2.5-.45
External Thread:
N/A
Installed Length:
3
Drill Size:
See Dimensional Dwg
Tap Size:
N/A
Minimum Full Thread Depth:
N/A
Installation Tool P/N:
N/A
E-Z LOK’s E-Z Sonic™ ultrasonic threaded inserts are designed for post-molding installation in thermoplastic materials. Machined out of high quality brass and available with both inch and metric threads, our ultrasonic inserts are durable enough for the toughest environments and versatile enough to meet the needs of any application.
Features
Tapered and straight designs
Install ultrasonically or with heat driver
Superior torque and pull-out resistance
Inch or metric threads
Tapered design in single and double vane
Straight design in flush or flanged configuration
Applications:
Post-molding installation in thermoplastic materials
Installation:
Important Note: Hole size requirements may vary depending on a number of factors, including material and tools. We recommend you test your particular application before ordering. Contact us for free samples.
Specifications
E-Z Lok P/N:
TH-518-SV
For Use in:
Thermoplastic
Specific Material Use:
N/A
Sub-Category:
N/A
Style:
Ultrasonic
Material:
Brass
System of Measurement:
Inch
Internal Thread:
5/16-18
External Thread:
N/A
Installed Length:
0.34
Drill Size:
See Dimensional Dwg
Tap Size:
N/A
Minimum Full Thread Depth:
N/A
Installation Tool P/N:
N/A
E-Z LOK’s E-Z Sonic™ ultrasonic threaded inserts are designed for post-molding installation in thermoplastic materials. Machined out of high quality brass and available with both inch and metric threads, our ultrasonic inserts are durable enough for the toughest environments and versatile enough to meet the needs of any application.
Features
Tapered and straight designs
Install ultrasonically or with heat driver
Superior torque and pull-out resistance
Inch or metric threads
Tapered design in single and double vane
Straight design in flush or flanged configuration
Applications:
Post-molding installation in thermoplastic materials
Installation:
Important Note: Hole size requirements may vary depending on a number of factors, including material and tools. We recommend you test your particular application before ordering. Contact us for free samples.
Specifications
E-Z Lok P/N:
TH-428-SV
For Use in:
Thermoplastic
Specific Material Use:
N/A
Sub-Category:
N/A
Style:
Ultrasonic
Material:
Brass
System of Measurement:
Inch
Internal Thread:
1/4-28
External Thread:
N/A
Installed Length:
0.3
Drill Size:
See Dimensional Dwg
Tap Size:
N/A
Minimum Full Thread Depth:
N/A
Installation Tool P/N:
N/A
