40 taper direct mount rack
Mounts directly on the CNC machine or on a wall in any convenient location
Nylon inserts help protect tooling
Holds 7 tools
Heavy gauge steel
Tough, epoxy finish for long lasting protection
50 taper direct mount rack
Mounts directly on the CNC machine or on a wall in any convenient location
Nylon inserts help protect tooling
Holds 5 tools
Heavy gauge steel
Tough, epoxy finish for long lasting protection

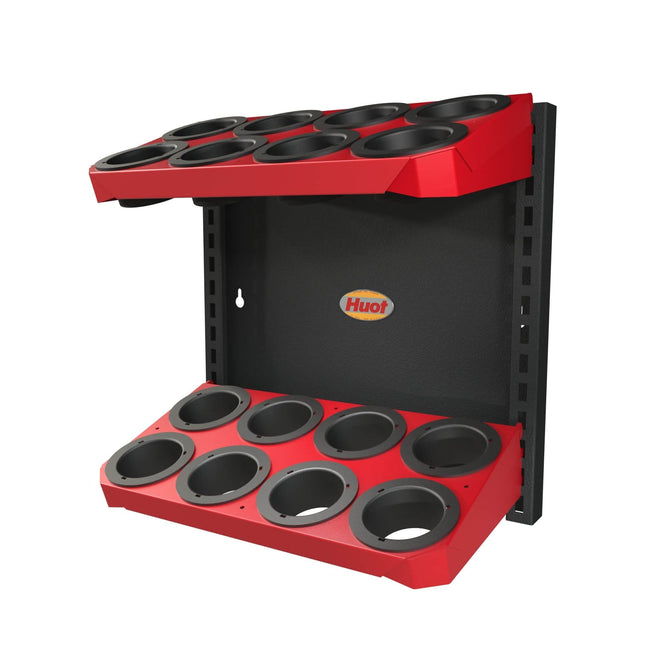

Heavy duty construction utilizing a 14 gauge steel base with 16 gauge steel shelves, finished with scratch resistant powder paint.
Low profile keeps shelves close to the machine – only protrudes 11″
14 slots per side for a variety of shelf height adjustments.
Shelves mount flat or at a -20˚ angle for easy tool presentation.
Durable nylon inserts (included) protect and securely hold toolholders.
6 mounting locations ensure a sturdy, solid fit to the machine.
Tool capacity – up to 16 tools total for HSK100A
The Huot Machine Mount Rack is a miniature version of our popular Wall Mount Tree, designed to mount on the front or side of your machine, enabling you to store and organize toolholders at your fingertips.

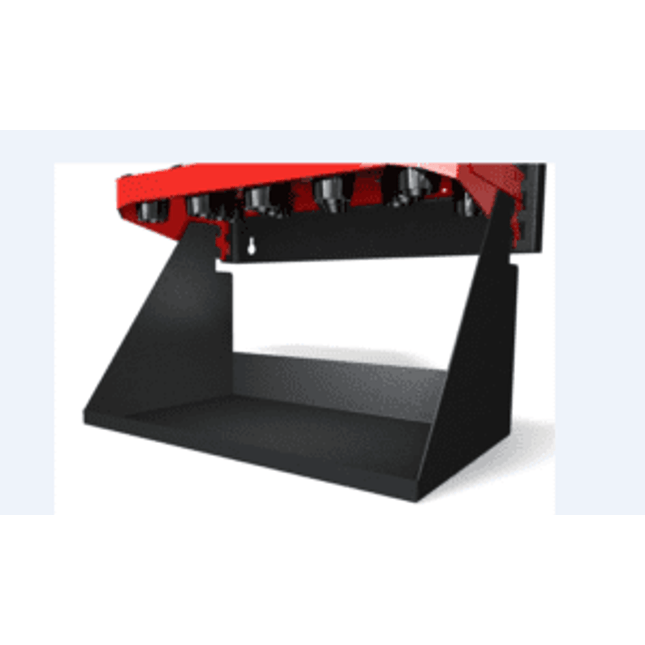

Increase the storage of your Huot Machine Mount Rack with this handy accessory tray. It’s great for keeping your constantly needed tools, spanner wrenches, parallels and cutters right within hands reach and easily mounts in the existing slots in your Machine Mount Rack. Simply insert the built-in tabs on the directly into the slots of the rack!
Heavy duty 16 gauge steel with textured black powder coat finish.

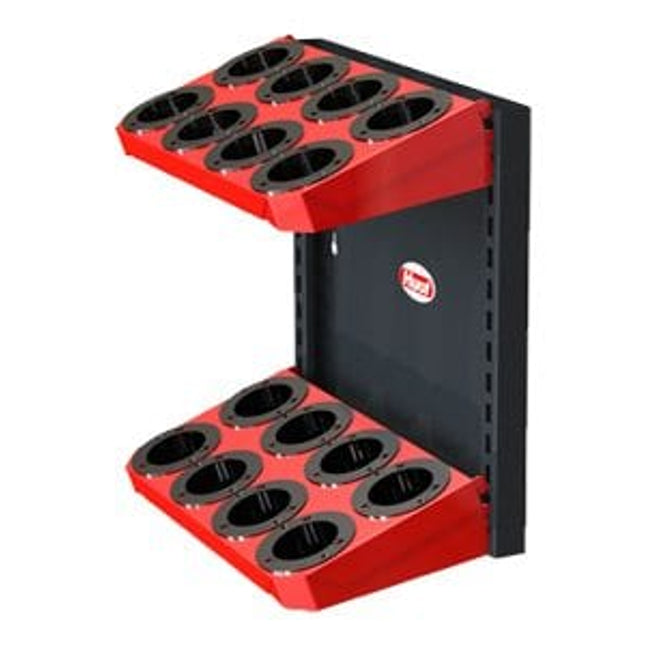

Heavy duty construction utilizing a 14 gauge steel base with 16 gauge steel shelves, finished with scratch resistant powder paint.
Low profile keeps shelves close to the machine – only protrudes 11″
14 slots per side for a variety of shelf height adjustments.
Shelves mount flat or at a -20˚ angle for easy tool presentation.
Durable nylon inserts (included) protect and securely hold toolholders.
6 mounting locations ensure a sturdy, solid fit to the machine or wall.
Large capacity – up to 16 tools total.
The Huot Machine Mount Rack is a miniature version of our popular Wall Mount Tree, designed to mount on the front or side of your machine, enabling you to store and organize toolholders at your fingertips.

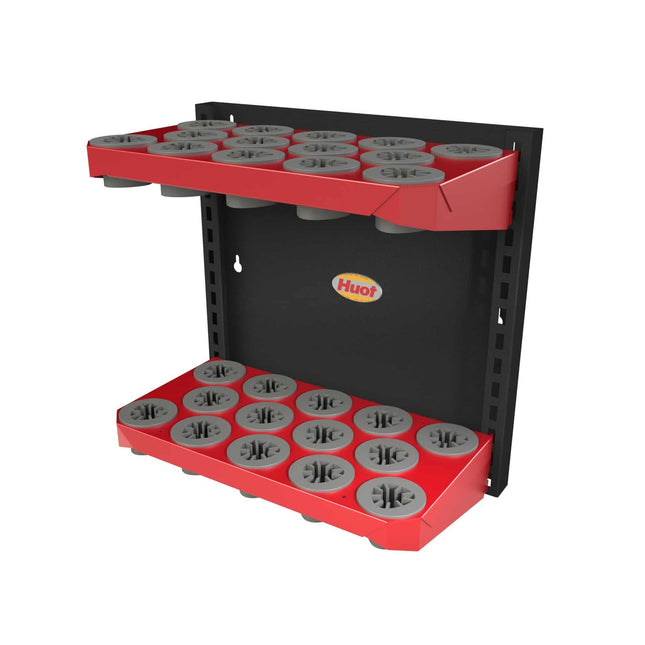

Heavy duty construction utilizing a 14 gauge steel base with 16 gauge steel shelves, finished with scratch resistant powder paint.
Low profile keeps shelves close to the machine – only protrudes 11″
14 slots per side for a variety of shelf height adjustments.
Shelves mount flat or at a -20˚ angle for easy tool presentation.
Durable nylon inserts (included) protect and securely hold toolholders.
6 mounting locations ensure a sturdy, solid fit to the machine or wall.
Large capacity – up to 28 tools total.
The Huot Machine Mount Rack is a miniature version of our popular Wall Mount Tree, designed to mount on the front or side of your machine, enabling you to store and organize toolholders at your fingertips.

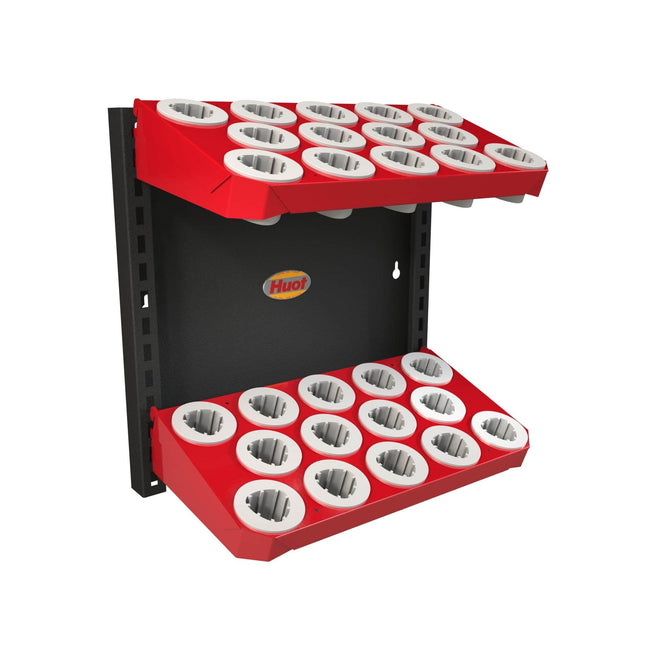

Heavy duty construction utilizing a 14 gauge steel base with 16 gauge steel shelves, finished with scratch resistant powder paint.
Low profile keeps shelves close to the machine – only protrudes 11″
14 slots per side for a variety of shelf height adjustments.
Shelves mount flat or at a -20˚ angle for easy tool presentation.
Durable nylon inserts (included) protect and securely hold toolholders.
6 mounting locations ensure a sturdy, solid fit to the machine or wall.
Large capacity – up to 28 tools total.
The Huot Machine Mount Rack is a miniature version of our popular Wall Mount Tree, designed to mount on the front or side of your machine, enabling you to store and organize toolholders at your fingertips.

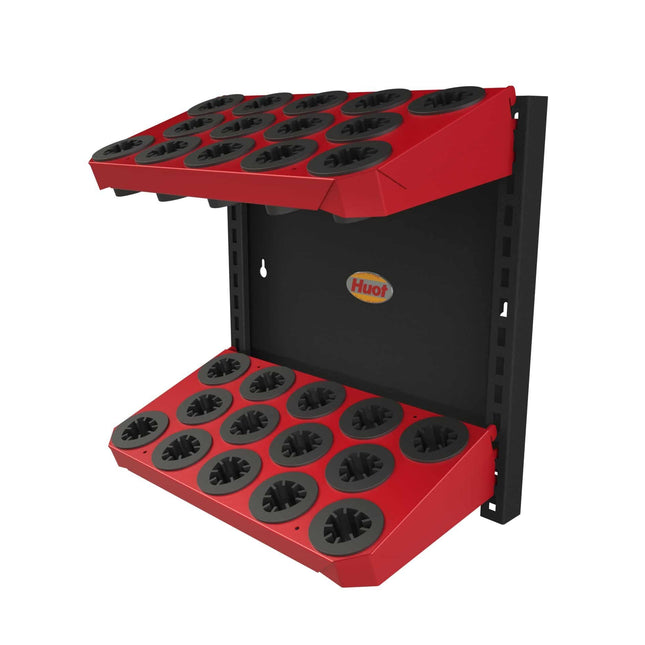

Heavy duty construction utilizing a 14 gauge steel base with 16 gauge steel shelves, finished with scratch resistant powder paint.
Low profile keeps shelves close to the machine – only protrudes 11″
14 slots per side for a variety of shelf height adjustments.
Shelves mount flat or at a -20˚ angle for easy tool presentation.
Durable nylon inserts (included) protect and securely hold toolholders.
6 mounting locations ensure a sturdy, solid fit to the machine or wall.
Large capacity – up to 28 tools total.
The Huot Machine Mount Rack is a miniature version of our popular Wall Mount Tree, designed to mount on the front or side of your machine, enabling you to store and organize toolholders at your fingertips.
#KM63 Toolholder Direct Mount Rack
Designed to hold up to seven KM63 toolholders.
Nylon inserts included to protect expensive toolholders.
Mounts directly on the CNC machine or on a wall in any convenient location.
Epoxy-coated, infra-red baked heavy gauge steel for durability.
Heavy duty construction utilizing a 14 gauge steel base with 16 gauge steel shelves, finished with scratch resistant powder paint.
Low profile keeps shelves close to the machine – only protrudes 11″
14 slots per side for a variety of shelf height adjustments.
Shelves mount flat or at a -20˚ angle for easy tool presentation.
Durable nylon inserts (included) protect and securely hold toolholders.
6 mounting locations ensure a sturdy, solid fit to the machine.
Large capacity – up to 28 HSK 63A tools
In addition to HSK63A, accommodates HSK80B & HSK80D toolholders
The Huot Machine Mount Rack is a miniature version of our popular Wall Mount Tree, designed to mount on the front or side of your machine, enabling you to store and organize toolholders at your fingertips.
CNC tool holder
V-Flange tool and ER collet rack puts all the tools you need for the job right where you want them. The table top design makes for easy storage and organization with minimal space requirements.
Features of the EDP #14728 toolholder collet rack include:
40 taper NC rack has spaces for 12 toolholders
Spaces for 12 ER 32 collets
Spaces for 12 ER 16 collets
Angled for easier selection of stored tools
Heavy gauge steel with tough, solvent free, powder coat finish
Dimensions are 12½”W x 16½”D x 7”H
Mounts on bench top or fits neatly inside standard 36″ industrial cabinet.
Made in the USA!
CNC tool holder
V-Flange tool and ER collet rack puts all the tools you need for the job right where you want them. The table top design makes for easy storage and organization with minimal space requirements.
Features of Huot EDP #14727 toolholder collet rack include:
30 taper NC rack has spaces for 12 toolholders
Spaces for 12 ER 32 collets
Spaces for 12 ER 16 collets
Angled for easier selection of stored tools
Heavy gauge steel with tough, solvent free, powder coat finish
Dimensions are 12½”W x 16½”D x 7”H
Mounts on bench top or fits neatly inside standard 36″ industrial cabinet.
Made in the USA!
For ER32 Collets
Capacity = 144
Drop in tray measures 23.5″ x 23.5″ and fits into a drawer of suitable size or will sit well on a bench top.
The drop in inserts are designed to fit within the existing drawers of your current set up.Sturdy 14 gauge steel construction ensures the proper support and fit of your tools. Red powder coat finish.
This simple product allows for organization using the existing furnishings in your facility.
For ER25 Collets
Capacity = 196
Drop in tray measures 23.5″ x 23.5″ and fits into a drawer of suitable size or will sit well on a bench top.
The drop in inserts are designed to fit within the existing drawers of your current set up.Sturdy 14 gauge steel construction ensures the proper support and fit of your tools. Red powder coat finish.
This simple product allows for organization using the existing furnishings in your facility.
For ER20 Collets
Capacity = 289
Drop in tray measures 23.5″ x 23.5″ and fits into a drawer of suitable size or will sit well on a bench top.
The drop in inserts are designed to fit within the existing drawers of your current set up.Sturdy 14 gauge steel construction ensures the proper support and fit of your tools. Red powder coat finish.
This simple product allows for organization using the existing furnishings in your facility.
For ER16 Collets
Capacity = 361
Drop in tray measures 23.5″ x 23.5″ and fits into a drawer of suitable size or will sit well on a bench top.
The drop in inserts are designed to fit within the existing drawers of your current set up.Sturdy 14 gauge steel construction ensures the proper support and fit of your tools. Red powder coat finish.
This simple product allows for organization using the existing furnishings in your facility.
For TG100 Collets
Capacity = 144
Drop in tray measures 23.5″ x 23.5″ and fits into a drawer of suitable size or will sit well on a bench top.
The drop in inserts are designed to fit within the existing drawers of your current set up.Sturdy 14 gauge steel construction ensures the proper support and fit of your tools. Red powder coat finish.
This simple product allows for organization using the existing furnishings in your facility.
For HSK100A CNC Toolholders
Capacity = 23
Drop in tray measures 23.5″ x 23.5″ and fits into a drawer of suitable size or will sit well on a bench top.
The drop in inserts are designed to fit within the existing drawers of your current set up.Sturdy 14 gauge steel construction ensures the proper support and fit of your tools. Red powder coat finish.
This simple product allows for organization using the existing furnishings in your facility.
Drop in tray measures 23.5″ x 23.5″ and fits into a drawer of suitable size or will sit well on a bench top. Designed to fit within the existing drawers of your current set up.
Sturdy 16 gauge steel construction with a red powder coat finish.
Supplied with 36 galvanized movable dividers. movable in 1″ increments.
This simple product allows for organization using the existing furnishings in your facility.
For HSK63A CNC Toolholders
Capacity = 42
Drop in tray measures 23.5″ x 23.5″ and fits into a drawer of suitable size or will sit well on a bench top.
The drop in inserts are designed to fit within the existing drawers of your current set up.Sturdy 14 gauge steel construction ensures the proper support and fit of your tools. Red powder coat finish.
This simple product allows for organization using the existing furnishings in your facility.
For Capto C6 Toolholders
Capacity = 42
Drop in tray measures 23.5″ x 23.5″ and fits into a drawer of suitable size or will sit well on a bench top.
The drop in inserts are designed to fit within the existing drawers of your current set up.Sturdy 14 gauge steel construction ensures the proper support and fit of your tools. Red powder coat finish.
This simple product allows for organization using the existing furnishings in your facility.
For Capto C5 Toolholders
Capacity = 42
Drop in tray measures 23.5″ x 23.5″ and fits into a drawer of suitable size or will sit well on a bench top.
The drop in inserts are designed to fit within the existing drawers of your current set up.Sturdy 14 gauge steel construction ensures the proper support and fit of your tools. Red powder coat finish.
This simple product allows for organization using the existing furnishings in your facility.
Although we build bench top several different toolholder sizes ranging from the common BT, CAT and HSK sizes to the most obscure, we don’t cover them all. With that in mind and knowing someone out there still needs our help, we’ve devised a platform just for them.
This customizable product bench top platform consists of a 3/8″ thick polycarbonate sheet secured to the a metal shelf. The shelf can have up to 18 custom openings up to 3.250″ in diameter.
EDP 14814 available with 24 openings per sheet with a maximum diameter of 2.188″
All you need to do is provide us with the dimension at the top of the longest plane (shown as D1 on the diagram shown here) on your toolholder and we’ll mill the holes in the polycarbonate to fit your need.
Although we build bench top several different toolholder sizes ranging from the common BT, CAT and HSK sizes to the most obscure, we don’t cover them all. With that in mind and knowing someone out there still needs our help, we’ve devised a platform just for them.
This customizable product bench top platform consists of a 3/8″ thick polycarbonate sheet secured to the a metal shelf. The shelf can have up to 24 custom openings up to 2.188″ in diameter.
EDP 14815 available with 18 openings per sheet with a maximum diameter of 3.250″
All you need to do is provide us with the dimension at the top of the longest plane (shown as D1 on the diagram shown here) on your toolholder and we’ll mill the holes in the polycarbonate to fit your need.
