E-Z Fin™ (Finserts) provide strong, metal threads in soft woods, like pine, composition board, and MDF, and most plastics. Firm, permanent fastening is achieved by distributing stress over a greater surface area, minimizing the possibility of splintering, splitting, and thread erosion.Machined out of brass, E-Z Fin™ (Finserts) are available in single, double or triple fin designs for varying material thicknesses. Internal threads sizes range from #6 to 5/16.Important Note: Hole size requirements may vary depending on a number of factors, including material and tools. We recommend that you test your particular application before ordering. We gladly supply free samples.Features:Easy press-in installationDesign minimizes splintering and splittingAvailable in 3 lengths for varying material thicknessesApplications:Soft woods: such as pine, composition board, and MDFMost Plastics
Specifications:
E-Z Lok P/N:
370-4-BR
For Use in:
Soft Wood, Thermoset Plastic, Thermoplastic
Specific Material Use:
N/A
Sub-Category:
N/A
Style:
Finsert
Material:
Brass
System of Measurement:
Inch
Internal Thread:
1/4-20
External Thread:
N/A
Installed Length:
0.56
Drill Size:
13/32
Tap Size:
N/A
Minimum Full Thread Depth:
N/A
Installation Tool P/N:
N/A

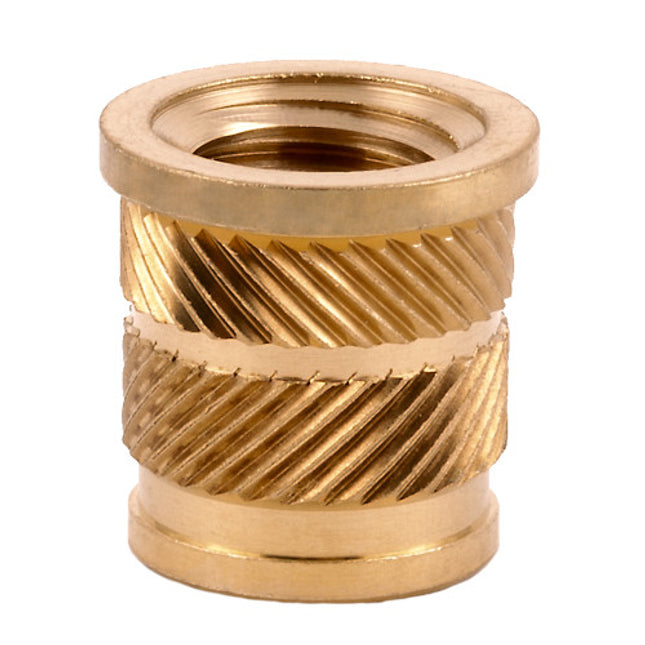

E-Z LOK’s E-Z Sonic™ ultrasonic threaded inserts are designed for post-molding installation in thermoplastic materials. Machined out of high quality brass and available with both inch and metric threads, our ultrasonic inserts are durable enough for the toughest environments and versatile enough to meet the needs of any application.
Features
Tapered and straight designs
Install ultrasonically or with heat driver
Superior torque and pull-out resistance
Inch or metric threads
Tapered design in single and double vane
Straight design in flush or flanged configuration
Applications:
Post-molding installation in thermoplastic materials
Installation:
Important Note: Hole size requirements may vary depending on a number of factors, including material and tools. We recommend you test your particular application before ordering. Contact us for free samples.
Specifications
E-Z Lok P/N:
FL-316-HI
For Use in:
Thermoplastic
Specific Material Use:
N/A
Sub-Category:
N/A
Style:
Ultrasonic
Material:
Brass
System of Measurement:
Inch
Internal Thread:
3/8-16
External Thread:
N/A
Installed Length:
0.56
Drill Size:
.469
Tap Size:
N/A
Minimum Full Thread Depth:
N/A
Installation Tool P/N:
N/A
E-Z LOK’s E-Z Sonic™ ultrasonic threaded inserts are designed for post-molding installation in thermoplastic materials. Machined out of high quality brass and available with both inch and metric threads, our ultrasonic inserts are durable enough for the toughest environments and versatile enough to meet the needs of any application.
Features
Tapered and straight designs
Install ultrasonically or with heat driver
Superior torque and pull-out resistance
Inch or metric threads
Tapered design in single and double vane
Straight design in flush or flanged configuration
Applications:
Post-molding installation in thermoplastic materials
Installation:
Important Note: Hole size requirements may vary depending on a number of factors, including material and tools. We recommend you test your particular application before ordering. Contact us for free samples.
Specifications
E-Z Lok P/N:
FL-316-HI
For Use in:
Thermoplastic
Specific Material Use:
N/A
Sub-Category:
N/A
Style:
Ultrasonic
Material:
Brass
System of Measurement:
Inch
Internal Thread:
3/8-16
External Thread:
N/A
Installed Length:
0.56
Drill Size:
.469
Tap Size:
N/A
Minimum Full Thread Depth:
N/A
Installation Tool P/N:
N/A
E-Z LOK’s E-Z Sonic™ ultrasonic threaded inserts are designed for post-molding installation in thermoplastic materials. Machined out of high quality brass and available with both inch and metric threads, our ultrasonic inserts are durable enough for the toughest environments and versatile enough to meet the needs of any application.
Features
Tapered and straight designs
Install ultrasonically or with heat driver
Superior torque and pull-out resistance
Inch or metric threads
Tapered design in single and double vane
Straight design in flush or flanged configuration
Applications:
Post-molding installation in thermoplastic materials
Installation:
Important Note: Hole size requirements may vary depending on a number of factors, including material and tools. We recommend you test your particular application before ordering. Contact us for free samples.
Specifications
E-Z Lok P/N:
DV-518-TH
For Use in:
Thermoplastic
Specific Material Use:
N/A
Sub-Category:
N/A
Style:
Ultrasonic
Material:
Brass
System of Measurement:
Inch
Internal Thread:
5/16-18
External Thread:
N/A
Installed Length:
0.56
Drill Size:
See Dimensional Dwg
Tap Size:
N/A
Minimum Full Thread Depth:
N/A
Installation Tool P/N:
N/A
E-Z Fin™ (Finserts) provide strong, metal threads in soft woods, like pine, composition board, and MDF, and most plastics. Firm, permanent fastening is achieved by distributing stress over a greater surface area, minimizing the possibility of splintering, splitting, and thread erosion.Machined out of brass, E-Z Fin™ (Finserts) are available in single, double or triple fin designs for varying material thicknesses. Internal threads sizes range from #6 to 5/16.Important Note: Hole size requirements may vary depending on a number of factors, including material and tools. We recommend that you test your particular application before ordering. We gladly supply free samples.Features:Easy press-in installationDesign minimizes splintering and splittingAvailable in 3 lengths for varying material thicknessesApplications:Soft woods: such as pine, composition board, and MDFMost Plastics
Specifications:
E-Z Lok P/N:
370-5-BR
For Use in:
Soft Wood, Thermoset Plastic, Thermoplastic
Specific Material Use:
N/A
Sub-Category:
N/A
Style:
Finsert
Material:
Brass
System of Measurement:
Inch
Internal Thread:
5/16-18
External Thread:
N/A
Installed Length:
0.56
Drill Size:
15/32
Tap Size:
N/A
Minimum Full Thread Depth:
N/A
Installation Tool P/N:
N/A
E-Z Fin™ (Finserts) provide strong, metal threads in soft woods, like pine, composition board, and MDF, and most plastics. Firm, permanent fastening is achieved by distributing stress over a greater surface area, minimizing the possibility of splintering, splitting, and thread erosion.Machined out of brass, E-Z Fin™ (Finserts) are available in single, double or triple fin designs for varying material thicknesses. Internal threads sizes range from #6 to 5/16.Important Note: Hole size requirements may vary depending on a number of factors, including material and tools. We recommend that you test your particular application before ordering. We gladly supply free samples.Features:Easy press-in installationDesign minimizes splintering and splittingAvailable in 3 lengths for varying material thicknessesApplications:Soft woods: such as pine, composition board, and MDFMost Plastics
Specifications:
E-Z Lok P/N:
370-332-BR
For Use in:
Soft Wood, Thermoset Plastic, Thermoplastic
Specific Material Use:
N/A
Sub-Category:
N/A
Style:
Finsert
Material:
Brass
System of Measurement:
Inch
Internal Thread:
10-32
External Thread:
N/A
Installed Length:
0.56
Drill Size:
11/32
Tap Size:
N/A
Minimum Full Thread Depth:
N/A
Installation Tool P/N:
N/A
E-Z LOK Drive Tools speed the installation of solid threaded inserts for metal, Knife Thread Inserts for hard wood and Hex Drive Thread Inserts for soft wood. A standard hex shaft allows for the use of power drills or drill presses in higher volume installations. Both styles quickly drive in the inserts without time consuming thread engagement.Features:Quickly install E-Z LOK slotted inserts, without engaging the internal threadUse with Solid Threaded Inserts, Knife Thread Inserts, and Hex Drive InsertsFits standard power drills and drill pressesQuickly install inserts without engaging internal threadsApplications:Quickly installing Solid Threaded Inserts, Knife Thread Inserts, and Hex Drive Inserts
Specifications:
E-Z Lok P/N:
319-720
For Use in:
Metal
Specific Material Use:
N/A
Sub-Category:
Thin Wall
Style:
Solid Wall
Material:
Steel - Carbon
System of Measurement:
Inch
Internal Thread:
7/16-20
External Thread:
9/16-12
Installed Length:
0.56
Drill Size:
33/64
Tap Size:
9/16-12
Minimum Full Thread Depth:
0.62
Installation Tool P/N:
500-6
E-Z LOK Drive Tools speed the installation of solid threaded inserts for metal, Knife Thread Inserts for hard wood and Hex Drive Thread Inserts for soft wood. A standard hex shaft allows for the use of power drills or drill presses in higher volume installations. Both styles quickly drive in the inserts without time consuming thread engagement.Features:Quickly install E-Z LOK slotted inserts, without engaging the internal threadUse with Solid Threaded Inserts, Knife Thread Inserts, and Hex Drive InsertsFits standard power drills and drill pressesQuickly install inserts without engaging internal threadsApplications:Quickly installing Solid Threaded Inserts, Knife Thread Inserts, and Hex Drive Inserts
Specifications:
E-Z Lok P/N:
319-7
For Use in:
Metal
Specific Material Use:
N/A
Sub-Category:
Thin Wall
Style:
Solid Wall
Material:
Steel - Carbon
System of Measurement:
Inch
Internal Thread:
7/16-14
External Thread:
9/16-12
Installed Length:
0.56
Drill Size:
33/64
Tap Size:
9/16-12
Minimum Full Thread Depth:
0.62
Installation Tool P/N:
500-6
E-Z LOK Drive Tools speed the installation of solid threaded inserts for metal, Knife Thread Inserts for hard wood and Hex Drive Thread Inserts for soft wood. A standard hex shaft allows for the use of power drills or drill presses in higher volume installations. Both styles quickly drive in the inserts without time consuming thread engagement.Features:Quickly install E-Z LOK slotted inserts, without engaging the internal threadUse with Solid Threaded Inserts, Knife Thread Inserts, and Hex Drive InsertsFits standard power drills and drill pressesQuickly install inserts without engaging internal threadsApplications:Quickly installing Solid Threaded Inserts, Knife Thread Inserts, and Hex Drive Inserts
Specifications:
E-Z Lok P/N:
313-720
For Use in:
Metal
Specific Material Use:
N/A
Sub-Category:
Thin Wall
Style:
Solid Wall
Material:
Steel - Stainless
System of Measurement:
Inch
Internal Thread:
7/16-20
External Thread:
9/16-18
Installed Length:
0.56
Drill Size:
33/64
Tap Size:
9/16-18
Minimum Full Thread Depth:
0.62
Installation Tool P/N:
500-5
E-Z LOK Drive Tools speed the installation of solid threaded inserts for metal, Knife Thread Inserts for hard wood and Hex Drive Thread Inserts for soft wood. A standard hex shaft allows for the use of power drills or drill presses in higher volume installations. Both styles quickly drive in the inserts without time consuming thread engagement.Features:Quickly install E-Z LOK slotted inserts, without engaging the internal threadUse with Solid Threaded Inserts, Knife Thread Inserts, and Hex Drive InsertsFits standard power drills and drill pressesQuickly install inserts without engaging internal threadsApplications:Quickly installing Solid Threaded Inserts, Knife Thread Inserts, and Hex Drive Inserts
Specifications:
E-Z Lok P/N:
313-7
For Use in:
Metal
Specific Material Use:
N/A
Sub-Category:
Thin Wall
Style:
Solid Wall
Material:
Steel - Stainless
System of Measurement:
Inch
Internal Thread:
7/16-14
External Thread:
9/16-18
Installed Length:
0.56
Drill Size:
33/64
Tap Size:
9/16-18
Minimum Full Thread Depth:
0.62
Installation Tool P/N:
500-5
E-Z Press™ inserts are threaded inserts designed for post-molding installation in either thermoset plastics or thermoplastics. A slotted design with diamond-knurled OD allows for “cold” installation with optimum torque/pull-out resistance. Cold installation of threaded inserts reduces the cost of moldings and eliminates the need to “chase” threads after molding.Our E-Z Press™ inserts are available in three styles: flush, flanged, and reverse slot. All three types press into place for fast, easy installation. Anything from a rubber mallet to an arbor press can be used for installation.Features:Install coldReduce the cost of moldingsCut reject waste caused by misaligned and faulty insertsEliminate the need to “chase” threads after moldingInstall properly without a precise hole depthInstall properly without a precise hole depthApplications:Post-molding installation in either thermoset plastics or thermoplastics
Specifications:
E-Z Lok P/N:
260-5-BR
For Use in:
Thermoset Plastic, Thermoplastic
Specific Material Use:
N/A
Sub-Category:
N/A
Style:
Press-In
Material:
Brass
System of Measurement:
Inch
Internal Thread:
5/16-18
External Thread:
N/A
Installed Length:
0.56
Drill Size:
3/8
Tap Size:
N/A
Minimum Full Thread Depth:
N/A
Installation Tool P/N:
N/A
E-Z Press™ inserts are threaded inserts designed for post-molding installation in either thermoset plastics or thermoplastics. A slotted design with diamond-knurled OD allows for “cold” installation with optimum torque/pull-out resistance. Cold installation of threaded inserts reduces the cost of moldings and eliminates the need to “chase” threads after molding.Our E-Z Press™ inserts are available in three styles: flush, flanged, and reverse slot. All three types press into place for fast, easy installation. Anything from a rubber mallet to an arbor press can be used for installation.Features:Install coldReduce the cost of moldingsCut reject waste caused by misaligned and faulty insertsEliminate the need to “chase” threads after moldingInstall properly without a precise hole depthInstall properly without a precise hole depthApplications:Post-molding installation in either thermoset plastics or thermoplastics
Specifications:
E-Z Lok P/N:
240-5-CR
For Use in:
Thermoset Plastic, Thermoplastic
Specific Material Use:
N/A
Sub-Category:
N/A
Style:
Press-In
Material:
Steel - Stainless
System of Measurement:
Inch
Internal Thread:
5/16-18
External Thread:
N/A
Installed Length:
0.56
Drill Size:
3/8
Tap Size:
N/A
Minimum Full Thread Depth:
N/A
Installation Tool P/N:
N/A
E-Z Press™ inserts are threaded inserts designed for post-molding installation in either thermoset plastics or thermoplastics. A slotted design with diamond-knurled OD allows for “cold” installation with optimum torque/pull-out resistance. Cold installation of threaded inserts reduces the cost of moldings and eliminates the need to “chase” threads after molding.Our E-Z Press™ inserts are available in three styles: flush, flanged, and reverse slot. All three types press into place for fast, easy installation. Anything from a rubber mallet to an arbor press can be used for installation.Features:Install coldReduce the cost of moldingsCut reject waste caused by misaligned and faulty insertsEliminate the need to “chase” threads after moldingInstall properly without a precise hole depthInstall properly without a precise hole depthApplications:Post-molding installation in either thermoset plastics or thermoplastics
Specifications:
E-Z Lok P/N:
240-5-BR
For Use in:
Thermoset Plastic, Thermoplastic
Specific Material Use:
N/A
Sub-Category:
N/A
Style:
Press-In
Material:
Brass
System of Measurement:
Inch
Internal Thread:
5/16-18
External Thread:
N/A
Installed Length:
0.56
Drill Size:
3/8
Tap Size:
N/A
Minimum Full Thread Depth:
N/A
Installation Tool P/N:
N/A

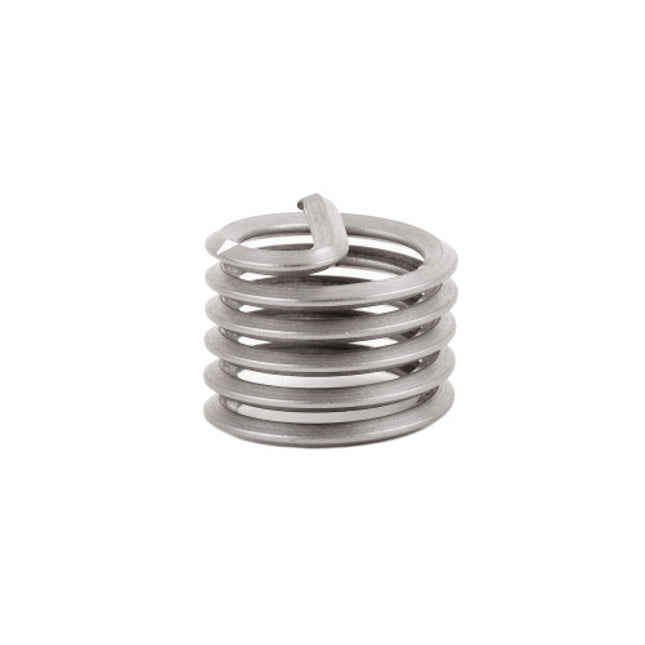

E-Z Coil™ inserts – also known as wire or helical threaded inserts – quickly repair or reinforce tapped holes in soft metals. Made from 18-8 stainless steel wire, E-Z Coil™ inserts provide strong internal threads that are corrosion resistant and withstand temperatures to 800°F.
E-Z Coil™ inserts are made of 18-8 stainless steel wire. The wire is formed into a diamond pattern and then wound into a spring. Before being installed, the insert diameter is larger than the tapped hole. The insert diameter is reduced during installation, allowing the insert to thread into the hole. Once properly installed, the radial pressure of the released insert holds the insert firmly in place.Features:Quickly repair damaged threads in soft metalProtect tapped holes from stripping and wearMade from corrosion-resistant 18-8 stainless steelApplications:Soft metals: aluminum, cast iron, magnesium, etc.
Specifications:
E-Z Lok P/N:
31310
For Use in:
Metal
Specific Material Use:
N/A
Sub-Category:
Standard Coil
Style:
Coil
Material:
Steel - Stainless
System of Measurement:
Inch
Internal Thread:
9/16-18
External Thread:
N/A
Installed Length:
0.56
Drill Size:
37/64
Tap Size:
9/16-18 STI
Minimum Full Thread Depth:
0.78
Installation Tool P/N:
M1017
E-Z Coil™ inserts – also known as wire or helical threaded inserts – quickly repair or reinforce tapped holes in soft metals. Made from 18-8 stainless steel wire, E-Z Coil™ inserts provide strong internal threads that are corrosion resistant and withstand temperatures to 800°F.
E-Z Coil™ inserts are made of 18-8 stainless steel wire. The wire is formed into a diamond pattern and then wound into a spring. Before being installed, the insert diameter is larger than the tapped hole. The insert diameter is reduced during installation, allowing the insert to thread into the hole. Once properly installed, the radial pressure of the released insert holds the insert firmly in place.Features:Quickly repair damaged threads in soft metalProtect tapped holes from stripping and wearMade from corrosion-resistant 18-8 stainless steelApplications:Soft metals: aluminum, cast iron, magnesium, etc.
Specifications:
E-Z Lok P/N:
31015
For Use in:
Metal
Specific Material Use:
N/A
Sub-Category:
Standard Coil
Style:
Coil
Material:
Steel - Stainless
System of Measurement:
Inch
Internal Thread:
3/8-24
External Thread:
N/A
Installed Length:
0.56
Drill Size:
25/64
Tap Size:
3/8-24 STI
Minimum Full Thread Depth:
0.54
Installation Tool P/N:
M1013
E-Z Coil™ inserts – also known as wire or helical threaded inserts – quickly repair or reinforce tapped holes in soft metals. Made from 18-8 stainless steel wire, E-Z Coil™ inserts provide strong internal threads that are corrosion resistant and withstand temperatures to 800°F.
E-Z Coil™ inserts are made of 18-8 stainless steel wire. The wire is formed into a diamond pattern and then wound into a spring. Before being installed, the insert diameter is larger than the tapped hole. The insert diameter is reduced during installation, allowing the insert to thread into the hole. Once properly installed, the radial pressure of the released insert holds the insert firmly in place.
Features
Quickly repair damaged threads in soft metal
Protect tapped holes from stripping and wear
Made from corrosion resistant 18-8 stainless steel
Applications:
Soft metals: aluminum, cast iron, magnesium, etc.
Specifications
E-Z Lok P/N:
21310
For Use in:
Metal
Specific Material Use:
N/A
Sub-Category:
Standard Coil
Style:
Coil
Material:
Steel - Stainless
System of Measurement:
Inch
Internal Thread:
9/16-12
External Thread:
N/A
Installed Length:
0.56
Drill Size:
37/64
Tap Size:
9/16-12 STI
Minimum Full Thread Depth:
0.9
Installation Tool P/N:
M1015
E-Z Coil™ inserts – also known as wire or helical threaded inserts – quickly repair or reinforce tapped holes in soft metals. Made from 18-8 stainless steel wire, E-Z Coil™ inserts provide strong internal threads that are corrosion resistant and withstand temperatures to 800°F.
E-Z Coil™ inserts are made of 18-8 stainless steel wire. The wire is formed into a diamond pattern and then wound into a spring. Before being installed, the insert diameter is larger than the tapped hole. The insert diameter is reduced during installation, allowing the insert to thread into the hole. Once properly installed, the radial pressure of the released insert holds the insert firmly in place.
Features
Quickly repair damaged threads in soft metal
Protect tapped holes from stripping and wear
Made from corrosion resistant 18-8 stainless steel
Applications:
Soft metals: aluminum, cast iron, magnesium, etc.
Specifications
E-Z Lok P/N:
21015
For Use in:
Metal
Specific Material Use:
N/A
Sub-Category:
Standard Coil
Style:
Coil
Material:
Steel - Stainless
System of Measurement:
Inch
Internal Thread:
3/8-16
External Thread:
N/A
Installed Length:
0.56
Drill Size:
25/64
Tap Size:
3/8-16 STI
Minimum Full Thread Depth:
0.63
Installation Tool P/N:
M1012
