E-Z LOK Drive Tools speed the installation of solid threaded inserts for metal, Knife Thread Inserts for hard wood and Hex Drive Thread Inserts for soft wood. A standard hex shaft allows for the use of power drills or drill presses in higher volume installations. Both styles quickly drive in the inserts without time consuming thread engagement.Features:Quickly install E-Z LOK slotted inserts, without engaging the internal threadUse with Solid Threaded Inserts, Knife Thread Inserts, and Hex Drive InsertsFits standard power drills and drill pressesQuickly install inserts without engaging internal threadsApplications:Quickly installing Solid Threaded Inserts, Knife Thread Inserts, and Hex Drive Inserts
Specifications:
E-Z Lok P/N:
329-1406
For Use in:
Metal
Specific Material Use:
N/A
Sub-Category:
Automotive
Style:
Solid Wall
Material:
Steel - Carbon
System of Measurement:
Metric
Internal Thread:
M14-1.25
External Thread:
N/A
Installed Length:
8
Drill Size:
11/16
Tap Size:
3/4-16
Minimum Full Thread Depth:
N/A
Installation Tool P/N:
N/A
E-Z LOK Drive Tools speed the installation of solid threaded inserts for metal, Knife Thread Inserts for hard wood and Hex Drive Thread Inserts for soft wood. A standard hex shaft allows for the use of power drills or drill presses in higher volume installations. Both styles quickly drive in the inserts without time consuming thread engagement.Features:Quickly install E-Z LOK slotted inserts, without engaging the internal threadUse with Solid Threaded Inserts, Knife Thread Inserts, and Hex Drive InsertsFits standard power drills and drill pressesQuickly install inserts without engaging internal threadsApplications:Quickly installing Solid Threaded Inserts, Knife Thread Inserts, and Hex Drive Inserts
Specifications:
E-Z Lok P/N:
750-14
For Use in:
Metal
Specific Material Use:
N/A
Sub-Category:
Automotive
Style:
Solid Wall
Material:
Steel - Carbon
System of Measurement:
Metric
Internal Thread:
M14-1.25
External Thread:
M18-1.5
Installed Length:
12
Drill Size:
16.5
Tap Size:
M18-1.5
Minimum Full Thread Depth:
13.25
Installation Tool P/N:
N/A
E-Z LOK Drive Tools speed the installation of solid threaded inserts for metal, Knife Thread Inserts for hard wood and Hex Drive Thread Inserts for soft wood. A standard hex shaft allows for the use of power drills or drill presses in higher volume installations. Both styles quickly drive in the inserts without time consuming thread engagement.Features:Quickly install E-Z LOK slotted inserts, without engaging the internal threadUse with Solid Threaded Inserts, Knife Thread Inserts, and Hex Drive InsertsFits standard power drills and drill pressesQuickly install inserts without engaging internal threadsApplications:Quickly installing Solid Threaded Inserts, Knife Thread Inserts, and Hex Drive Inserts
Specifications:
E-Z Lok P/N:
329-1412
For Use in:
Metal
Specific Material Use:
N/A
Sub-Category:
Automotive
Style:
Solid Wall
Material:
Steel - Carbon
System of Measurement:
Metric
Internal Thread:
M14-1.25
External Thread:
N/A
Installed Length:
18
Drill Size:
11/16
Tap Size:
3/4-16
Minimum Full Thread Depth:
N/A
Installation Tool P/N:
Install Tool Not Available
E-Z LOK Drive Tools speed the installation of solid threaded inserts for metal, Knife Thread Inserts for hard wood and Hex Drive Thread Inserts for soft wood. A standard hex shaft allows for the use of power drills or drill presses in higher volume installations. Both styles quickly drive in the inserts without time consuming thread engagement.Features:Quickly install E-Z LOK slotted inserts, without engaging the internal threadUse with Solid Threaded Inserts, Knife Thread Inserts, and Hex Drive InsertsFits standard power drills and drill pressesQuickly install inserts without engaging internal threadsApplications:Quickly installing Solid Threaded Inserts, Knife Thread Inserts, and Hex Drive Inserts
Specifications:
E-Z Lok P/N:
329-1408
For Use in:
Metal
Specific Material Use:
N/A
Sub-Category:
Automotive
Style:
Solid Wall
Material:
Steel - Carbon
System of Measurement:
Metric
Internal Thread:
M14-1.25
External Thread:
N/A
Installed Length:
12
Drill Size:
11/16
Tap Size:
3/4-16
Minimum Full Thread Depth:
N/A
Installation Tool P/N:
N/A

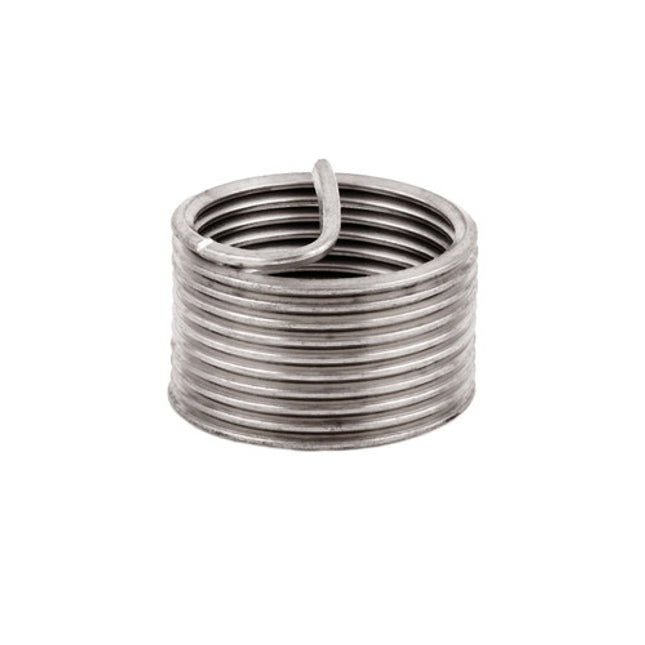

E-Z Coil™ inserts – also known as wire or helical threaded inserts – quickly repair or reinforce tapped holes in soft metals. Made from 18-8 stainless steel wire, E-Z Coil™ inserts provide strong internal threads that are corrosion resistant and withstand temperatures to 800°F.
E-Z Coil™ inserts are made of 18-8 stainless steel wire. The wire is formed into a diamond pattern and then wound into a spring. Before being installed, the insert diameter is larger than the tapped hole. The insert diameter is reduced during installation, allowing the insert to thread into the hole. Once properly installed, the radial pressure of the released insert holds the insert firmly in place.Features:Quickly repair damaged threads in soft metalProtect tapped holes from stripping and wearMade from corrosion-resistant 18-8 stainless steelApplications:Soft metals: aluminum, cast iron, magnesium, etc.
Specifications:
E-Z Lok P/N:
51136
For Use in:
Metal
Specific Material Use:
N/A
Sub-Category:
Automotive
Style:
Coil
Material:
Steel - Stainless
System of Measurement:
Metric
Internal Thread:
M14-1.25
External Thread:
N/A
Installed Length:
17
Drill Size:
14.3
Tap Size:
M14-1.25 STI
Minimum Full Thread Depth:
20
Installation Tool P/N:
M1017

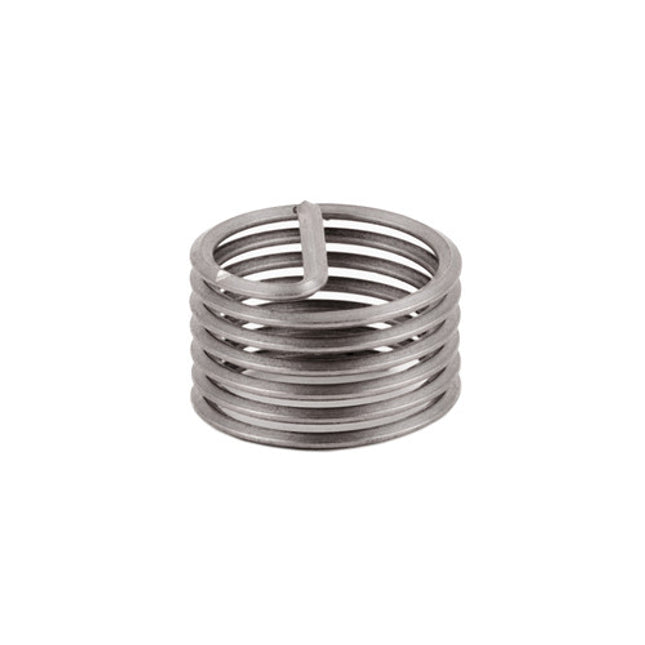

E-Z Coil™ inserts – also known as wire or helical threaded inserts – quickly repair or reinforce tapped holes in soft metals. Made from 18-8 stainless steel wire, E-Z Coil™ inserts provide strong internal threads that are corrosion resistant and withstand temperatures to 800°F.
E-Z Coil™ inserts are made of 18-8 stainless steel wire. The wire is formed into a diamond pattern and then wound into a spring. Before being installed, the insert diameter is larger than the tapped hole. The insert diameter is reduced during installation, allowing the insert to thread into the hole. Once properly installed, the radial pressure of the released insert holds the insert firmly in place.Features:Quickly repair damaged threads in soft metalProtect tapped holes from stripping and wearMade from corrosion-resistant 18-8 stainless steelApplications:Soft metals: aluminum, cast iron, magnesium, etc.
Specifications:
E-Z Lok P/N:
51134
For Use in:
Metal
Specific Material Use:
N/A
Sub-Category:
Automotive
Style:
Coil
Material:
Steel - Stainless
System of Measurement:
Metric
Internal Thread:
M14-1.25
External Thread:
N/A
Installed Length:
11
Drill Size:
14.3
Tap Size:
M14-1.25 STI
Minimum Full Thread Depth:
20
Installation Tool P/N:
M1017

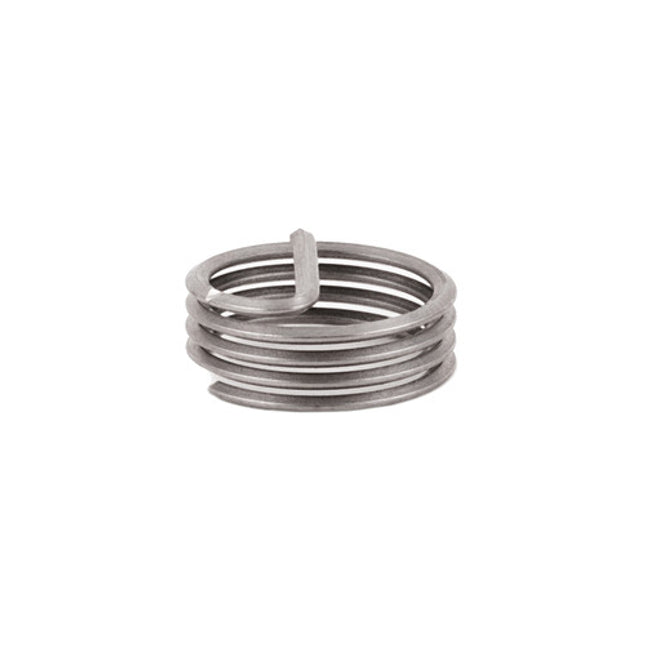

E-Z Coil™ inserts – also known as wire or helical threaded inserts – quickly repair or reinforce tapped holes in soft metals. Made from 18-8 stainless steel wire, E-Z Coil™ inserts provide strong internal threads that are corrosion resistant and withstand temperatures to 800°F.
E-Z Coil™ inserts are made of 18-8 stainless steel wire. The wire is formed into a diamond pattern and then wound into a spring. Before being installed, the insert diameter is larger than the tapped hole. The insert diameter is reduced during installation, allowing the insert to thread into the hole. Once properly installed, the radial pressure of the released insert holds the insert firmly in place.Features:Quickly repair damaged threads in soft metalProtect tapped holes from stripping and wearMade from corrosion-resistant 18-8 stainless steelApplications:Soft metals: aluminum, cast iron, magnesium, etc.
Specifications:
E-Z Lok P/N:
51132
For Use in:
Metal
Specific Material Use:
N/A
Sub-Category:
Automotive
Style:
Coil
Material:
Steel - Stainless
System of Measurement:
Metric
Internal Thread:
M14-1.25
External Thread:
N/A
Installed Length:
7
Drill Size:
14.3
Tap Size:
M14-1.25 STI
Minimum Full Thread Depth:
20
Installation Tool P/N:
M1017
