E-Z LOK Drive Tools speed the installation of solid threaded inserts for metal, Knife Thread Inserts for hard wood and Hex Drive Thread Inserts for soft wood. A standard hex shaft allows for the use of power drills or drill presses in higher volume installations. Both styles quickly drive in the inserts without time consuming thread engagement.Features:Quickly install E-Z LOK slotted inserts, without engaging the internal threadUse with Solid Threaded Inserts, Knife Thread Inserts, and Hex Drive InsertsFits standard power drills and drill pressesQuickly install inserts without engaging internal threadsApplications:Quickly installing Solid Threaded Inserts, Knife Thread Inserts, and Hex Drive Inserts
Specifications:
E-Z Lok P/N:
329-7
For Use in:
Metal
Specific Material Use:
N/A
Sub-Category:
Standard Wall
Style:
Solid Wall
Material:
Steel - Carbon
System of Measurement:
Inch
Internal Thread:
7/16-14
External Thread:
5/8-11
Installed Length:
0.66
Drill Size:
17/32
Tap Size:
5/8-11
Minimum Full Thread Depth:
0.719
Installation Tool P/N:
500-6
E-Z LOK Drive Tools speed the installation of solid threaded inserts for metal, Knife Thread Inserts for hard wood and Hex Drive Thread Inserts for soft wood. A standard hex shaft allows for the use of power drills or drill presses in higher volume installations. Both styles quickly drive in the inserts without time consuming thread engagement.Features:Quickly install E-Z LOK slotted inserts, without engaging the internal threadUse with Solid Threaded Inserts, Knife Thread Inserts, and Hex Drive InsertsFits standard power drills and drill pressesQuickly install inserts without engaging internal threadsApplications:Quickly installing Solid Threaded Inserts, Knife Thread Inserts, and Hex Drive Inserts
Specifications:
E-Z Lok P/N:
319-7
For Use in:
Metal
Specific Material Use:
N/A
Sub-Category:
Thin Wall
Style:
Solid Wall
Material:
Steel - Carbon
System of Measurement:
Inch
Internal Thread:
7/16-14
External Thread:
9/16-12
Installed Length:
0.56
Drill Size:
33/64
Tap Size:
9/16-12
Minimum Full Thread Depth:
0.62
Installation Tool P/N:
500-6
E-Z LOK Drive Tools speed the installation of solid threaded inserts for metal, Knife Thread Inserts for hard wood and Hex Drive Thread Inserts for soft wood. A standard hex shaft allows for the use of power drills or drill presses in higher volume installations. Both styles quickly drive in the inserts without time consuming thread engagement.Features:Quickly install E-Z LOK slotted inserts, without engaging the internal threadUse with Solid Threaded Inserts, Knife Thread Inserts, and Hex Drive InsertsFits standard power drills and drill pressesQuickly install inserts without engaging internal threadsApplications:Quickly installing Solid Threaded Inserts, Knife Thread Inserts, and Hex Drive Inserts
Specifications:
E-Z Lok P/N:
313-7
For Use in:
Metal
Specific Material Use:
N/A
Sub-Category:
Thin Wall
Style:
Solid Wall
Material:
Steel - Stainless
System of Measurement:
Inch
Internal Thread:
7/16-14
External Thread:
9/16-18
Installed Length:
0.56
Drill Size:
33/64
Tap Size:
9/16-18
Minimum Full Thread Depth:
0.62
Installation Tool P/N:
500-5
E-Z LOK Drive Tools speed the installation of solid threaded inserts for metal, Knife Thread Inserts for hard wood and Hex Drive Thread Inserts for soft wood. A standard hex shaft allows for the use of power drills or drill presses in higher volume installations. Both styles quickly drive in the inserts without time consuming thread engagement.Features:Quickly install E-Z LOK slotted inserts, without engaging the internal threadUse with Solid Threaded Inserts, Knife Thread Inserts, and Hex Drive InsertsFits standard power drills and drill pressesQuickly install inserts without engaging internal threadsApplications:Quickly installing Solid Threaded Inserts, Knife Thread Inserts, and Hex Drive Inserts
Specifications:
E-Z Lok P/N:
303-7
For Use in:
Metal
Specific Material Use:
N/A
Sub-Category:
Standard Wall
Style:
Solid Wall
Material:
Steel - Stainless
System of Measurement:
Inch
Internal Thread:
7/16-14
External Thread:
5/8-11
Installed Length:
0.66
Drill Size:
17/32
Tap Size:
5/8-11
Minimum Full Thread Depth:
0.719
Installation Tool P/N:
500-6

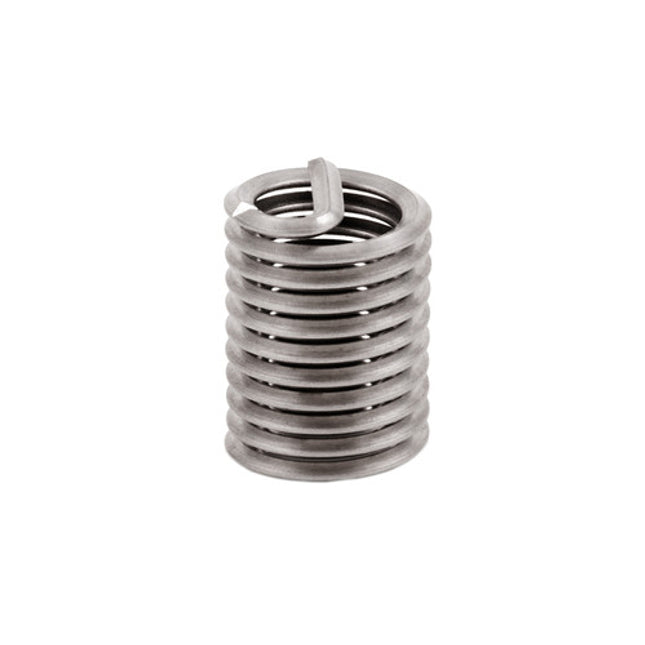

E-Z Coil™ inserts – also known as wire or helical threaded inserts – quickly repair or reinforce tapped holes in soft metals. Made from 18-8 stainless steel wire, E-Z Coil™ inserts provide strong internal threads that are corrosion resistant and withstand temperatures to 800°F.
E-Z Coil™ inserts are made of 18-8 stainless steel wire. The wire is formed into a diamond pattern and then wound into a spring. Before being installed, the insert diameter is larger than the tapped hole. The insert diameter is reduced during installation, allowing the insert to thread into the hole. Once properly installed, the radial pressure of the released insert holds the insert firmly in place.
Features
Quickly repair damaged threads in soft metal
Protect tapped holes from stripping and wear
Made from corrosion resistant 18-8 stainless steel
Applications:
Soft metals: aluminum, cast iron, magnesium, etc.
Specifications
E-Z Lok P/N:
21120
For Use in:
Metal
Specific Material Use:
N/A
Sub-Category:
Standard Coil
Style:
Coil
Material:
Steel - Stainless
System of Measurement:
Inch
Internal Thread:
7/16-14
External Thread:
N/A
Installed Length:
0.88
Drill Size:
29/64
Tap Size:
7/16-14 STI
Minimum Full Thread Depth:
0.72
Installation Tool P/N:
M1014

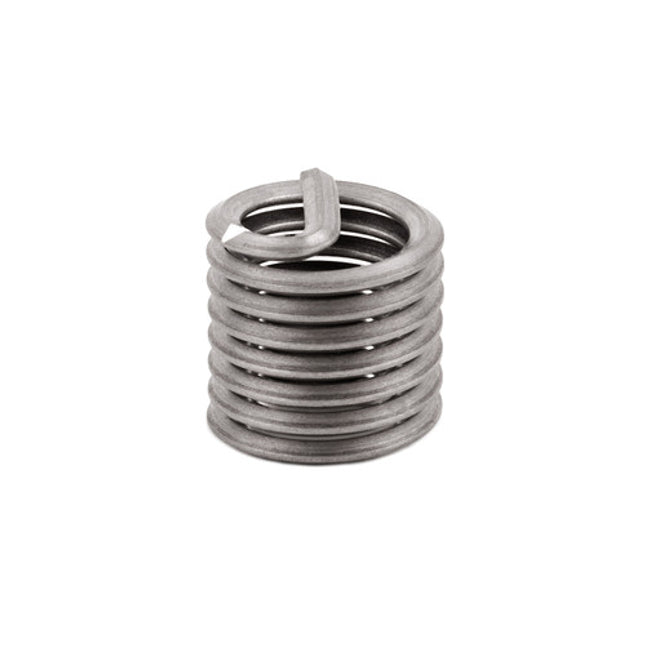

E-Z Coil™ inserts – also known as wire or helical threaded inserts – quickly repair or reinforce tapped holes in soft metals. Made from 18-8 stainless steel wire, E-Z Coil™ inserts provide strong internal threads that are corrosion resistant and withstand temperatures to 800°F.
E-Z Coil™ inserts are made of 18-8 stainless steel wire. The wire is formed into a diamond pattern and then wound into a spring. Before being installed, the insert diameter is larger than the tapped hole. The insert diameter is reduced during installation, allowing the insert to thread into the hole. Once properly installed, the radial pressure of the released insert holds the insert firmly in place.
Features
Quickly repair damaged threads in soft metal
Protect tapped holes from stripping and wear
Made from corrosion resistant 18-8 stainless steel
Applications:
Soft metals: aluminum, cast iron, magnesium, etc.
Specifications
E-Z Lok P/N:
21115
For Use in:
Metal
Specific Material Use:
N/A
Sub-Category:
Standard Coil
Style:
Coil
Material:
Steel - Stainless
System of Measurement:
Inch
Internal Thread:
7/16-14
External Thread:
N/A
Installed Length:
0.66
Drill Size:
29/64
Tap Size:
7/16-14 STI
Minimum Full Thread Depth:
0.72
Installation Tool P/N:
M1014

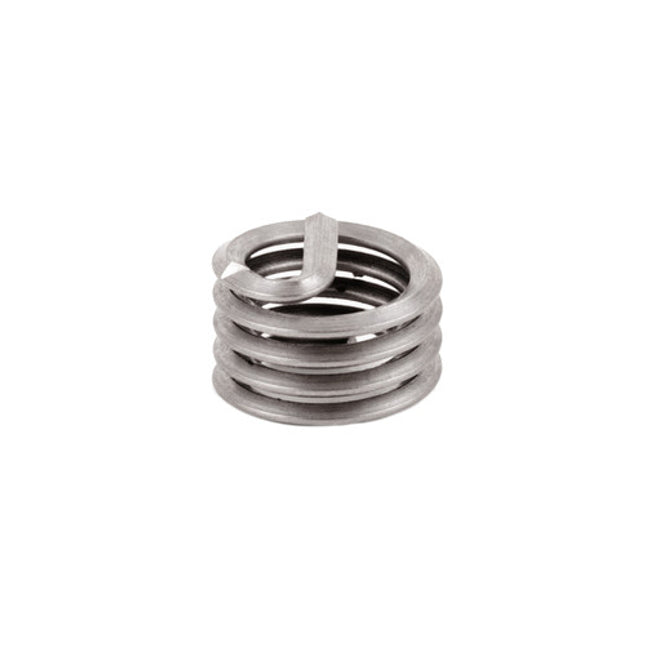

E-Z Coil™ inserts – also known as wire or helical threaded inserts – quickly repair or reinforce tapped holes in soft metals. Made from 18-8 stainless steel wire, E-Z Coil™ inserts provide strong internal threads that are corrosion resistant and withstand temperatures to 800°F.
E-Z Coil™ inserts are made of 18-8 stainless steel wire. The wire is formed into a diamond pattern and then wound into a spring. Before being installed, the insert diameter is larger than the tapped hole. The insert diameter is reduced during installation, allowing the insert to thread into the hole. Once properly installed, the radial pressure of the released insert holds the insert firmly in place.
Features
Quickly repair damaged threads in soft metal
Protect tapped holes from stripping and wear
Made from corrosion resistant 18-8 stainless steel
Applications:
Soft metals: aluminum, cast iron, magnesium, etc.
Specifications
E-Z Lok P/N:
21110
For Use in:
Metal
Specific Material Use:
N/A
Sub-Category:
Standard Coil
Style:
Coil
Material:
Steel - Stainless
System of Measurement:
Inch
Internal Thread:
7/16-14
External Thread:
N/A
Installed Length:
0.44
Drill Size:
29/64
Tap Size:
7/16-14 STI
Minimum Full Thread Depth:
0.72
Installation Tool P/N:
M1014
