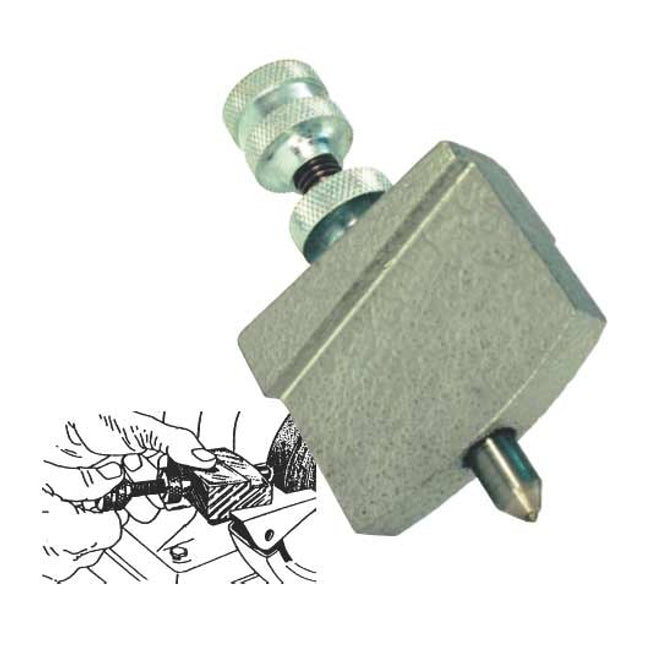

Highest Quality And Longest Lasting Tools In The IndustryFor bench gliders without a permanent fixture. Adjustable 1/2 carat diamond nib glides across the tool rest. Two angles provide fit on most grinders.
Code Number
Type
46100
Glide DresserÂ
46101
Replacement Diamond

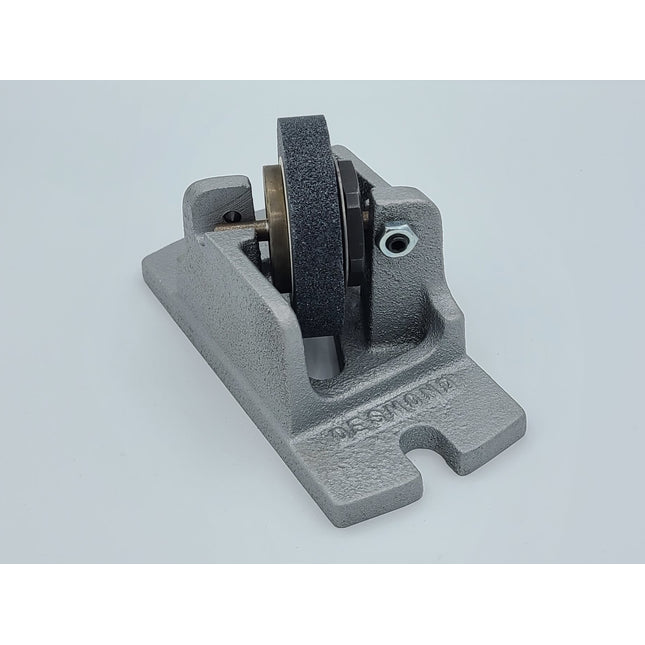

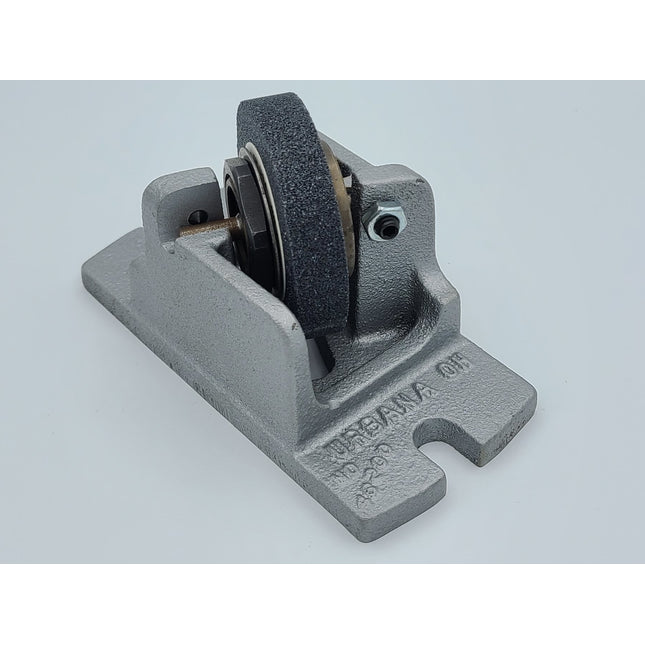

Condition and dress diamond and CBN wheels on surface grinders with this angle mounted abrasive wheel dresser. Bolt to slot or hold with magnetic chuck. Accuracy provided by a sealed ball bearing assembly. Furnished with a medium wheel to be used on 100 grit or coarser grinder. (2-1/2" x 1/2" x 1-1/8" hole wheel)
Code Number
Type
46200
Dresser with medium wheelÂ
46220

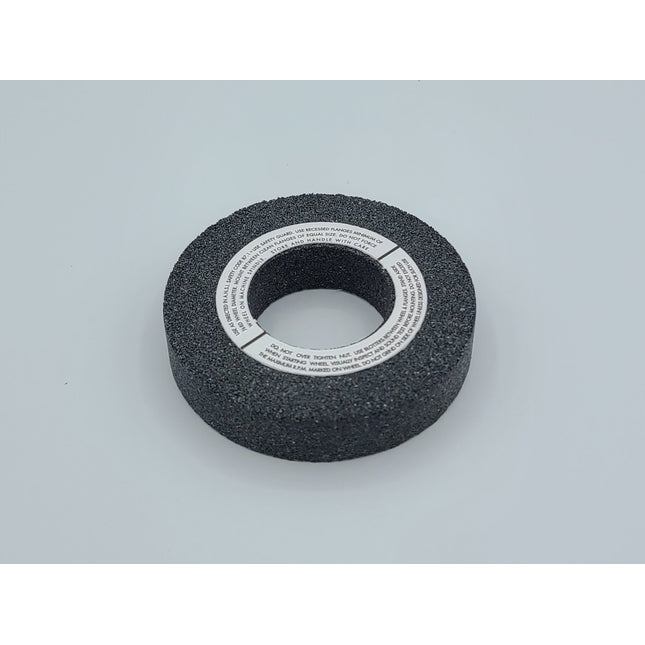

Medium wheel for 100 and coarser
46210
Fine wheel for 100 and finer
Condition and dress diamond and CBN wheels on surface grinders with this angle mounted abrasive wheel dresser. Bolt to slot or hold with magnetic chuck. Accuracy provided by a sealed ball bearing assembly. Furnished with a medium wheel to be used on 100 grit or coarser grinder. (2-1/2" x 1/2" x 1-1/8" hole wheel)
Code Number
Type
46200
Dresser with medium wheelÂ
46220
Medium wheel for 100 and coarser
46210
Fine wheel for 100 and finer
Boron Carbide sticks are extremely hard and long lasting. For medium to fine grit vitrified wheel dressing.
Code No.
Size
46300
Boron 1/4"x1/2"x3" stick
For use on coated abrasive belts and discs for removing the load caused by grinding steel, brass, plastic or wood. When used at frequent intervals it will prevent most of the load from forming and considerably increase the life of the belt or disc.
Code No.
Dresser No.
24110
BCA-1 Dresser for use on 200-300 grain
24310
BCA-1-NS Dresser non-sparking 200-300
24210
BCA-2 Dresser for use on 60-200 grain
24510
BCA-2-NS Dresser non-sparking 60-200 grain
24410
BCA-4 Dresser for use on 0-60 grain
24120
BCA-1 Cutter units each
24320
BCA-1-NS Cutter unit non-sparking
24220
BCA-2 Cutter units each
24520
BCA-2-NS Cutter unit non-sparking

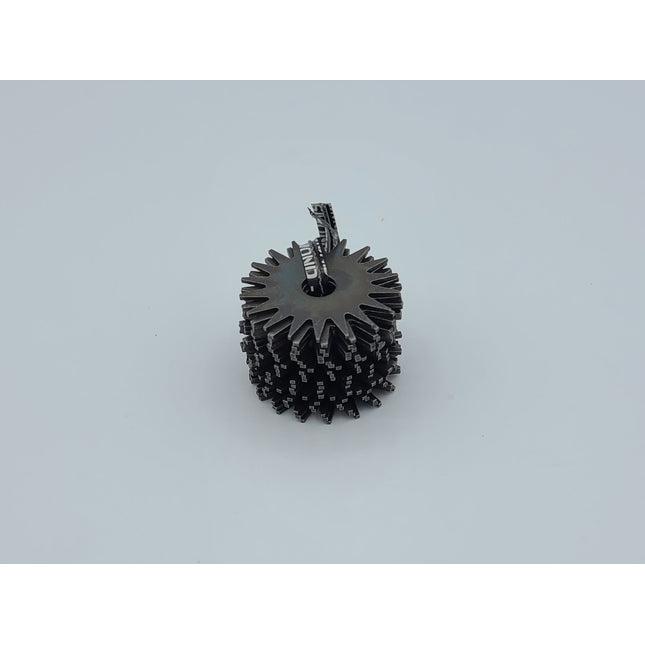

24420
BCA-4 Cutter sets each
For precision dressing of grinding wheels where an extremely accurate finish is required. In many cases, the use of this dresser will eliminate the use of diamonds or only necessitate diamonds for the final dressing operation. Dust protected ball bearings provide long-lasting bearing operation. The replaceable cutters are made from tool steel, carefully hardened for long wear.
Code No.
Dresser No.
Type
Wgt. / lbs.
17110
BB-1
Straight Shank 3/4" x 2-3/4"
3-3/4
17210
BB-2-L
Left
3-3/4
17610
BB-2-R
Right
3-3/4
17310
BB-3
Centerless
3-3/4

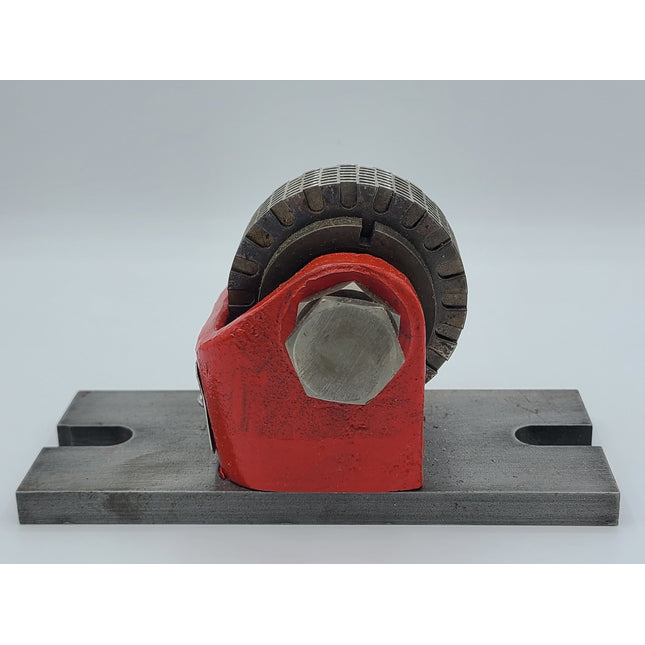

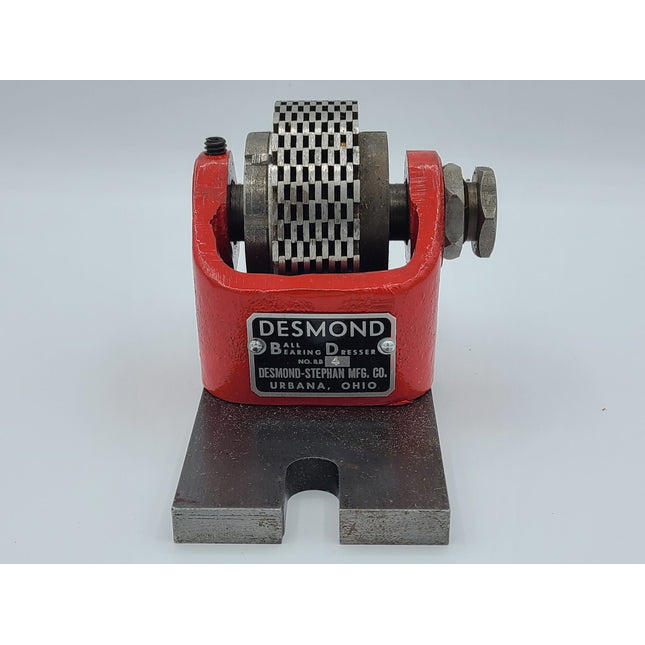

17410
BB-4
Surface Grinder
5-1/2
17510
BB-5
Disc (Table Type) uses BB-14-5
4
17710
BB-6
Disc (Double Disc Style)
4
17810
BB-7
Hand Held Dresser
3-1/2

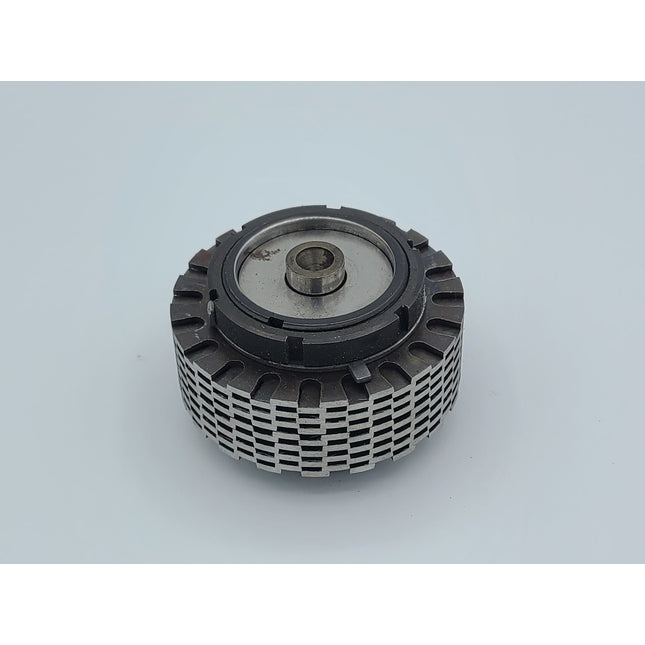

17020
BB-10
Cutter Unit, Precision
1
17040
BB-10-R
Cutter Unit, Roughing
1

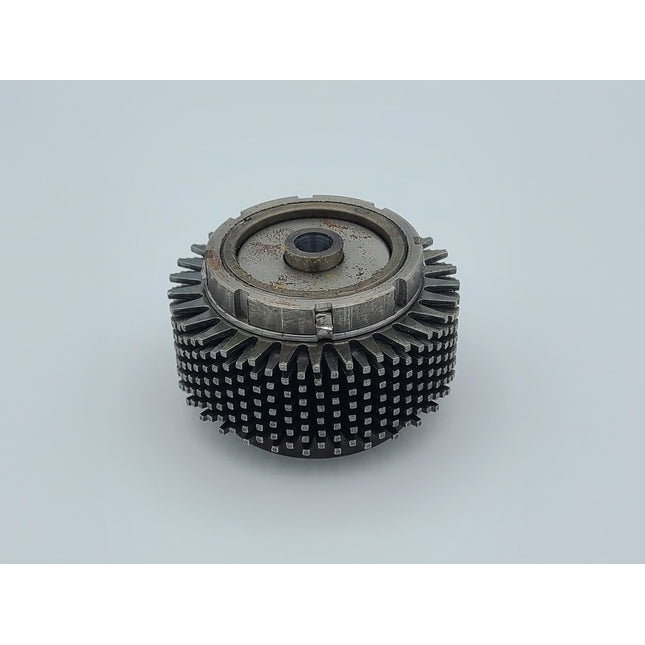

17520
BB-10-5
Cutter Unit, Sharp Tooth
1
17720
BB-10/17-A
Cutter Unit, Sharp Thick Tooth
1

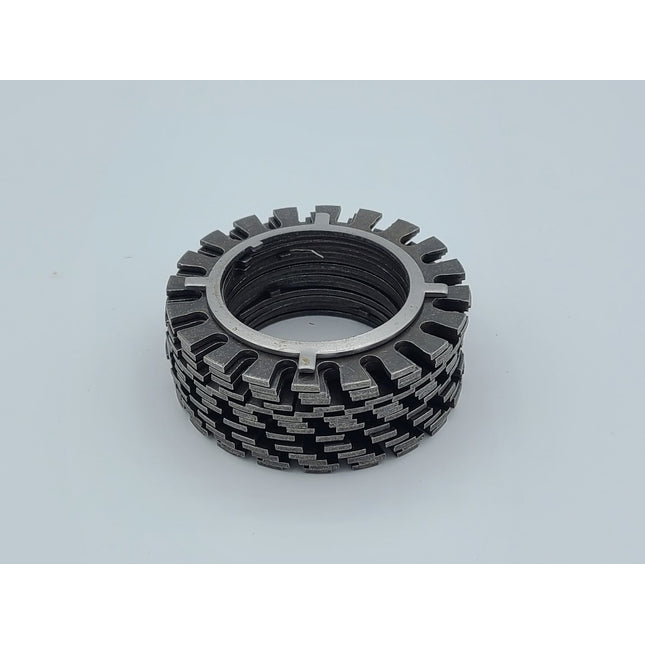

17030
BB-14
Loose Cutter Set, Precision
1/2

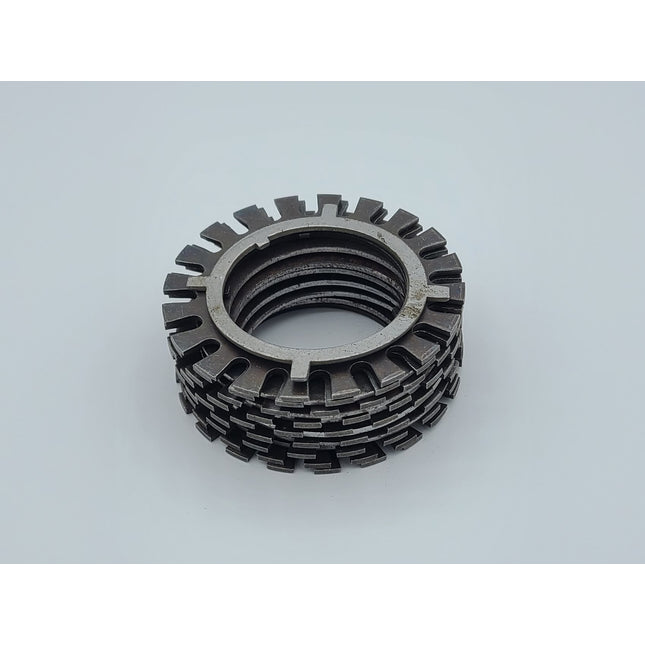

17050
BB-14-R
Loose Cutter Set, Roughing
1/2
17530
BB-14-5
Loose Cutter Set, Sharp Tooth
1/2
17770
BB-17-A
Loose Sharp Thick Tooth
1/2
Â
For precision dressing of grinding wheels where an extremely accurate finish is required. In many cases, the use of this dresser will eliminate the use of diamonds or only necessitate diamonds for the final dressing operation. Dust protected ball bearings provide long-lasting bearing operation. The replaceable cutters are made from tool steel, carefully hardened for long wear.
Code No.
Dresser No.
Type
Wgt. / lbs.
17110
BB-1
Straight Shank 3/4" x 2-3/4"
3-3/4
17210
BB-2-L
Left
3-3/4
17610
BB-2-R
Right
3-3/4
17310
BB-3
Centerless
3-3/4
17410
BB-4
Surface Grinder
5-1/2
17510
BB-5
Disc (Table Type) uses BB-14-5
4
17710
BB-6
Disc (Double Disc Style)
4
17810
BB-7
Hand Held Dresser
3-1/2
17020
BB-10
Cutter Unit, Precision
1
17040
BB-10-R
Cutter Unit, Roughing
1
17520
BB-10-5
Cutter Unit, Sharp Tooth
1

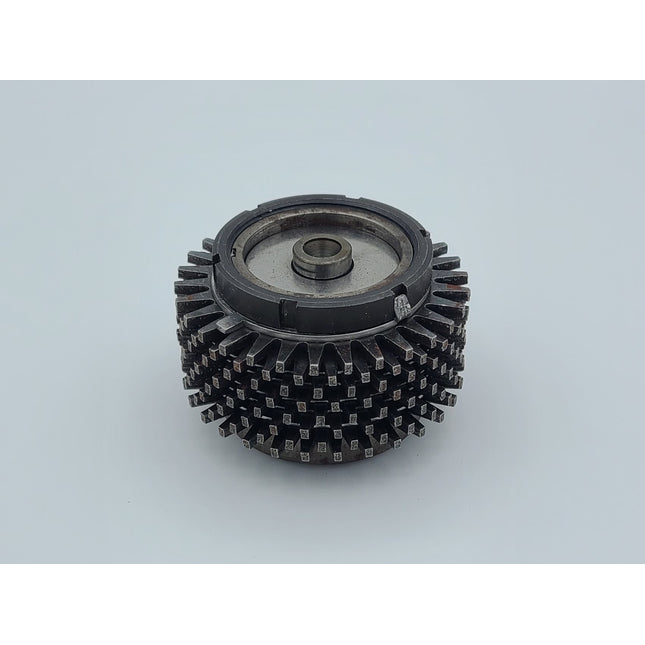

17720
BB-10/17-A
Cutter Unit, Sharp Thick Tooth
1
17030
BB-14
Loose Cutter Set, Precision
1/2
17050
BB-14-R
Loose Cutter Set, Roughing
1/2
17530
BB-14-5
Loose Cutter Set, Sharp Tooth
1/2
17770
BB-17-A
Loose Sharp Thick Tooth
1/2
Â
For precision dressing of grinding wheels where an extremely accurate finish is required. In many cases, the use of this dresser will eliminate the use of diamonds or only necessitate diamonds for the final dressing operation. Dust protected ball bearings provide long-lasting bearing operation. The replaceable cutters are made from tool steel, carefully hardened for long wear.
Code No.
Dresser No.
Type
Wgt. / lbs.
17110
BB-1
Straight Shank 3/4" x 2-3/4"
3-3/4
17210
BB-2-L
Left
3-3/4
17610
BB-2-R
Right
3-3/4
17310
BB-3
Centerless
3-3/4
17410
BB-4
Surface Grinder
5-1/2
17510
BB-5
Disc (Table Type) uses BB-14-5
4
17710
BB-6
Disc (Double Disc Style)
4
17810
BB-7
Hand Held Dresser
3-1/2
17020
BB-10
Cutter Unit, Precision
1
17040
BB-10-R
Cutter Unit, Roughing
1
17520
BB-10-5
Cutter Unit, Sharp Tooth
1
17720
BB-10/17-A
Cutter Unit, Sharp Thick Tooth
1
17030
BB-14
Loose Cutter Set, Precision
1/2
17050
BB-14-R
Loose Cutter Set, Roughing
1/2
17530
BB-14-5
Loose Cutter Set, Sharp Tooth
1/2
17770
BB-17-A
Loose Sharp Thick Tooth
1/2
Â
For precision dressing of grinding wheels where an extremely accurate finish is required. In many cases, the use of this dresser will eliminate the use of diamonds or only necessitate diamonds for the final dressing operation. Dust protected ball bearings provide long-lasting bearing operation. The replaceable cutters are made from tool steel, carefully hardened for long wear.
Code No.
Dresser No.
Type
Wgt. / lbs.
17110
BB-1
Straight Shank 3/4" x 2-3/4"
3-3/4
17210
BB-2-L
Left
3-3/4
17610
BB-2-R
Right
3-3/4
17310
BB-3
Centerless
3-3/4
17410
BB-4
Surface Grinder
5-1/2
17510
BB-5
Disc (Table Type) uses BB-14-5
4
17710
BB-6
Disc (Double Disc Style)
4
17810
BB-7
Hand Held Dresser
3-1/2
17020
BB-10
Cutter Unit, Precision
1
17040
BB-10-R
Cutter Unit, Roughing
1
17520
BB-10-5
Cutter Unit, Sharp Tooth
1
17720
BB-10/17-A
Cutter Unit, Sharp Thick Tooth
1
17030
BB-14
Loose Cutter Set, Precision
1/2
17050
BB-14-R
Loose Cutter Set, Roughing
1/2
17530
BB-14-5
Loose Cutter Set, Sharp Tooth
1/2
17770
BB-17-A
Loose Sharp Thick Tooth
1/2
Â
For precision dressing of grinding wheels where an extremely accurate finish is required. In many cases, the use of this dresser will eliminate the use of diamonds or only necessitate diamonds for the final dressing operation. Dust protected ball bearings provide long-lasting bearing operation. The replaceable cutters are made from tool steel, carefully hardened for long wear.
Code No.
Dresser No.
Type
Wgt. / lbs.
17110
BB-1
Straight Shank 3/4" x 2-3/4"
3-3/4
17210
BB-2-L
Left
3-3/4
17610
BB-2-R
Right
3-3/4
17310
BB-3
Centerless
3-3/4
17410
BB-4
Surface Grinder
5-1/2
17510
BB-5
Disc (Table Type) uses BB-14-5
4
17710
BB-6
Disc (Double Disc Style)
4
17810
BB-7
Hand Held Dresser
3-1/2
17020
BB-10
Cutter Unit, Precision
1
17040
BB-10-R
Cutter Unit, Roughing
1
17520
BB-10-5
Cutter Unit, Sharp Tooth
1
17720
BB-10/17-A
Cutter Unit, Sharp Thick Tooth
1
17030
BB-14
Loose Cutter Set, Precision
1/2
17050
BB-14-R
Loose Cutter Set, Roughing
1/2
17530
BB-14-5
Loose Cutter Set, Sharp Tooth
1/2
17770
BB-17-A
Loose Sharp Thick Tooth
1/2
Â
For precision dressing of grinding wheels where an extremely accurate finish is required. In many cases, the use of this dresser will eliminate the use of diamonds or only necessitate diamonds for the final dressing operation. Dust protected ball bearings provide long-lasting bearing operation. The replaceable cutters are made from tool steel, carefully hardened for long wear.
Code No.
Dresser No.
Type
Wgt. / lbs.
17110
BB-1
Straight Shank 3/4" x 2-3/4"
3-3/4
17210
BB-2-L
Left
3-3/4
17610
BB-2-R
Right
3-3/4
17310
BB-3
Centerless
3-3/4
17410
BB-4
Surface Grinder
5-1/2
17510
BB-5
Disc (Table Type) uses BB-14-5
4
17710
BB-6
Disc (Double Disc Style)
4
17810
BB-7
Hand Held Dresser
3-1/2
17020
BB-10
Cutter Unit, Precision
1
17040
BB-10-R
Cutter Unit, Roughing
1
17520
BB-10-5
Cutter Unit, Sharp Tooth
1
17720
BB-10/17-A
Cutter Unit, Sharp Thick Tooth
1
17030
BB-14
Loose Cutter Set, Precision
1/2
17050
BB-14-R
Loose Cutter Set, Roughing
1/2
17530
BB-14-5
Loose Cutter Set, Sharp Tooth
1/2
17770
BB-17-A
Loose Sharp Thick Tooth
1/2
Â

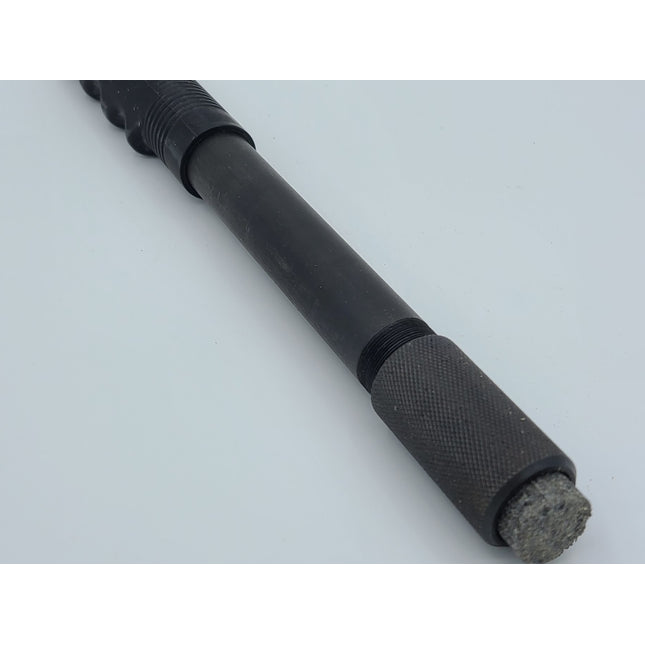

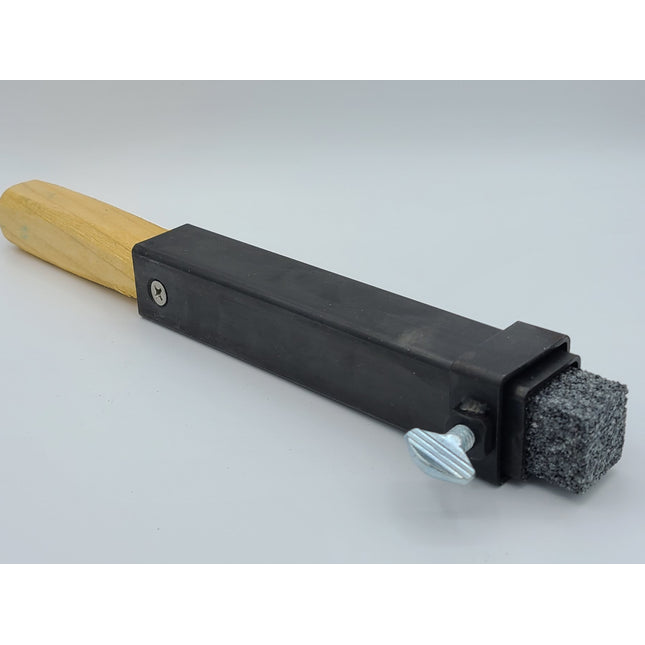

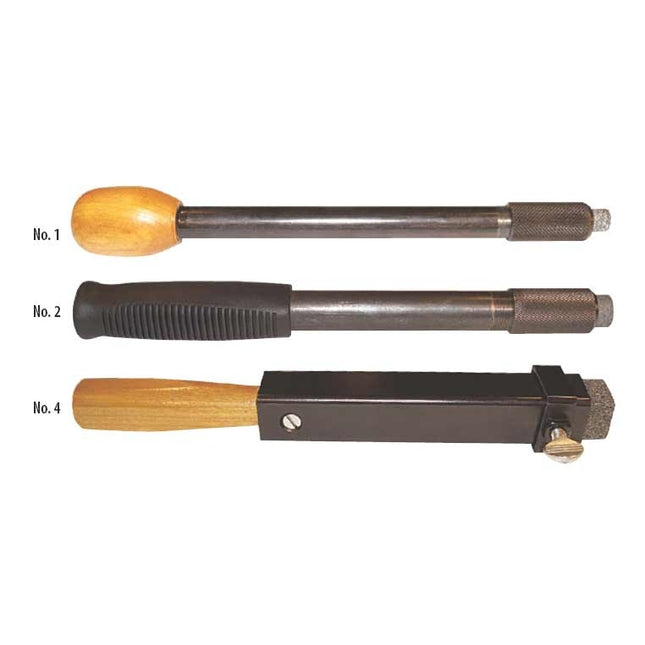

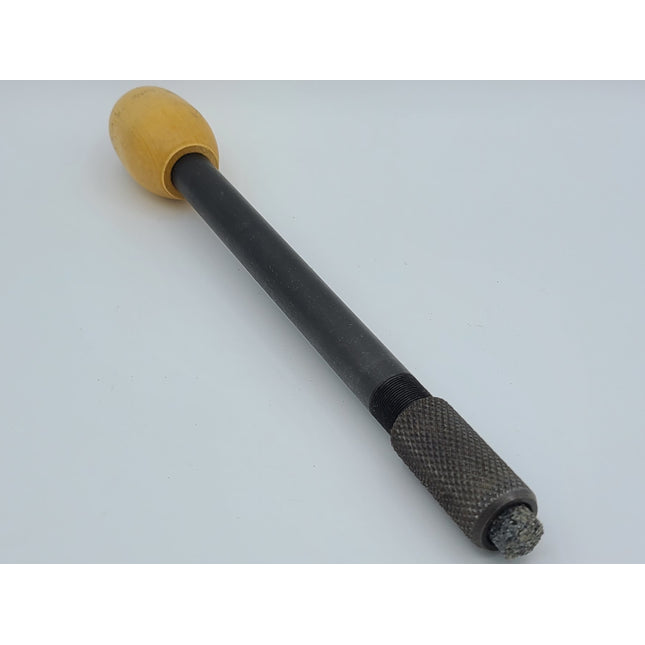

The dressers hold abrasive sticks by means of the knurled chuck. New sticks may easily be inserted.
Code Number
Dresser Number
Type
22110
No. 1
Magazine Dresser with 1/2" dia stick
22210
No. 2
Magazine Dresser with 3/4" dia stick
22410
No. 4
Magazine Dresser with 1" sq. stick
22120
No. 1
Abrasive Sticks, 6" long
22220
No. 2
Abrasive Sticks, 6" long

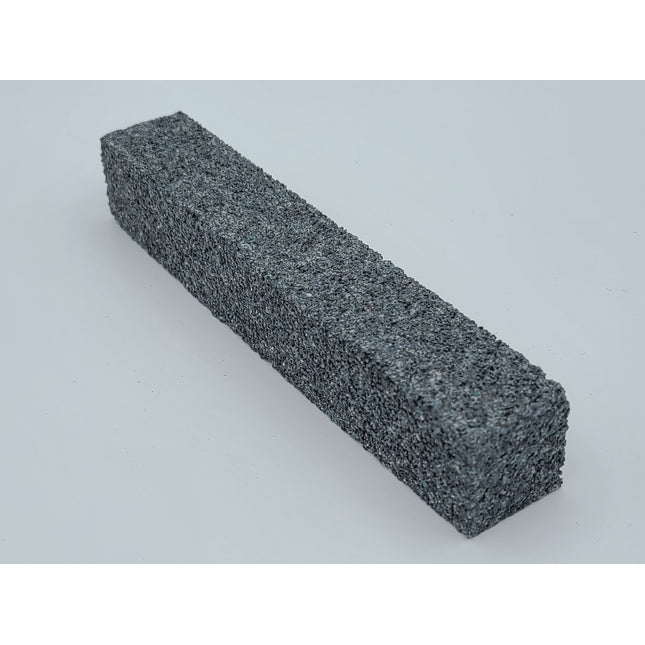

22420
No. 4
Abrasive Sticks, 6" long
The dressers hold abrasive sticks by means of the knurled chuck. New sticks may easily be inserted.
Code Number
Dresser Number
Type
22110
No. 1
Magazine Dresser with 1/2" dia stick
22210
No. 2
Magazine Dresser with 3/4" dia stick
22410
No. 4
Magazine Dresser with 1" sq. stick
22120
No. 1
Abrasive Sticks, 6" long
22220
No. 2
Abrasive Sticks, 6" long
22420
No. 4
Abrasive Sticks, 6" long
The dressers hold abrasive sticks by means of the knurled chuck. New sticks may easily be inserted.
Code Number
Dresser Number
Type
22110
No. 1
Magazine Dresser with 1/2" dia stick
22210
No. 2
Magazine Dresser with 3/4" dia stick
22410
No. 4
Magazine Dresser with 1" sq. stick
22120
No. 1
Abrasive Sticks, 6" long
22220
No. 2
Abrasive Sticks, 6" long
22420
No. 4
Abrasive Sticks, 6" long
The dressers hold abrasive sticks by means of the knurled chuck. New sticks may easily be inserted.
Code Number
Dresser Number
Type
22110
No. 1
Magazine Dresser with 1/2" dia stick
22210
No. 2
Magazine Dresser with 3/4" dia stick
22410
No. 4
Magazine Dresser with 1" sq. stick
22120
No. 1
Abrasive Sticks, 6" long
22220
No. 2
Abrasive Sticks, 6" long
22420
No. 4
Abrasive Sticks, 6" long
Mini dresser for use on (4,000 max RPM) smaller fine to medium grit tool or sharpening grinding wheels. Use at 15 degree angle to produce crush dressing action.
Code Number
Type
25510
DresserÂ
25520
Wheel 1-1/2" x 5/8" x 5/16"

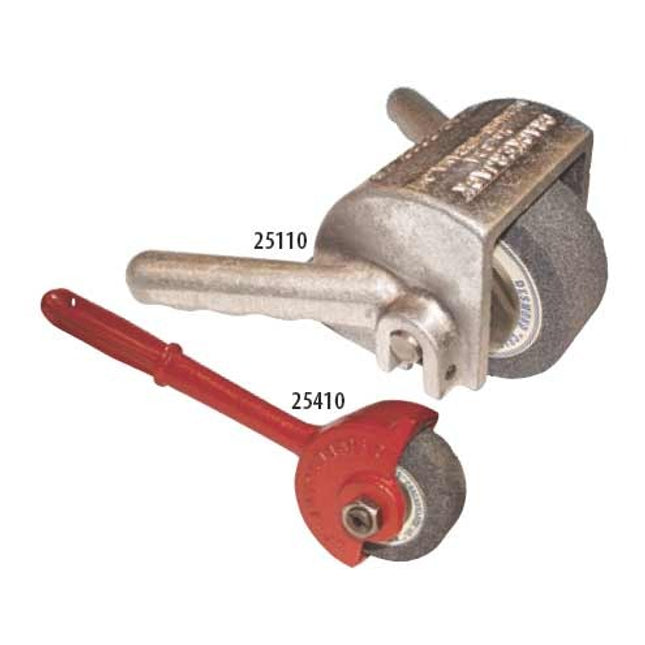

The abrasive wheel produces a dressing and truing action when held at an angle of 15 degrees from the axis of the wheel being dressed. Full 4" diameter by 1 1/2" face wheel mounted on double row of dust protected ball bearings. Handles designed to protect the users hands.
Code No.
Dresser Type
Wgt. / lbs.
25110
Double Handle Type, Hooded
5-3/4
25120
Extra Wheel 4" x 1-1/2" x 1-1/2"
1-3/4
Crackerjack Jr. Dresser in single handle type only with 3" by 1" face wheel
25410
Single handle dresser
3-1/2
25420
Extra Wheel 3" x 1" x 3/4"
3/4
For use on coarse, large, high speed grinding wheels. New design permits quick cutter change by operator. Full length foot rest guides dresser evenly over rough edged tool rests. Cutter unit is fully shielded. Cutters are mounted at an angle to provide a shearing and picking action on the #58 dresser. Both cutter units revolve on sealed, dust protected ball bearings enabling them to keep up with high speed wheels.
Code Number
Size
(For Use On Wheels)
14310
55
up to 16"
14410
58
16" to 30"
Code Number
Cutters
Diameter
Face
Wgt. / lbs.

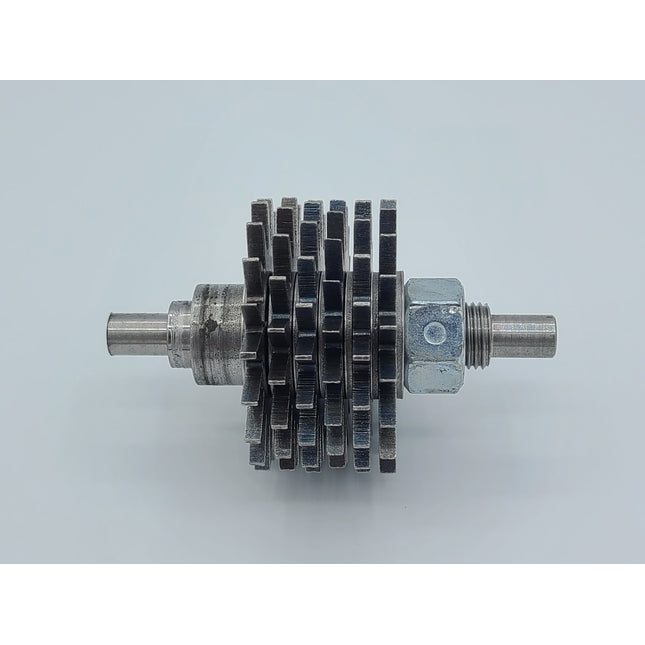

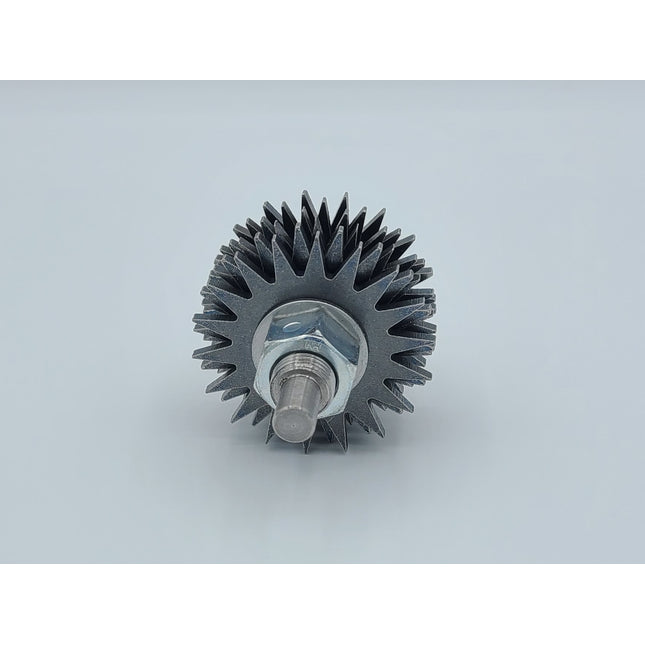

14320
55
2"
1-1/4"
3/4

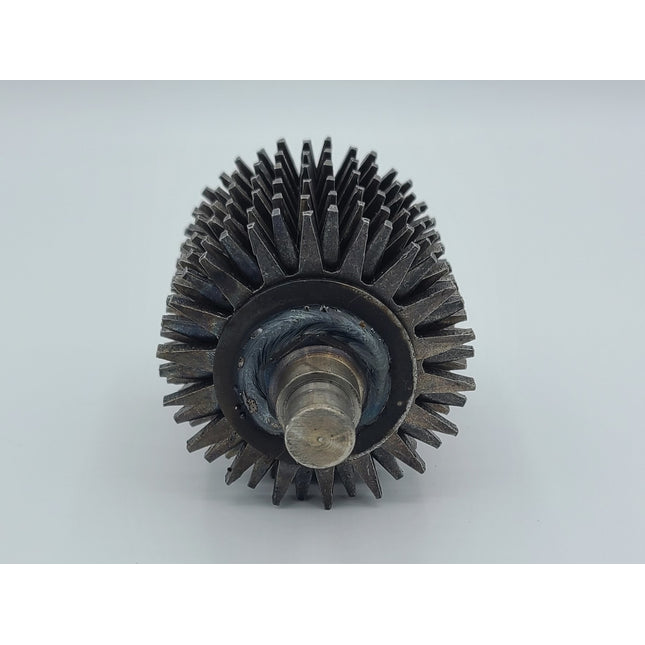

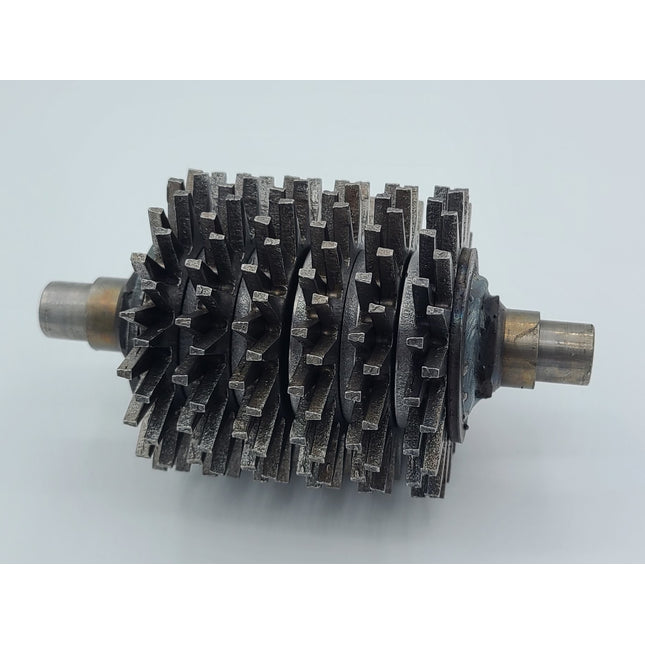

14420
58
2-3/8"
2-1/4"
1-1/2
14429
58-R Roughing cutter for very hard wheels
For use on coarse, large, high speed grinding wheels. New design permits quick cutter change by operator. Full length foot rest guides dresser evenly over rough edged tool rests. Cutter unit is fully shielded. Cutters are mounted at an angle to provide a shearing and picking action on the #58 dresser. Both cutter units revolve on sealed, dust protected ball bearings enabling them to keep up with high speed wheels.
Code Number
Size
(For Use On Wheels)
14310
55Â
up to 16"Â
14410
58
16" to 30"
Code Number
Cutters
Diameter
Face
Wgt. / lbs.
14320
55
2"Â
1-1/4"Â
3/4Â
14420
58
2-3/8"Â
2-1/4"Â
1-1/2Â
14429
58-R Roughing cutter for very hard wheels
