E-Z LOK™ - 20110 Pack of 10 - E-Z Coil™ Threaded Insert for Metal - 3-48 x 1D

Description

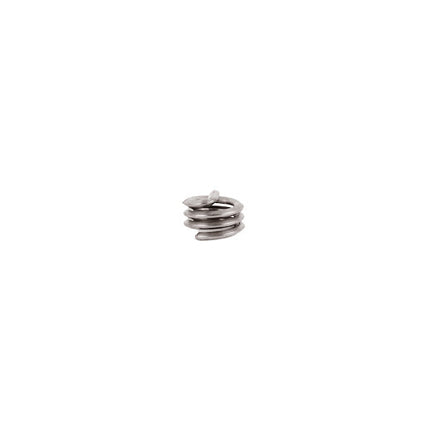

E-Z Coil™ inserts – also known as wire or helical threaded inserts – quickly repair or reinforce tapped holes in soft metals. Made from 18-8 stainless steel wire, E-Z Coil™ inserts provide strong internal threads that are corrosion resistant and withstand temperatures to 800°F.

E-Z Coil™ inserts are made of 18-8 stainless steel wire. The wire is formed into a diamond pattern and then wound into a spring. Before being installed, the insert diameter is larger than the tapped hole. The insert diameter is reduced during installation, allowing the insert to thread into the hole. Once properly installed, the radial pressure of the released insert holds the insert firmly in place.

Features

  • Quickly repair damaged threads in soft metal
  • Protect tapped holes from stripping and wear
  • Made from corrosion resistant 18-8 stainless steel

Applications:

  • Soft metals: aluminum, cast iron, magnesium, etc.

Specifications


E-Z Lok P/N: 20110
For Use in: Metal
Specific Material Use: N/A
Sub-Category: Standard Coil
Style: Coil
Material: Steel - Stainless
System of Measurement: Inch
Internal Thread: 3-48
External Thread: N/A
Installed Length: 0.1
Drill Size: #36
Tap Size: 3-48 STI
Minimum Full Thread Depth: 0.18
Installation Tool P/N: M1002
Product form

E-Z Coil™ inserts – also known as wire or helical threaded inserts – quickly repair or reinforce tapped holes in... Read more

SKU: 1011298

Vendor Part #: 20110

This product has a lead time of 2 - 4 weeks.

Online special order

$5.59

  • Fast & reliable fulfillment
  • Easy to contact customer support
  • Easy returns on defective items

Description

E-Z Coil™ inserts – also known as wire or helical threaded inserts – quickly repair or reinforce tapped holes in soft metals. Made from 18-8 stainless steel wire, E-Z Coil™ inserts provide strong internal threads that are corrosion resistant and withstand temperatures to 800°F.

E-Z Coil™ inserts are made of 18-8 stainless steel wire. The wire is formed into a diamond pattern and then wound into a spring. Before being installed, the insert diameter is larger than the tapped hole. The insert diameter is reduced during installation, allowing the insert to thread into the hole. Once properly installed, the radial pressure of the released insert holds the insert firmly in place.

Features

  • Quickly repair damaged threads in soft metal
  • Protect tapped holes from stripping and wear
  • Made from corrosion resistant 18-8 stainless steel

Applications:

  • Soft metals: aluminum, cast iron, magnesium, etc.

Specifications


E-Z Lok P/N: 20110
For Use in: Metal
Specific Material Use: N/A
Sub-Category: Standard Coil
Style: Coil
Material: Steel - Stainless
System of Measurement: Inch
Internal Thread: 3-48
External Thread: N/A
Installed Length: 0.1
Drill Size: #36
Tap Size: 3-48 STI
Minimum Full Thread Depth: 0.18
Installation Tool P/N: M1002
