Description

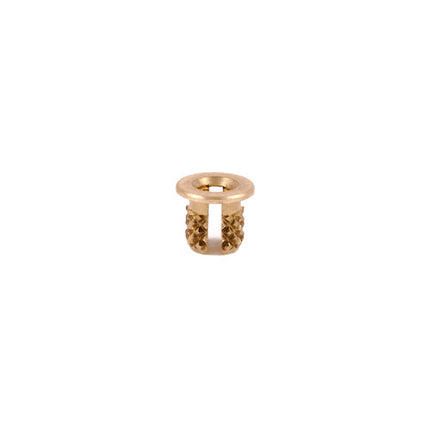

E-Z Press™ inserts are threaded inserts designed for post-molding installation in either thermoset plastics or thermoplastics. A slotted design with diamond-knurled OD allows for “cold” installation with optimum
torque/pull-out resistance. Cold installation of threaded inserts reduces the cost of moldings and eliminates the need to “chase” threads after molding.
Our E-Z Press™ inserts are available in three styles: flush, flanged, and reverse slot. All three types press into place for fast, easy installation. Anything from a rubber mallet to an arbor press can be used for installation.
Features:Install cold
Reduce the cost of moldings
Cut reject waste caused by misaligned and faulty inserts
Eliminate the need to “chase” threads after molding
Install properly without a precise hole depth
Install properly without a precise hole depth
Applications:Post-molding installation in either thermoset plastics or thermoplastics
Specifications:
| E-Z Lok P/N: |
260-002-BR |
| For Use in: |
Thermoset Plastic, Thermoplastic |
| Specific Material Use: |
N/A |
| Sub-Category: |
N/A |
| Style: |
Press-In |
| Material: |
Brass |
| System of Measurement: |
Inch |
| Internal Thread: |
2-56 |
| External Thread: |
N/A |
| Installed Length: |
0.16 |
| Drill Size: |
1/8 |
| Tap Size: |
N/A |
| Minimum Full Thread Depth: |
N/A |
| Installation Tool P/N: |
N/A |
