Description

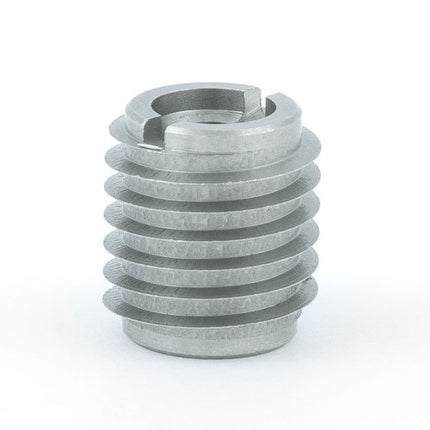

E-Z Knife™ inserts are designed for use in hard woods, like oak, cherry, and maple. E-Z Knife™ inserts are ideal for use wherever assembly or disassembly could lead to thread erosion or stripping. Also, E-Z Knife™ inserts for wood use a proprietary external “knife” thread to slice into the wood, which provides superior holding power.
E-Z Knife™ inserts are most often machined out of brass when internal thread sizes range from #4 to 3/8 or M3 to M8. For additional corrosion resistance, stainless steel knife thread inserts are used with 8-32, 10-24, and 1/4-20 internal threads.
Features:Superior hard wood holding power
Sizing variety, inch (coarse/fine) & metric
Brass or stainless steel options
Easily installs with a screwdriver, bolt/jam nut, or optional drive tool
Applications:Cabinetry & Furniture
Partitions
Display Cases
Beer Tap Handles
Shipping Containers
Anywhere a fastener will be used in wood
Installation:E-Z Knife threaded inserts are typically installed with the slots up. The slots accommodate a screwdriver or E-Z LOK drive tool. For harder woods, screwdriver installation isn't practical. Installation can be accomplished with the drive tool or using a bolt and jam nuts. When using the bolt/jam nuts installation technique, the slotted end of the insert can be either up or down.
Specifications:
| E-Z Lok P/N: |
400-3-CR |
| For Use in: |
Hard Wood |
| Specific Material Use: |
N/A |
| Sub-Category: |
N/A |
| Style: |
Knife Thread |
| Material: |
Steel - Stainless |
| System of Measurement: |
Inch |
| Internal Thread: |
10-24 |
| External Thread: |
N/A |
| Installed Length: |
0.5 |
| Drill Size: |
25/64 |
| Tap Size: |
N/A |
| Minimum Full Thread Depth: |
N/A |
| Installation Tool P/N: |
DT-3 |
