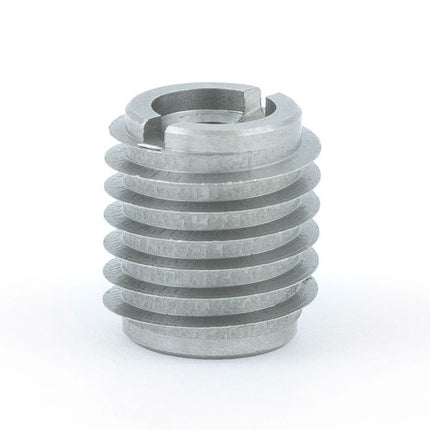

E-Z LOK™ - 400-4-CR Pack of 10 - E-Z Knife™ Threaded Insert for Hard Wood - 303 Stainless - 1/4-20

Description

E-Z Knife™ inserts are designed for use in hard woods, like oak, cherry, and maple. E-Z Knife™ inserts are ideal for use wherever assembly or disassembly could lead to thread erosion or stripping. Also, E-Z Knife™ inserts for wood use a proprietary external “knife” thread to slice into the wood, which provides superior holding power.

E-Z Knife™ inserts are most often machined out of brass when internal thread sizes range from #4 to 3/8 or M3 to M8. For additional corrosion resistance, stainless steel knife thread inserts are used with 8-32, 10-24, and 1/4-20 internal threads.

Features:

Superior hard wood holding power
Sizing variety, inch (coarse/fine) & metric
Brass or stainless steel options
Easily installs with a screwdriver, bolt/jam nut, or optional drive tool

Applications:

Cabinetry & Furniture
Partitions
Display Cases
Beer Tap Handles
Shipping Containers
Anywhere a fastener will be used in wood

Installation:

E-Z Knife threaded inserts are typically installed with the slots up. The slots accommodate a screwdriver or E-Z LOK drive tool. For harder woods, screwdriver installation isn't practical. Installation can be accomplished with the drive tool or using a bolt and jam nuts. When using the bolt/jam nuts installation technique, the slotted end of the insert can be either up or down.


Specifications:

E-Z Lok P/N: 400-4-CR
For Use in: Hard Wood
Specific Material Use: N/A
Sub-Category: N/A
Style: Knife Thread
Material: Steel - Stainless
System of Measurement: Inch
Internal Thread: 1/4-20
External Thread: N/A
Installed Length: 0.5
Drill Size: 25/64
Tap Size: N/A
Minimum Full Thread Depth: N/A
Installation Tool P/N: DT-4
Product form

E-Z Knife™ inserts are designed for use in hard woods, like oak, cherry, and maple. E-Z Knife™ inserts are ideal... Read more

SKU: 1011702

Vendor Part #: 400-4-CR

This product has a lead time of 2 - 4 weeks.

Online special order

$17.70

  • Fast & reliable fulfillment
  • Easy to contact customer support
  • Easy returns on defective items

Description

E-Z Knife™ inserts are designed for use in hard woods, like oak, cherry, and maple. E-Z Knife™ inserts are ideal for use wherever assembly or disassembly could lead to thread erosion or stripping. Also, E-Z Knife™ inserts for wood use a proprietary external “knife” thread to slice into the wood, which provides superior holding power.

E-Z Knife™ inserts are most often machined out of brass when internal thread sizes range from #4 to 3/8 or M3 to M8. For additional corrosion resistance, stainless steel knife thread inserts are used with 8-32, 10-24, and 1/4-20 internal threads.

Features:

Superior hard wood holding power
Sizing variety, inch (coarse/fine) & metric
Brass or stainless steel options
Easily installs with a screwdriver, bolt/jam nut, or optional drive tool

Applications:

Cabinetry & Furniture
Partitions
Display Cases
Beer Tap Handles
Shipping Containers
Anywhere a fastener will be used in wood

Installation:

E-Z Knife threaded inserts are typically installed with the slots up. The slots accommodate a screwdriver or E-Z LOK drive tool. For harder woods, screwdriver installation isn't practical. Installation can be accomplished with the drive tool or using a bolt and jam nuts. When using the bolt/jam nuts installation technique, the slotted end of the insert can be either up or down.


Specifications:

E-Z Lok P/N: 400-4-CR
For Use in: Hard Wood
Specific Material Use: N/A
Sub-Category: N/A
Style: Knife Thread
Material: Steel - Stainless
System of Measurement: Inch
Internal Thread: 1/4-20
External Thread: N/A
Installed Length: 0.5
Drill Size: 25/64
Tap Size: N/A
Minimum Full Thread Depth: N/A
Installation Tool P/N: DT-4
