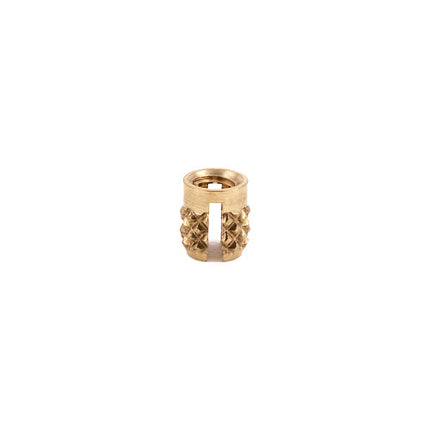

E-Z LOK™ - 240-M3-BR Pack of 50 - E-Z Press™ Threaded Insert for Plastic - Flush - Brass - M3-0.5

Description

E-Z Press™ inserts are threaded inserts designed for post-molding installation in either thermoset plastics or thermoplastics. A slotted design with diamond-knurled OD allows for “cold” installation with optimum torque/pull-out resistance. Cold installation of threaded inserts reduces the cost of moldings and eliminates the need to “chase” threads after molding.

Our E-Z Press™ inserts are available in three styles: flush, flanged, and reverse slot. All three types press into place for fast, easy installation. Anything from a rubber mallet to an arbor press can be used for installation.

Features:

Install cold
Reduce the cost of moldings
Cut reject waste caused by misaligned and faulty inserts
Eliminate the need to “chase” threads after molding
Install properly without a precise hole depth
Install properly without a precise hole depth

Applications:

Post-molding installation in either thermoset plastics or thermoplastics


Specifications:

E-Z Lok P/N: 240-M3-BR
For Use in: Thermoset Plastic
Specific Material Use: N/A
Sub-Category: N/A
Style: Press-In
Material: Brass
System of Measurement: Metric
Internal Thread: M3-0.5
External Thread: N/A
Installed Length: 5
Drill Size: 5/32
Tap Size: N/A
Minimum Full Thread Depth: N/A
Installation Tool P/N: N/A
Product form

E-Z Press™ inserts are threaded inserts designed for post-molding installation in either thermoset plastics or thermoplastics. A slotted design with... Read more

SKU: 1011518

Vendor Part #: 240-M3-BR

This product has a lead time of 2 - 4 weeks.

Online special order

$11.70

  • Fast & reliable fulfillment
  • Easy to contact customer support
  • Easy returns on defective items

Description

E-Z Press™ inserts are threaded inserts designed for post-molding installation in either thermoset plastics or thermoplastics. A slotted design with diamond-knurled OD allows for “cold” installation with optimum torque/pull-out resistance. Cold installation of threaded inserts reduces the cost of moldings and eliminates the need to “chase” threads after molding.

Our E-Z Press™ inserts are available in three styles: flush, flanged, and reverse slot. All three types press into place for fast, easy installation. Anything from a rubber mallet to an arbor press can be used for installation.

Features:

Install cold
Reduce the cost of moldings
Cut reject waste caused by misaligned and faulty inserts
Eliminate the need to “chase” threads after molding
Install properly without a precise hole depth
Install properly without a precise hole depth

Applications:

Post-molding installation in either thermoset plastics or thermoplastics


Specifications:

E-Z Lok P/N: 240-M3-BR
For Use in: Thermoset Plastic
Specific Material Use: N/A
Sub-Category: N/A
Style: Press-In
Material: Brass
System of Measurement: Metric
Internal Thread: M3-0.5
External Thread: N/A
Installed Length: 5
Drill Size: 5/32
Tap Size: N/A
Minimum Full Thread Depth: N/A
Installation Tool P/N: N/A
