Description

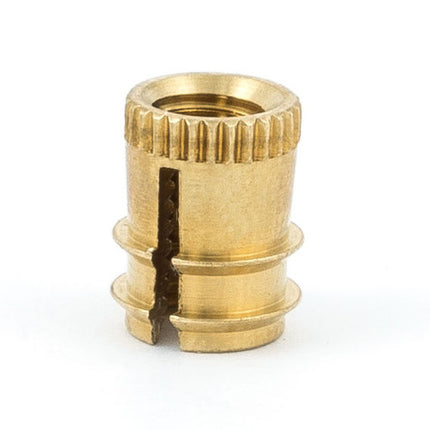

E-Z Fin™ (Finserts) provide strong, metal threads in soft woods, like pine, composition board, and MDF, and most plastics. Firm, permanent fastening is achieved by distributing stress over a greater surface area, minimizing the possibility of splintering, splitting, and thread erosion.
Machined out of brass, E-Z Fin™ (Finserts) are available in single, double or triple fin designs for varying material thicknesses. Internal threads sizes range from #6 to 5/16.
Important Note: Hole size requirements may vary depending on a number of factors, including material and tools. We recommend that you test your particular application before ordering. We gladly supply free samples.
Features:Easy press-in installation
Design minimizes splintering and splitting
Available in 3 lengths for varying material thicknesses
Applications:
Soft woods: such as pine, composition board, and MDF
Most Plastics
Specifications:
| E-Z Lok P/N: |
270-4-BR |
| For Use in: |
Soft Wood, Thermoset Plastic, Thermoplastic |
| Specific Material Use: |
N/A |
| Sub-Category: |
N/A |
| Style: |
Finsert |
| Material: |
Brass |
| System of Measurement: |
Inch |
| Internal Thread: |
1/4-20 |
| External Thread: |
N/A |
| Installed Length: |
0.38 |
| Drill Size: |
21/64 |
| Tap Size: |
N/A |
| Minimum Full Thread Depth: |
N/A |
| Installation Tool P/N: |
N/A |
