Description
E-Z LOK Drive Tools speed the installation of solid threaded inserts for metal, Knife Thread Inserts for hard wood and Hex Drive Thread Inserts for soft wood. A standard hex shaft allows for the use of power drills or drill presses in higher volume installations. Both styles quickly drive in the inserts without time consuming thread engagement.
Features:Quickly install E-Z LOK slotted inserts, without engaging the internal thread
Use with Solid Threaded Inserts, Knife Thread Inserts, and Hex Drive Inserts
Fits standard power drills and drill presses
Quickly install inserts without engaging internal threads
Applications:Quickly installing Solid Threaded Inserts, Knife Thread Inserts, and Hex Drive Inserts
Specifications:

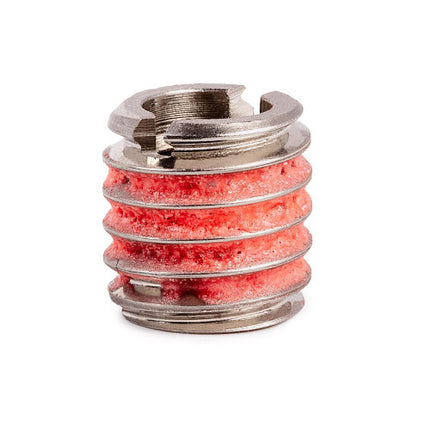

| E-Z Lok P/N: |
303-428 |
| For Use in: |
Metal |
| Specific Material Use: |
N/A |
| Sub-Category: |
Standard Wall |
| Style: |
Solid Wall |
| Material: |
Steel - Stainless |
| System of Measurement: |
Inch |
| Internal Thread: |
1/4-28 |
| External Thread: |
7/16-14 |
| Installed Length: |
0.44 |
| Drill Size: |
U |
| Tap Size: |
7/16-14 |
| Minimum Full Thread Depth: |
0.5 |
| Installation Tool P/N: |
500-3 |
