Description

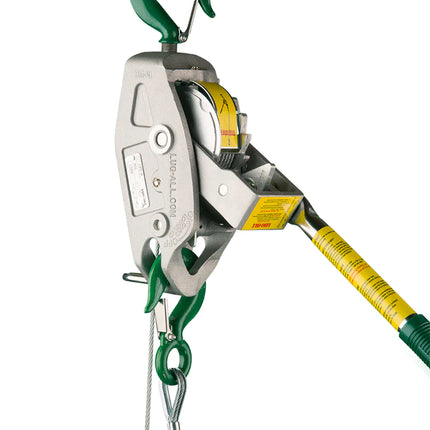

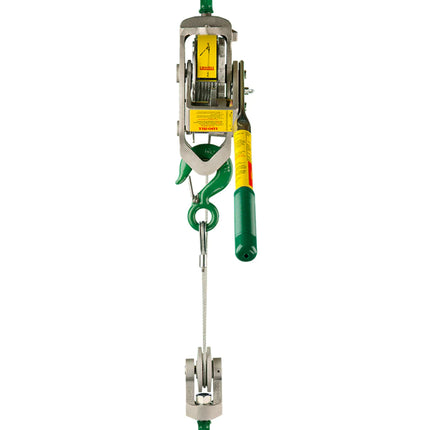

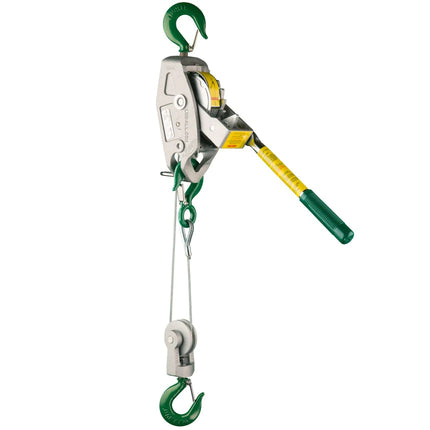

The Lug-All model 125-R is an industrial-grade 3/4-ton cable come along ratchet winch hoist featuring double or single line lift capabilities and rapid lowering, which allows the hoist to lower 4 times faster than other models. When used as a single line hoist, this model has 25 feet of cable and a 750-pound capacity. As a double line hoist, this model has 12 feet 6 inches of cable and a 1,500-pound capacity. All Lug-All cable hoists are made in the USA using 7x19 aircraft cable and are designed with an aluminum alloy main frame with open construction for easy cleaning and maintenance. Lug-All cable hoists also include a handle that is designed to bend at 125 to 150 percent of the rated capacity, protecting the user and equipment.
Specs
Part Number |
125-R |
Capacity |
3/4 Ton |
Net Weight |
8 1/2 LBS |
Double Line Capacity |
1500 LBS |
Double Line Lift |
12 FT 6 IN |
Single Line Capacity |
750 LBS |
Single Line Lift |
25 FT |
Cable Diameter |
5/32" |
Documents
Lug-All Operating Instructions
