Description

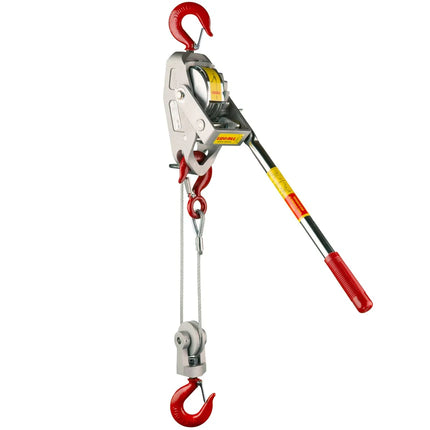

he Lug-All model 3000-30U is an industrial-grade 1-1/2-ton cable come along ratchet winch hoist featuring double or single line lift capabilities. When used as a single line hoist, this model has 15 feet of cable and a 1,500-pound capacity. As a double line hoist, this model has 7 feet 6 inches of cable and a 3,000-pound capacity. All Lug-All cable hoists are made in the USA using 7x19 aircraft cable and are designed with an aluminum alloy main frame with open construction for easy cleaning and maintenance. Lug-All cable hoists also include a handle that is designed to bend at 125 to 150 percent of the rated capacity, protecting the user and equipment.
Specs
| Part Number |
3000-30U |
| Capacity |
1 1/2 Ton |
| Net Weight |
10 LBS |
| Double Line Capacity |
3000 LBS |
| Double Line Lift |
7 FT 6IN |
| Single Line Capacity |
1500 LBS |
| Single Line Lift |
15 FT |
| Cable Diameter |
7/32" |
Documentation
Lug-All Operating Instructions
