Description

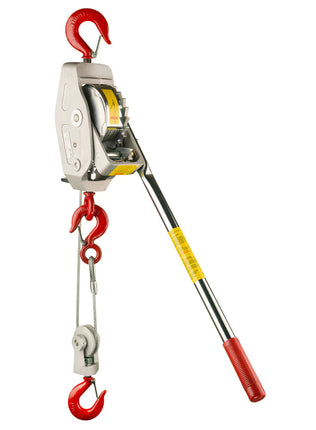

he Lug-All model 330-RMU is an industrial-grade 1-1/2-ton cable come along ratchet winch hoist featuring double or single line lift capabilities and rapid lowering, which allows the hoist to lower 4 times faster than other models. When used as a single line hoist, this model has 30 feet of cable and a 1,500-pound capacity. As a double line hoist, this model has 15 feet of cable and a 3,000-pound capacity. All Lug-All cable hoists are made in the USA using 7x19 aircraft cable and are designed with an aluminum alloy main frame with open construction for easy cleaning and maintenance. Lug-All cable hoists also include a handle that is designed to bend at 125 to 150 percent of the rated capacity, protecting the user and equipment.
Specs
| Part Number |
330-RMU |
| Capacity |
1 1/2 Ton |
| Net Weight |
13 3/4 LBS |
| Double Line Capacity |
3000 LBS |
| Double Line Lift |
15 FT |
| Single Line Capacity |
1500 LBS |
| Single Line Lift |
30 FT |
| Cable Diameter |
7/32" |
Documentation
Lug-All Operating Instructions
