Description

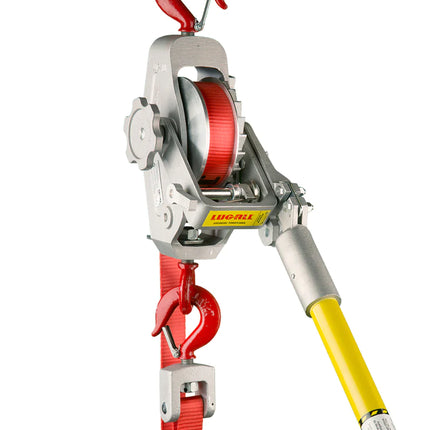

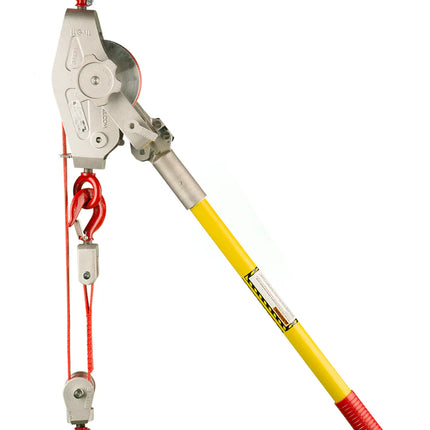

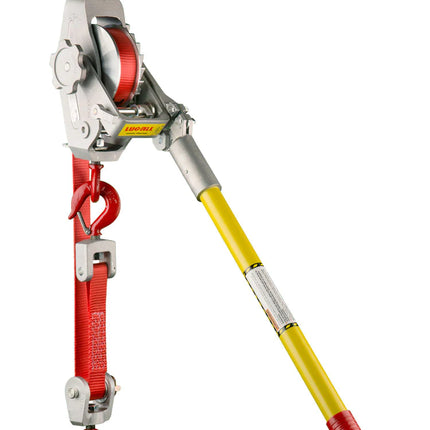

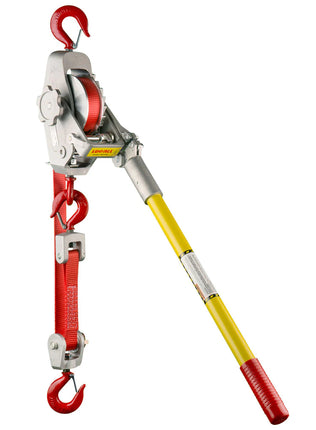

Weighing less than 13 pounds, the Lug-All model 35-U is a light-weight, industrial-grade 1-1/2-ton web strap come along ratchet winch hoist featuring double or single line lift capabilities. When used as a single line hoist, this model has 15 feet of web strap and a 1,500-pound capacity. As a double line hoist, this model has 7 feet 6 inches of web strap and a 3,000-pound capacity. All Lug-All web strap hoists are made in the USA and are designed with a double flanged drum to protect the strap. Lug-All web strap hoists also include stress links on the handle that break when the hoist becomes overloaded, protecting the user and equipment.
Specs
| Part Number |
35-U |
| Capacity |
1 1/2 Ton |
| Net Weight |
13 1/4 LBS |
| Double Line Capacity |
3000 LBS |
| Double Line Lift |
7 FT 6IN |
| Single Line Capacity |
1500 LBS |
| Single Line Lift |
15 FT |
Documentation
Lug-All Operating Instructions
