Description

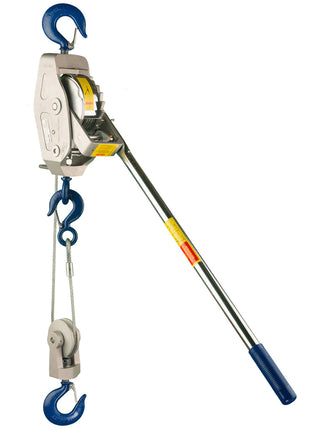

The Lug-All model 420-R is an industrial-grade 2-ton cable come along ratchet winch hoist featuring double or single line lift capabilities and rapid lowering, which allows the hoist to lower 4 times faster than other models. When used as a single line hoist, this model has 20 feet of cable and a 2,000-pound capacity. As a double line hoist, this model has 10 feet of cable and a 4,000-pound capacity. All Lug-All cable hoists are made in the USA using 7x19 aircraft cable and are designed with an aluminum alloy main frame with open construction for easy cleaning and maintenance. Lug-All cable hoists also include a handle that is designed to bend at 125 to 150 percent of the rated capacity, protecting the user and equipment.
Specs
| Part Number |
420-R |
| Capacity |
2 Ton |
| Net Weight |
15 1/2 LBS |
| Double Line Capacity |
4000 LBS |
| Double Line Lift |
10 FT |
| Single Line Capacity |
2000 LBS |
| Single Line Lift |
20 FT |
| Cable Diameter |
1/4" |
Documentation
Lug-All Operating Instructions
420-R Drawings
