Features
Water removal capacity: 76 pints/day at AHAM (26?øC, 60% RH); 125 pints/day (32?øC, 90% RH)
Powerful 1 HP motor produces a rated airflow of 235 CFM while drawing only 7.3 AMP
Built-in purge pump & drainage hose ' Automatically drains water when the tank is full
Standard refrigerant (R410A); with an operation range of 1?ø - 38?øC (33?ø - 100?øF)
Rugged, compact housing design with handle and semi-pneumatic tires
Advanced electronic control panel
25-ft long power cord and 20-ft long drain hose
ETL/CETL safety certified
Description
Reduce humidity levels at a variety of job sites with the XPOWER XD-125 Dehumidifier. Ideal for moisture/humidity control in grooming shops, water damage restoration sites, and other industrial applications. Capable of removing 125 pints a day at 90% relative humidity, the XD-125's advanced electronic control panel is programmable for a relative humidity level between 90% to 26%. An electronic display monitors your job site's current humidity and a record of working time. The unit's auto purge pump with drainage hose automatically purges when full--eliminating the task of monitoring collection tank levels. The control panel offers a manual purge button as well. Easily transported, the XD-125 is compact and features two shock absorbing semi-pneumatic wheels. Durable rugged housing and integrated design ensure years of service. ETL/CETL safety certified and features a 1 year warranty.
Specifications
MODEL
XPOWER XD-125
VOLTAGE / HERTZ
115V / 60Hz
MOTOR
1 HP / 810 W
AMPERES
7.3 A
RATED AIRFLOW
235 CFM
HOUSING
Roto-Moulded Polypropylene
PRODUCT WEIGHT
81 LBS
PRODUCT DIMENSIONS
20" x 19" x 32" (L x W x H)
BOXED WEIGHT
90 LBS
BOXED DIMENSIONS
22" x 21" x 34" (L x W x H)
POWER CORD LENGTH
25 FT
SAFETY CERTIFICATIONS
ETL / CETL
Features
Water removal capacity: 165 pints/day at AHAM (80?øF, 60% RH); 280 Pints/Day at Saturation (90?øF, 90% RH)
LGR performance with operating range between 33?øF ' 105?øF (0.6?øC ' 40.6?øC)
Optimal dehumidification process with low efficient 10.2 Amps draw
476 CFM of warm, dry air passes through the exhaust to help optimize drying capability
Digital display monitors current humidity and operating time
Durable and rugged roto-mold housing
Convenient power cord / drainage hose compartment
Dual ducting exhaust capabilities
Telescoping handle and wheels makes this unit ultra-mobile
25 ft. power cord and 40 ft. long drain hose
Auto purge pump with drainage hose automatically purges when full: eliminating the task of monitoring collection tank levels
Automatic speed control increases or decreases the fan speed based on the relative humidity and ambient temperature levels in the space requiring dehumidification
ETL/CETL safety certified and meets OSHA safety requirements
Description
The XPOWER XD-165L Low Grain Refrigerant (LGR) Dehumidifier is the newest member of the XPOWER LGR dehumidifier line. The XD-165L LGR Dehumidifier achieves maximum humidity control and water removal efficiency. This all new 'XXL' category unit is capable of removing up to 165 Pints per day @ AHAM (80?øF, 60% RH) and 280 pints per day at full saturation (90?øF, 90% RH). The XD-165L LGR Dehumidifier has an electronic display that assists in monitoring the temperature and humidity at the exhaust, as well as recording the total operating life of the dehumidifier. Lay flat ducting can be applied to the exhaust point of the dehumidifier with the dual ducting ring that is included on the unit to transport warm/dry air to where it is needed. It is easily done by hand without any additional tools. The XPOWER XD-165L LGR Dehumidifier also features an auto purge condensate pump, superior compared to industry competitors, that is capable of purging collected moisture through the provided 40' drainage hose. Weighing 121 LBS with rugged wheels and telescoping handle, the ultra-mobile XD-165L gives you class leading LGR performance. Roto-molded Polyethylene Plastic provides a durable housing that is capable of enduring the most rugged restoration jobsites.
Specifications
VOLTS / CYCLE
115 V
WATER REMOVAL CAPACITY
165 Pints / Day at AHAM (80?øF / 60% RH)
AMP
10.2A
RATED AIRFLOW
476CFM
SPEEDS
Automatic Speed Control
UNIT WEIGHT (LBS)
121.3 lbs
UNIT DIMENSIONS (L X W X H)
22" x 22.4" x 29.8"
BOX WEIGHT (LBS)
130.1 lbs
BOX DIMENSIONS (L X W X H)
24.5" x 26.1" x 32.2"
CORD LENGTH
25 ft
DRAIN HOSE LENGTH
40 ft
HOUSING
Roto Molded Polyethylene
STACKABLE
Yes, 1
SAFETY CERTIFICATIONS
ETL / CETL
WARRANTY
1 Year Limited
UPC
848025053614
Features
Auto purge pump with drainage hose automatically purges when full: eliminating the task of monitoring collection tank levels
Water removal capacity: 85 pints/day at AHAM (80?øF, 60% RH); 145 Pints/Day at Saturation (90?øF, 90% RH)
LGR performance with operating range between 33?øF ' 105?øF (0.6?øC ' 40.6?øC)
180 CFM maximum airflow capacity with low 6.7 Amps power draw
Dual intake technology and stackable up to 3 units for easy storage
Digital display monitors current humidity and operating time
25 ft. power cord and 40 ft. long drain hose
Durable and rugged roto-mold housing
ETL/CETL safety certified and meets OSHA safety requirements
Description
Achieve maximum humidity control in an ultra-space saving design with the XPOWER XD-85L. Capable of removing up to 85 pints a day at AHAM, this LGR dehumidifier features patent pending 'Dual Intake Technology' which boosts efficiency and performance in a wide range of operating conditions. Designed to maximize storage space, this compact unit stacks up to 3 units high and features a molded handle grip points on all four sides. An electronic display monitors your job site's current humidity and records operating time. The XD-85L features an auto purge pump with 40' drainage hose that automatically purges when full'eliminating the task of monitoring collection tank levels. Weighing only 65 pounds, the easily transportable XD-85L gives you the ultimate LGR performance in a size that fits in crawl spaces and other tight areas. Ruggedly built for commercial use, the XD-85L excels in even the toughest restoration and remediation job sites.
Specifications
VOLTS / CYCLE
115V / 60 Hz
WATER REMOVAL CAPACITY
85 Pints/ Day at AHAM (80?øF, 60% RH)
AMP
6.7 A
RATED AIRFLOW
180 CFM
SPEEDS
Automatic Speed Control
UNIT WEIGHT (LBS)
65 lb
UNIT DIMENSIONS (L X W X H)
13.1' x 19.2' x 21.5'
BOX WEIGHT (LBS)
72.8 lb
BOX DIMENSIONS (L X W X H)
14.8' x 21.7' x 25.7'
CORD LENGTH
25 ft
DRAIN HOSE LENGTH
40 ft
HOUSING
ABS
STACKABLE
Yes
SAFETY CERTIFICATIONS
ETL / CETL
WARRANTY
1 Year Limited
UPC
848025053058
What's in the box
PDS-12 Wall Cavity Dryer
100 Ft of Tubing
12 Hole Brass Diffuser
Owner's Manual
5-Year Warranty on Housing
2-Year Warranty on Labor
1-Year Warranty on Parts
Features
Pressurized heated airflow for optimal wall cavity drying - dry inside of walls, behind cabinets etc.
160 CFM rated airflow
1 roll of 100-ft tubing
Quick-release nozzles for easy setup and takedown
Quiet in action with adjustable speed control
1 PSI pressure release valve
Built-In Cord Wrap
Easy-Grip Handle
Lightweight & Compact
Strong Return-On-Investment
Description
The PDS-12 will quickly and QUIETLY deliver dry heated air that is perfect for drying under sinks, behind cabinets and permanent furniture. The lightweight PDS-12 features a convenient wrap around cord design and quick release nozzles for quick setup and tear down. COME DRY WITH US!
Expand your reach with the next generation of compact cavity drying equipment. XPOWER's Pressurized Drying System with heat will quietly speed up drying times with ease.
The variable speed control provides the ability to dial in the exact airflow needed for different drying applications. On low speed it offers a very quiet operation, so it's a no brainer for occupied dries.
The included 100 feet tubing makes it easier than ever to dry in even the toughest-to-reach areas. You can use it to dry under sinks, behind toe fixes, cabinets and other fixed furniture.
For in-wall drying, just attach the tubes to the nozzles, drill a few half-inch holes in the wall, insert tube ends and switch on airflow. The quick-release vinyl hoses effortlessly come out of the 12-hole diffuser, making setup and takedown easy and stress-free.
Once one job is done, wrap the cord around the handle to keep everything neat and tidy for the next job. The moulded handle makes it super easy to pick up this lightweight 12-pounder and transport it to the next job site.
Specifications
MODEL
Viking PDS-12
MOTOR
4 HP
VOLTS / CYCLE
115 V
AMP
12.0 A
RATED AIRFLOW
160 CFM
SPEEDS
Variable Speed
CORD LENGTH
10 Ft.
STACKABLE
No
TUBING
3/8 id 1/2 od Black (100 Ft.)
OPERATING TEMPERATURE
Up to 100F
UNIT WEIGHT (LBS)
18.3 LB
UNIT DIMENSIONS (L X W X H)
20.6" x 8.1" x 9.7"
BOX WEIGHT (LBS)
22.00 LB
BOX DIMENSIONS (L X W X H)
18.5" x 13.0" x 11.8"
HOUSING
ABS
SAFETY CERTIFICATIONS
ETL/CETL
THERMAL PROTECTION
No
UPC
848025012512
What's in the box
PDS-21 Wall Cavity Dryer
100 Ft of Tubing
12 Hole Brass Diffuser
Owner's Manual
5-Year Warranty on Housing
2-Year Warranty on Labor
1-Year Warranty on Parts
Features
HEATED pressurized airflow
92 CFM rated airflow
Heated temperatures up to 95?øC
Low 9 amp draw
Airtight & rotomolded polyethylene housing
2-stage tangential by-pass vacuum motor
Self-healing thermal protection safety feature
Lightweight housing & easy-grip handle
Stackable for smart storage
Built-in cord wrap
Includes 1 roll of 100-feet tubing
Description
Unlike other in-wall drying equipment, the revolutionary PDS-21 has been engineered without an air mover motor, squirrel cage or other attachments. With this all-in-one containment, it's less frustrating than ever before to dry in all hard-to-reach spots.
The unit's airtight housing contains a specially designed two-stage tangential by-pass vacuum motor that pressurizes and heats air (up to 95?øC) prior to discharging it.
Use the heated pressurized airflow to efficiently dry under sinks, behind cabinets and fixed furniture. The 2.6 horsepower motor produces an airflow of 92 cubic feet per minute while drawing only nine amperes of electricity.
For in-wall drying, simply attach the tubes to the air nozzles on the front of the unit, drill a few half-inch holes in the wall, insert tube ends and switch on airflow. A thermal protection switch with auto-reset has been installed to protect the unit from overheating.
The offered flexibility and beneficial features of the PDS-21 make it a next-level piece of equipment for any restoration contractor.
Specifications
MODEL
Viking PDS-21
MOTOR
2-Stage Tangential By-Pass
VOLTS / CYCLE
115 V
AMP
9.0 A
RATED AIRFLOW
92 CFM
SPEEDS
1
CORD LENGTH
25 ft
STACKABLE
Yes
TUBING
3/8 id 1/2 od Black (200 Ft.)
OPERATING TEMPERATURE
Up to 205F
UNIT WEIGHT (LBS)
19 LB
UNIT DIMENSIONS (L X W X H)
20.5" x 16.7" x 18.5"
BOX WEIGHT (LBS)
35.6 LB
BOX DIMENSIONS (L X W X H)
21" x 19" x 22"
HOUSING
Roto Molded Polyethylene
SAFETY CERTIFICATIONS
UL Approved Motor
THERMAL PROTECTION
Thermal Protection Switch + Auto Reset
UPC
848025012529

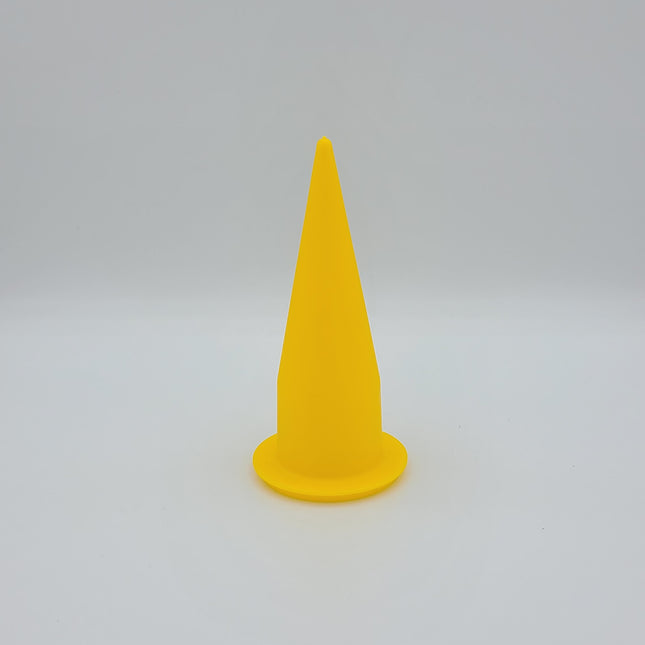

This yellow cone nozzle is designed to fit securely on sausage guns to deliver maximum efficiency with minimal effort. Its specialized shape ensures accurate product placement and a tight seal, giving you the best possible results.
Manufactured to meet the higher demands of industrial applications. Extra heavy, extra length shank with heavy supporting bevel. Character identification and size, three thumb grooves.
For use in marking plastic molds, rubber molds, thin metal patterns, forging dies, etc. Produces a reversed impression in the mold which makes a raised letter on the molded product. Character identification and size, three thumb grooves.
Manufactured to meet the higher demands of industrial applications. Extra heavy, extra length shank with heavy supporting bevel. Character identification and size, three thumb grooves.
For use in marking plastic molds, rubber molds, thin metal patterns, forging dies, etc. Produces a reversed impression in the mold which makes a raised letter on the molded product. Character identification and size, three thumb grooves.
Manufactured to meet the higher demands of industrial applications. Extra heavy, extra length shank with heavy supporting bevel. Character identification and size, three thumb grooves.
For use in marking plastic molds, rubber molds, thin metal patterns, forging dies, etc. Produces a reversed impression in the mold which makes a raised letter on the molded product. Character identification and size, three thumb grooves.
Young Bros. offers symbols, fractions, double digits, inspection stamps and other unique markers which can be ordered individually or in sets. Some items may require a special purchase order.
Manufactured to meet the higher demands of industrial applications. Extra heavy, extra length shank with heavy supporting bevel. Character identification and size, three thumb grooves.
For use in marking plastic molds, rubber molds, thin metal patterns, forging dies, etc. Produces a reversed impression in the mold which makes a raised letter on the molded product. Character identification and size, three thumb grooves.
Young Brothers' 01117 Stamp Holder is designed for superior quality and precision. Made of stainless steel, it provides an exceptional grip for an accurate and consistent stamping experience. Ideal for use in workshops and for industrial projects, it stands up to heavy-duty use.
Adjustable and interlocking. Gothic-style characters for horizontal composition. Stencils adjust quickly for perfect character alignment, spacing and clean, bold characters. Use for marking shipments, making signs and other identification.
15 pieces 1 2 3 4 5 6 7 8 9 01 beginner, 1 plain ender, 1 period, 1 dash
Manufactured to meet the higher demands of industrial applications. Extra heavy, extra length shank with heavy supporting bevel. Character identification and size, three thumb grooves.
For use in marking plastic molds, rubber molds, thin metal patterns, forging dies, etc. Produces a reversed impression in the mold which makes a raised letter on the molded product. Character identification and size, three thumb grooves.
Adjustable and interlocking. Gothic-style characters for horizontal composition. Stencils adjust quickly for perfect character alignment, spacing and clean, bold characters. Use for marking shipments, making signs and other identification.
33 pieces A B C D E F G H I J K L M N O P Q R S T U V W X Y Z &1 beginner, 1 period ender, 1 spacer, 1 period, 1 comma, 1 dash
